ARM7TDMI Low Power MCU Microcontroller Unit ADC Flash ADUC7061BCPZ32-RL

ARM7TDMI Low Power MCU Microcontroller Unit ADC Flash ADUC7061BCPZ32-RL
ARM7TDMI Low Power MCU Microcontroller Unit ADC Flash ADUC7061BCPZ32-RL ARM7TDMI Low Power MCU Microcontroller Unit ADC Flash ADUC7061BCPZ32-RL ARM7TDMI Low Power MCU Microcontroller Unit ADC Flash ADUC7061BCPZ32-RL

Large Image :  ARM7TDMI Low Power MCU Microcontroller Unit ADC Flash ADUC7061BCPZ32-RL

Product Details:
Place of Origin: CN
Brand Name: ADI
Certification: ROSH
Model Number: ADUC7061BCPZ32-RL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CONSULT WITH
Packaging Details: T/R
Delivery Time: 5-8DAY
Payment Terms: T/T,Western Union
Supply Ability: 10000
Contact Now Chat Now

ARM7TDMI Low Power MCU Microcontroller Unit ADC Flash ADUC7061BCPZ32-RL

Description
Product Category:: ARM Microcontrollers - MCU Series:: ADUC7061
Package / Case:: LFCSP-32 Core:: ARM7TDMI
Program Memory Size:: 32 KB Data Bus Width:: 32 Bit/16 Bit
ADC Resolution:: 24 Bit Maximum Clock Frequency:: 10.24 MHz
Highlight:

ARM7TDMI MCU Microcontroller Unit

,

MCU Microcontroller Unit ADC Flash

,

ADUC7061BCPZ32-RL

ARM7TDMI Core Low-power Dual-channel ADC Flash/EE Memory Precision Analog Microcontroller Chip ADUC7061BCPZ32-RL
Key Specifications
Product Category ARM Microcontrollers - MCU
Series ADUC7061
Package / Case LFCSP-32
Core ARM7TDMI
Program Memory Size 32 kB
Data Bus Width 32 bit/16 bit
ADC Resolution 24 bit
Maximum Clock Frequency 10.24 MHz
Product Features
  • Dual 24-bit ADCs with single-ended and differential inputs
  • Programmable ADC output rate (4 Hz to 8 kHz) and digital filters
  • Built-in system calibration and low power operation mode
  • ARM7TDMI core, 16-/32-bit RISC architecture with JTAG debug support
  • 32 kB Flash/EE memory and 4 kB SRAM
  • Multiple communication interfaces: SPI, UART, I2C
  • On-chip peripherals including timers, PWM, and GPIO
  • Operating voltage: 2.375V to 2.625V
  • Industrial temperature range: -40°C to +125°C
Product Description

The ADuC7061 is a fully integrated, 8 kSPS, 24-bit data acquisition system combining high-performance multichannel sigma-delta ADCs, an ARM7TDMI MCU, and Flash/EE memory on a single chip. The device features a primary ADC with two differential pairs or four single-ended channels and an auxiliary ADC with up to seven channels, operating in single-ended or differential input modes.

The microcontroller core is an ARM7TDMI, 16-bit/32-bit RISC machine offering up to 10 MIPS peak performance. The ADuC7061 contains four timers, including a wake-up timer and watchdog timer, plus a 16-bit PWM with six output channels. An advanced vectored interrupt controller supports up to 16 nested interrupt levels.

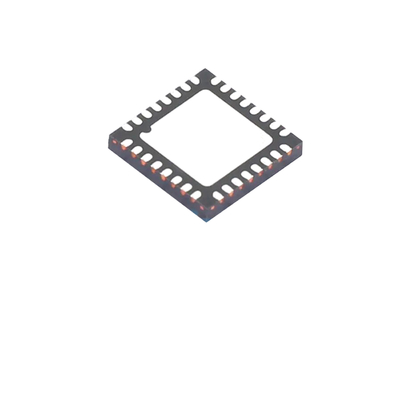

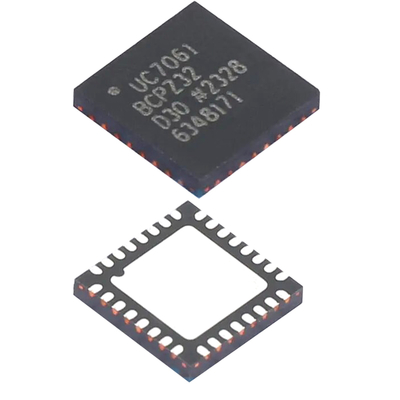

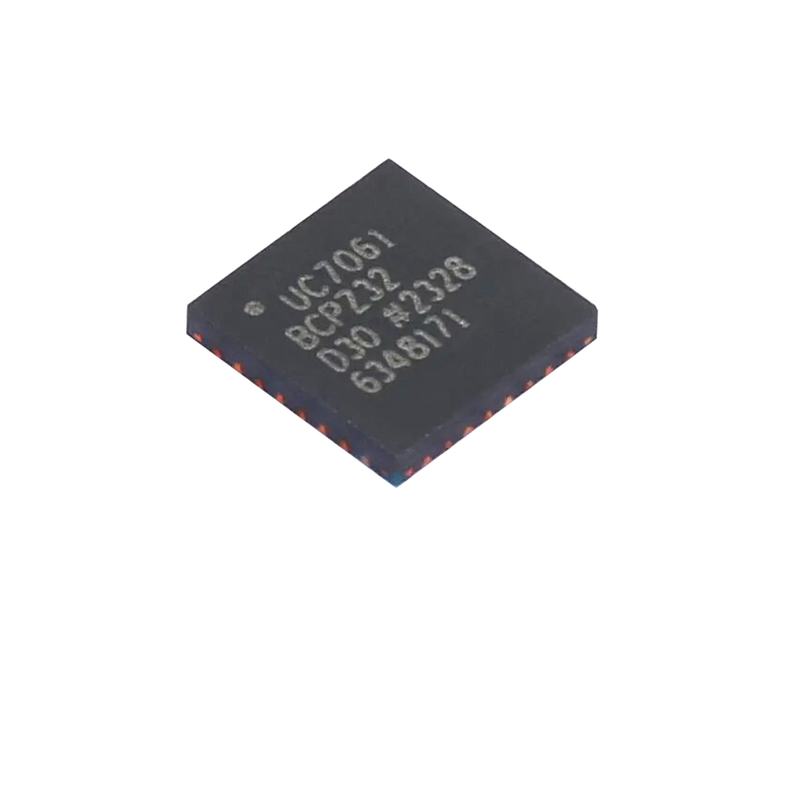

Product Images
ARM7TDMI Low Power MCU Microcontroller Unit ADC Flash ADUC7061BCPZ32-RL 0 ARM7TDMI Low Power MCU Microcontroller Unit ADC Flash ADUC7061BCPZ32-RL 1 ARM7TDMI Low Power MCU Microcontroller Unit ADC Flash ADUC7061BCPZ32-RL 2
Packaging Information

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Delivery times vary based on order quantity and season. Small batches typically ship within 7-15 days, while larger orders may require approximately 30 days.

What are your payment terms?

Standard terms: 30% deposit with 70% balance paid via T/T before shipment.

What are the shipping options?

We offer sea, air, and express shipping (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.

Tag:

microcontroller chip,

mcu flash memory,

MCU Microcontroller
