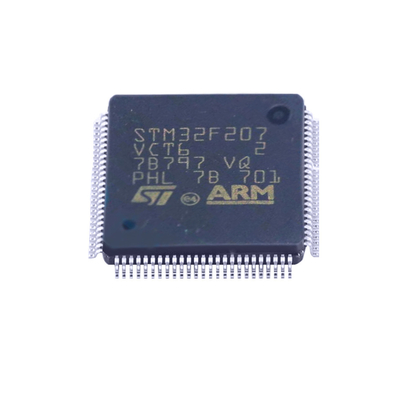

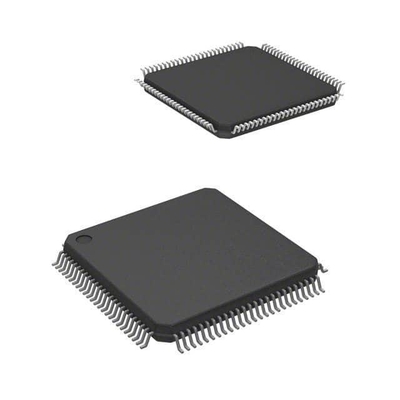

ARM Cortex M3 Mcu Micro Control Unit Processor Chip STM32F207VCT6

• Core: Arm® 32-bit Cortex®-M3 CPU (up to 120 MHz) with ART Accelerator™ for 0 wait state execution from Flash memory
• Memory: Up to 1 MB Flash, 512B OTP memory, 128+4KB SRAM, flexible static memory controller supporting Compact Flash, SRAM, PSRAM, NOR and NAND memory
• Clock & Power: 1.8V to 3.6V operation, 4-26 MHz crystal oscillator, internal 16 MHz RC, 32 kHz oscillator with RTC
• Low Power Modes: Sleep, Stop and Standby modes with VBAT support for RTC and backup registers
• Analog: Three 12-bit ADCs (up to 6 MSPS), two 12-bit DACs
• Connectivity: USB 2.0 FS/HS, Ethernet MAC, 2x CAN, multiple USART/UART/SPI/I2C interfaces
• Timers: Up to 17 timers including 12x 16-bit and 2x 32-bit timers
• I/O: Up to 140 I/O ports with 5V tolerance
• Debug: SWD, JTAG, and Cortex®-M3 ETM™
• Security: 96-bit unique ID

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to requirements.
