Clock Buffer Driver MPU IC 19 Output 400MHz Distributor Chip 9ZX21901BKLFT

I'm Online Chat Now

Clock Buffer Driver MPU IC 19 Output 400MHz Distributor Chip 9ZX21901BKLFT

Clock Buffer Driver MPU IC 19 Output 400MHz Distributor Chip 9ZX21901BKLFT
Clock Buffer Driver MPU IC 19 Output 400MHz Distributor Chip 9ZX21901BKLFT Clock Buffer Driver MPU IC 19 Output 400MHz Distributor Chip 9ZX21901BKLFT Clock Buffer Driver MPU IC 19 Output 400MHz Distributor Chip 9ZX21901BKLFT

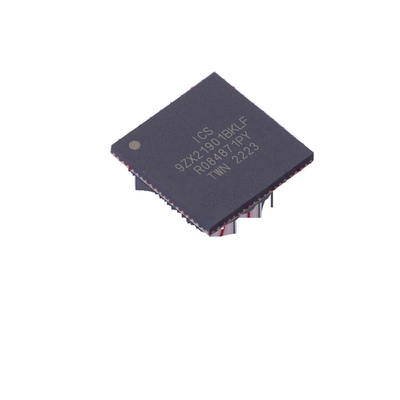

Large Image :  Clock Buffer Driver MPU IC 19 Output 400MHz Distributor Chip 9ZX21901BKLFT

Product Details:
Place of Origin: TAIWAN
Brand Name: RENESAS/IDT
Certification: ROSH
Model Number: 9ZX21901BKLFT
Document: 838CDC9435C254A0925A67BA02D...45.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8day
Payment Terms: T/T,Western Union
Supply Ability: 10000
Contact Now Chat Now

Clock Buffer Driver MPU IC 19 Output 400MHz Distributor Chip 9ZX21901BKLFT

Description
Product Category:: Clock Buffer Number Of Outputs:: 19 Output
Max Output Freq:: 400 MHz Output Type:: HCSL
Package / Case:: VFQFPN-72 Series:: 9ZX21901
Operating Supply Current:: 407 MA Moisture Sensitive:: Yes
Highlight:

MPU IC 19 Output

,

Distributor Chip 400MHz

,

9ZX21901BKLFT

Clock Buffer Driver Distributor Chip 9ZX21901BKLFT
Product Attributes
Attribute Value
Product Category: Clock Buffer
Number of Outputs: 19 Output
Max Output Freq: 400 MHz
Output Type: HCSL
Package / Case: VFQFPN-72
Series: 9ZX21901
Operating Supply Current: 407 mA
Moisture Sensitive: Yes
Propagation Delay - Max: 4.5 ns
Maximum Input Frequency: 400 MHz
Supply Voltage Range: 3.135 V - 3.465 V
Operating Temperature: 0°C to +70°C
Brand: Renesas Electronics
Dimensions: 10mm × 10mm × 1mm
Mounting Style: SMD/SMT
Packaging Options: Reel, Cut Tape, MouseReel
Factory Pack Quantity: 2500
Product Description

19-Output Differential Zbuffer for PCIe Gen2/3 and QPI

The 9ZX21901 is a version of the Intel DB1900Z Differential Buffer with an adjustable external feedback path allowing the user to eliminate trace delays from their design. It is suitable for PCIe Gen3 or QPI applications. The part is backwards compatible to PCIe Gen1 and Gen2. The device maintains low drift for critical QPI applications. In bypass mode, the IDT9ZX21901 can provide outputs up to 400MHz.

Features/Benefits
  • External feedback path; Adjustable input-to-output delay
  • 9 Selectable SMBus addresses; Multiple devices can share same SMBus segment
  • 8 dedicated OE# pins; Hardware control of outputs
  • PLL or bypass mode; PLL can dejitter incoming clock
  • Selectable PLL BW minimizes jitter peaking in downstream PLL's
  • Spread spectrum compatible; Tracks spreading input clock for EMI reduction
  • SMBus Interface; Unused outputs can be disabled
  • 100MHz & 133.33MHz PLL mode; Legacy QPI support
  • Undriven differential outputs in Power Down mode for maximum power savings
Key Specifications
  • Cycle-to-cycle jitter: < 50ps
  • Output-to-output skew: <65ps
  • Input-to-output delay: User adjustable
  • Input-to-output delay variation: <50ps
  • Phase jitter: PCIe Gen3 < 1ps rms
  • Phase jitter: QPI 9.6GB/s < 0.2ps rms
Recommended Application

19 output PCIe Gen3/QPI buffer with adjustable feedback for Romley platforms

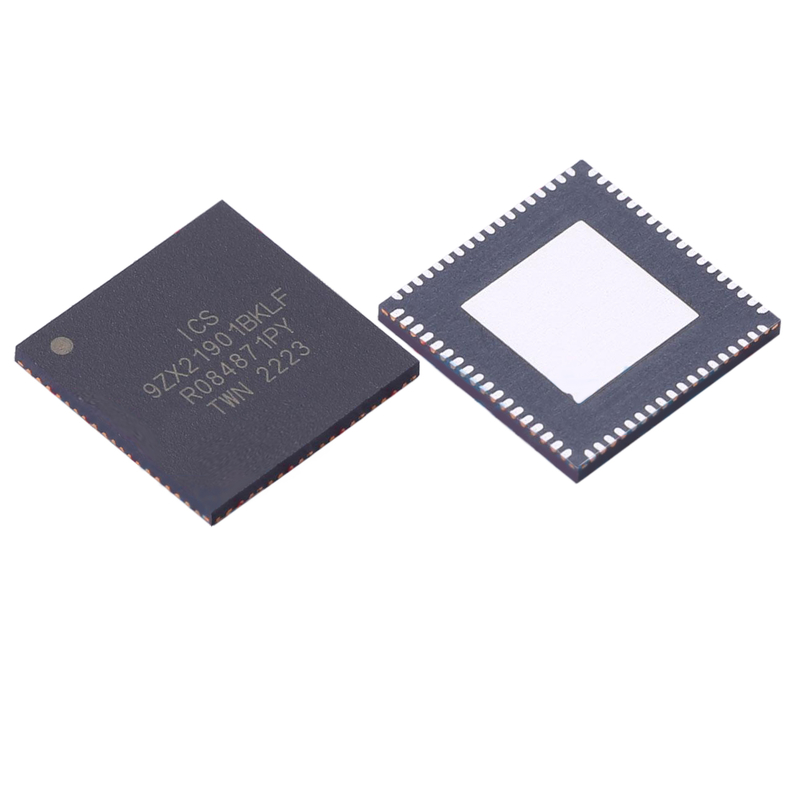

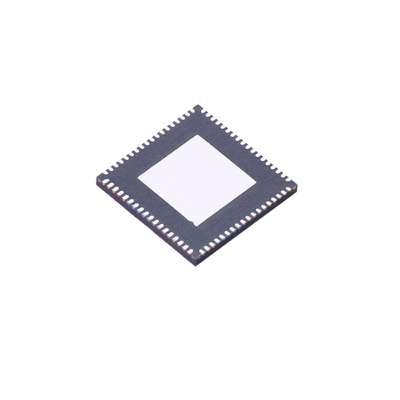

Product Images
Packaging and Transportation

According to the standard export packaging. Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.

Frequently Asked Questions
How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.

What is your delivery time?

This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.

What are your payment terms?

Factory price, 30% deposit, 70%T/T payment before shipment.

What is the mode of transportation?

It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.

How do you help our business establish a long-term and good relationship?

We maintain good quality and competitive prices to ensure that our customers benefit. We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.
