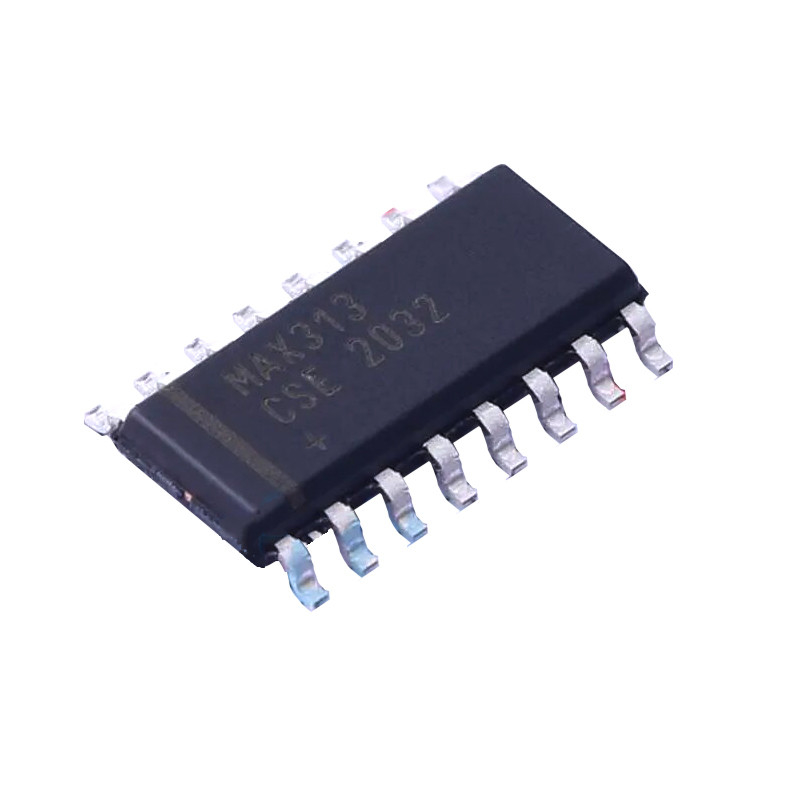

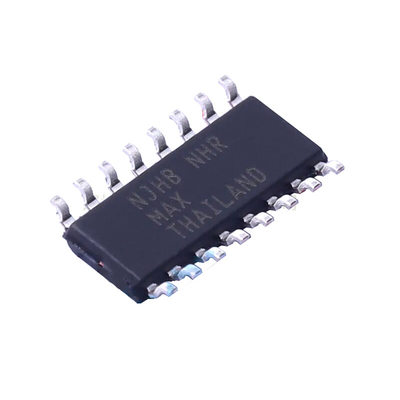

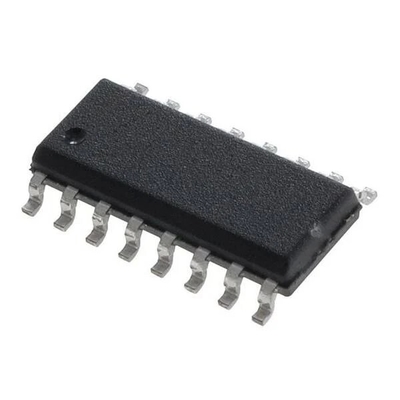

CMOS 16 Channel Multiplexer Chip MAX313CSE+T Analog Switch MAX313

CMOS 16 Channel Multiplexer Chip MAX313CSE+T Analog Switch MAX313
CMOS 16 Channel Multiplexer Chip MAX313CSE+T Analog Switch MAX313 CMOS 16 Channel Multiplexer Chip MAX313CSE+T Analog Switch MAX313 CMOS 16 Channel Multiplexer Chip MAX313CSE+T Analog Switch MAX313

Large Image :  CMOS 16 Channel Multiplexer Chip MAX313CSE+T Analog Switch MAX313

Product Details:
Place of Origin: Thailand
Brand Name: ADI/MAXIM
Certification: Rosh
Model Number: MAX313CSE+T
Document: C2976357__MAX313CSE+T__MAXI...IM.PDF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: CONSULT WITH
Packaging Details: T/R
Delivery Time: 5-8day
Payment Terms: T/T,Western Union
Supply Ability: 1100
Contact Now Chat Now

CMOS 16 Channel Multiplexer Chip MAX313CSE+T Analog Switch MAX313

Description
Features: Low Power Consumption, High SNR, Low DNL, Low INL Sampling Rate: Up To 1 GSPS
Output Channels: 1, 2, 4, 8, 16 Function: Analog-to-Digital Converter/Digital-to-Analog Converter
Resolution: 8-bit, 10-bit, 12-bit, 16-bit, 24-bit Power Supply: 3.3V, 5V
Interface: SPI, I2C, Parallel, Serial Conversion Time: 1μs, 10μs, 100μs, 1ms, 10ms
Input Voltage Range: 0-5V, -5V-5V, -10V-10V Input Channels: 1, 2, 4, 8, 16
Operating Temperature Range: -40°C To 85°C Reference Voltage: Internal, External
Package Type: DIP, SOP, QFN, BGA Output Voltage Range: 0-5V, -5V-5V, -10V-10V
Accuracy: ±1LSB, ±0.5LSB, ±0.1LSB
Highlight:

CMOS Multiplexer Chip

,

16 channel Multiplexer Chip

,

MAX313CSE+T

CMOS Analog Switch MAX313 Multiplexer Chip MAX313CSE+T
Key Features
  • Low power consumption with high SNR performance
  • Low DNL and INL for precise signal processing
  • Flexible configuration with 4 x SPST channels
  • Low on-resistance (6.5Ω typical, 10Ω max)
  • Excellent channel-to-channel matching (1.5Ω max)
  • High ESD protection (>2000V per Method 3015.7)
  • Single supply (+4.5V to +30V) or dual supply (±4.5V to ±20V) operation
  • Low leakage current (2.5nA at +85°C)
Technical Specifications
Attribute Value
Package Type SOIC-Narrow-16
Channel Count 4 Channel
On-Resistance 10Ω max
Power Supply Single: +4.5V to +30V
Dual: ±4.5V to ±20V
Operating Temperature 0°C to +70°C
Switching Time Turn-on: 225ns max
Turn-off: 185ns max
Power Dissipation 696 mW
Switch Current 100 mA
Product Description

The MAX313 from Analog Devices/Maxim Integrated is a high-performance CMOS analog switch featuring low on-resistance and excellent channel matching. This 4-channel SPST (Single Pole Single Throw) switch offers bidirectional signal handling with identical performance in both directions.

Key Advantages
  • Pin compatible with DG411/DG412/DG413 series
  • Guarded flatness of on-resistance (2Ω max)
  • Excellent crosstalk rejection (>96dB at 20kHz)
  • Rail-to-rail signal handling capability
  • Available in SOIC-16 package with reel packaging options
Applications
  • Test and measurement equipment
  • Communication systems and PBX/PABX
  • Audio signal routing and avionics
  • Sample-and-hold circuits
  • Data acquisition systems
CMOS 16 Channel Multiplexer Chip MAX313CSE+T Analog Switch MAX313 0 CMOS 16 Channel Multiplexer Chip MAX313CSE+T Analog Switch MAX313 1
Packaging Information

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to requirements.

Ordering & Support
How to obtain pricing?

Quotations are typically provided within 24 hours of inquiry receipt (excluding weekends/holidays). For urgent requests, please contact us directly.

What is your delivery time?

Small batches: 7-15 days. Large quantities: approximately 30 days. Exact timing depends on order volume and season.

Payment terms?

Factory pricing with 30% deposit and 70% balance via T/T before shipment.

Shipping options?

Available via sea, air, or express carriers (EMS, UPS, DHL, TNT, FEDEX). Please confirm method before ordering.
