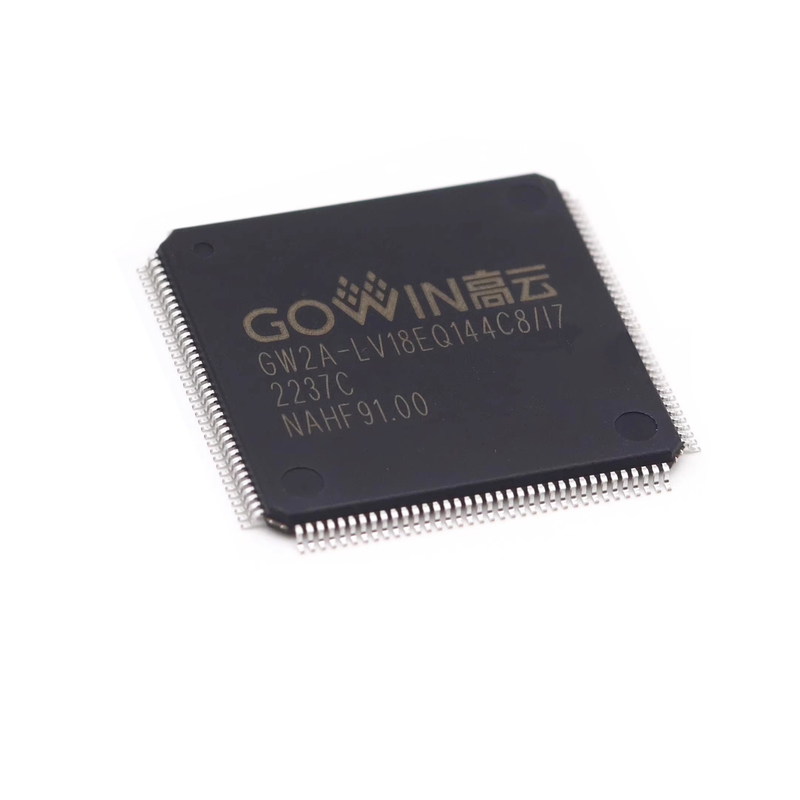

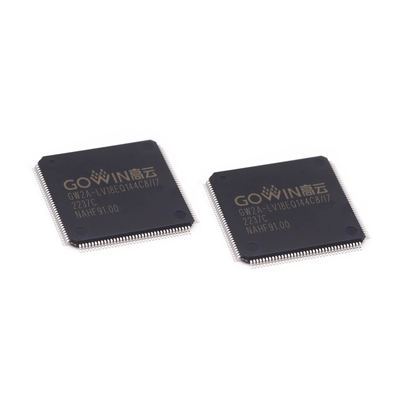

CPLD FPGA Field Programmable Gate Array Single Chip Microcomputer GW2A-LV18EQ144C8/I7

The GW2A FPGA of Gowin Semiconductor belongs to the Chenxi family 2 series, with abundant internal resources and features high-performance DSP resources, high-speed LVDS interfaces and abundant BSRAM memory resources. These embedded resources, combined with a streamlined FPGA architecture and 55nm process, make the GW2A FPGA applicable in high-speed and low-cost application scenarios.

Gao Yun Semiconductor provides a new generation of FPGA hardware development environment independently developed for the market, supporting the GW2A series FPGA products, capable of completing FPGA synthesis, layout, routing, and data generation including file streaming and downloading.

• Low power consumption - 55nm SRAM process - Nuclear voltage: 1.0V - supports dynamic clock on/off
• Supports multiple I/O level standards - LVCMOS33/25/18/15/12; LVTTL33, SSTL33/25/18 I, II, SSTL15; HSTL18 I, II, HSTL15 I; PCI, LVDS25, RSDS, LVDS25E, BLVDSE, MLVDSE, LVPECLE, RSDSE
• Provides input signal hysteresis options and output signal drive current options
• Offers an independent Bus Keeper, pull-up/pull-down resistor and Open Drain output options
• Supports hot plugging
• GPIO supports MIPI D-PHY RX/TX - supports MIPI CSI-2 and MIPI DSI
• Interface between RX and TX devices has a single transmission rate channel up to 1.2Gbps
• Two IO types available: TLVDS, ELVDS
• High-performance DSP module - supports 9x9, 18x18, 36x36bit multiplication operations and 54bit accumulator
• Supports cascading of multiple multipliers and register pipeline functions
• Pre-addition operations implement filter functions
• Supports bucket-shift registers
• Rich basic logic unit - 4 input LUT(LUT4) - supports shift registers and distributed memory
• Supports multiple modes of static random access memory - dual-port, single-port and pseudo-dual-port patterns
• Flexible PLL resources - implementing clock multiplier, division and phase shift
• Global clock network resources
• Self-programming configuration mode - supports JTAG configuration mode
• Supports 4 GowinCONFIG configuration modes
• Supports direct programming in JTAG and SSPI modes SPI Flash
• Supports data stream file encryption and secure bit settings

• Standard export packaging
• Customers can choose from cartons, wooden cases and wooden pallets according to requirements
