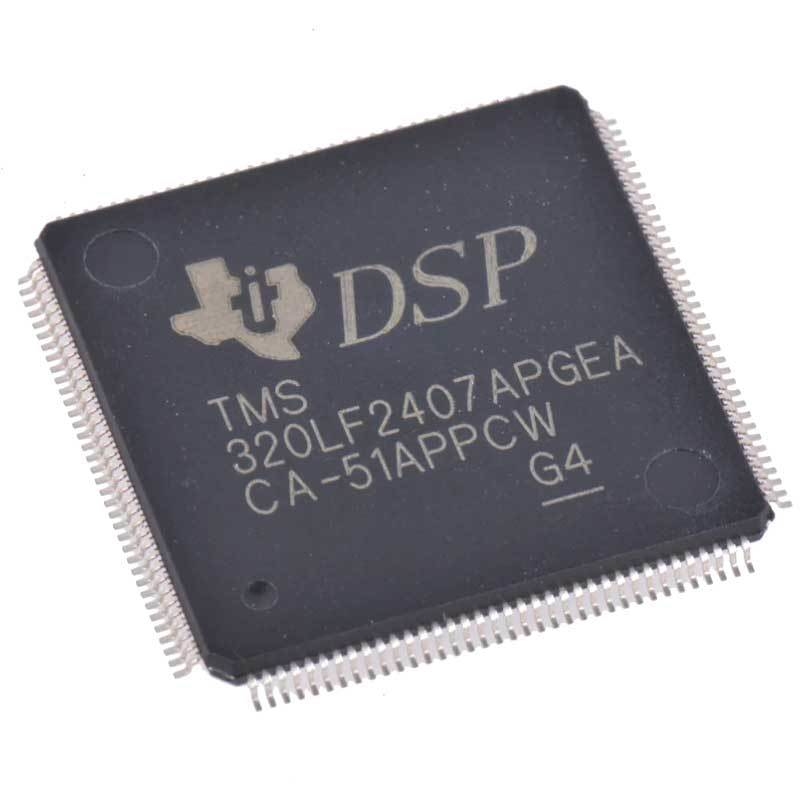

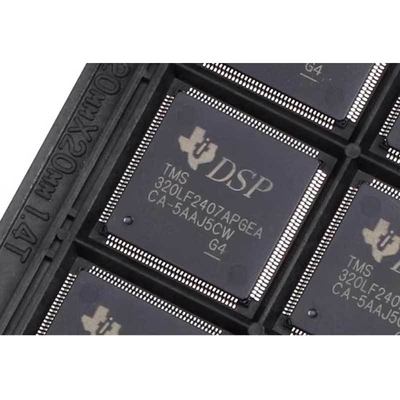

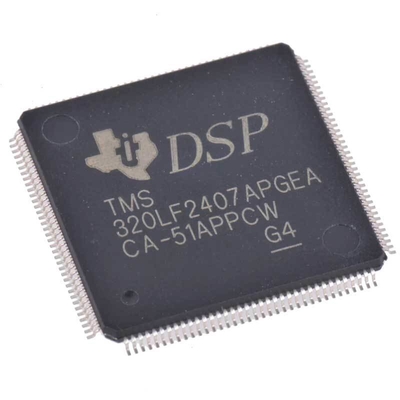

DSP Dsc Chip Controllers 16Bit With Flash TMS320LF2407APGEA

Digital Signal Processors Controllers DSP DSC 16Bit DSP with Flash TMS320LF2407APGEA

• High-Performance Static CMOS Technology: 25-ns Instruction Cycle Time (40 MHz), 40-MIPS Performance, Low-Power 3.3-V Design
• Based on TMS320C2xx DSP CPU Core: Code-Compatible With F243/F241/C242, Instruction Set and Module Compatible With F240
• Flash (LF) and ROM (LC) Device Options: LF240xA and LC240xA series available
• On-Chip Memory: Up to 32K Words x 16 Bits of Flash EEPROM (4 Sectors) or ROM, Programmable "Code-Security" Feature
• Boot ROM (LF240xA Devices) with SCI/SPI Bootloader
• Up to Two Event-Manager (EV) Modules (EVA and EVB) with multiple PWM channels and control features
• External Memory Interface (LF2407A): 192K Words x 16 Bits of Total Memory
• 10-Bit Analog-to-Digital Converter (ADC) with 8 or 16 Multiplexed Input Channels
• Controller Area Network (CAN) 2.0B Module (LF2407A, 2406A, 2403A)
• Serial Communications Interface (SCI) and 16-Bit Serial Peripheral Interface (SPI)
• Phase-Locked-Loop (PLL)-Based Clock Generation
• Up to 40 Individually Programmable, Multiplexed General-Purpose Input/Output (GPIO) Pins
• Power Management with Three Power-Down Modes
• Real-Time JTAG-Compliant Scan-Based Emulation, IEEE Standard 1149.1 (JTAG)
• Extended Temperature Options Available: -40°C to 85°C and -40°C to 125°C

According to the standard export packaging. Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
