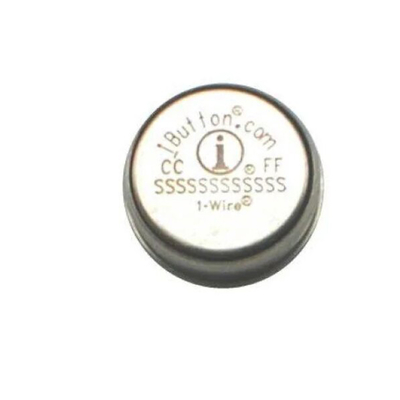

IButton 1024bit Eeprom Memory Chips Protect Data EPROM DS1972-F5+

• 1024 Bits of EEPROM Memory partitioned into four pages of 256 bits
• Individual memory pages can be permanently write protected or put in EPROM-emulation mode ("Write to 0")
• Switchpoint hysteresis and filtering to optimize performance in the presence of noise
• IEC 1000-4-2 Level 4 ESD Protection (±8kV Contact, ±15kV Air, Typical)
• Reads and writes over a wide voltage range from 2.8V to 5.25V from -40°C to +85°C
• Communicates to host with a single digital signal at 15.4kbps or 125kbps using 1-Wire protocol
• Unique factory-lasered 64-bit registration number ensures error-free device selection
• Built-in multidrop controller for 1-Wire net
• Chip-based data carrier stores digital identification and information, armored in durable stainless-steel case
• Data can be accessed while affixed to object
• Button shape is self-aligning with cup-shaped probes
• Easily affixed with self-stick adhesive backing, latched by its flange, or locked with a ring pressed onto its rim
• Presence detector acknowledges when reader first applies voltage

According to the standard export packaging. Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
