Integrates Dual Channel MCU Microcontroller Unit Precision Analog ADUCM360BCPZ128-R7

Large Image : Integrates Dual Channel MCU Microcontroller Unit Precision Analog ADUCM360BCPZ128-R7

Product Details:

Place of Origin:	KOREA
Brand Name:	ADI
Certification:	ROHS
Model Number:	ADUCM360BCPZ128-R7

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8DAY
Payment Terms:	T/T,Western Union
Supply Ability:	10000

Contact Now Chat Now

Integrates Dual Channel MCU Microcontroller Unit Precision Analog ADUCM360BCPZ128-R7

Description

Product Category::	ARM Microcontrollers - MCU	Series::	ADUCM360
Package / Case::	LFCSP-48	Core::	ARM Cortex M3
Program Memory Size::	128 KB	Data Bus Width::	32 Bit
ADC Resolution::	24 Bit	Maximum Clock Frequency::	20 MHz
Highlight:	Dual channel MCU Microcontroller Unit , MCU Microcontroller Unit Precision , ADUCM360BCPZ128-R7

MCU Integrates The Dual-channel ADC ARM Cortex-M3 Low-power Precision Analog Microcontroller Chip ADUCM360BCPZ128-R7

Product Specifications

Attribute	Value
Product Category:	ARM Microcontrollers - MCU
Series:	ADUCM360
Package / Case:	LFCSP-48
Core:	ARM Cortex M3
Program Memory Size:	128 kB
Data Bus Width:	32 bit
ADC Resolution:	24 bit
Maximum Clock Frequency:	20 MHz
Number of I/Os:	19 I/O
Data RAM Size:	8 kB
Supply Voltage Range:	1.8 V to 3.6 V
Operating Temperature:	-40°C to +125°C
Packaging:	Reel / Cut Tape / MouseReel
Brand:	Analog Devices
Factory Pack Quantity:	750

Product Features

Analog Input/Output: Dual-channel, 24-bit ADC (ADuCM360)
Programmable ADC output rate (3.5 Hz to 3.906 kHz)
50 Hz/60 Hz synchronous noise rejection
Flexible input multiplexing with selectable input channels
Two 24-bit multi-channel ADCs (ADC0 and ADC1)
6 differential or 11 single-ended input channels
Programmable gain (1 to 128)
On-chip precision voltage reference
Single 12-bit voltage output DAC
Microcontroller: ARM Cortex-M3 32-bit processor
Serial wire download and debug capability
Power efficient: 290 μA/MHz in active mode, 4 μA in power saving mode
On-chip Peripherals: UART, I2C, 2×SPI, 16-bit PWM controller, 19-pin GPIO
48-pin, 7 mm × 7 mm LFCSP package

Applications

Industrial automation and process control
Smart precision detection systems
4 mA to 20 mA loop-powered smart sensor systems
Medical equipment and patient monitoring

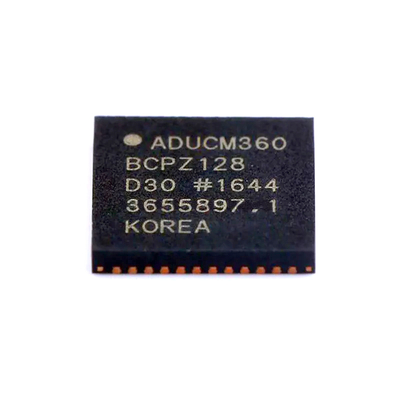

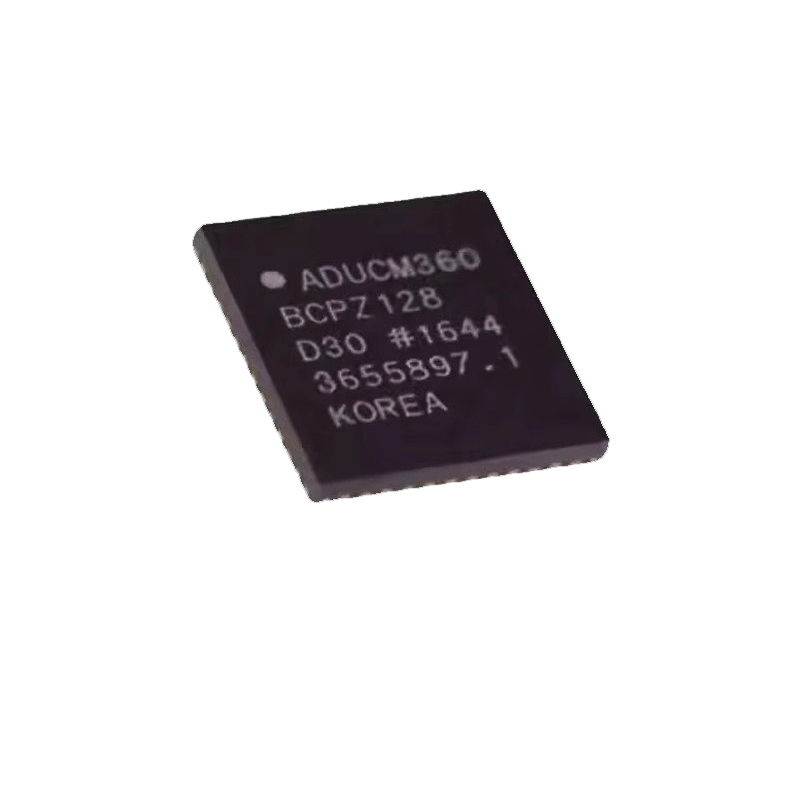

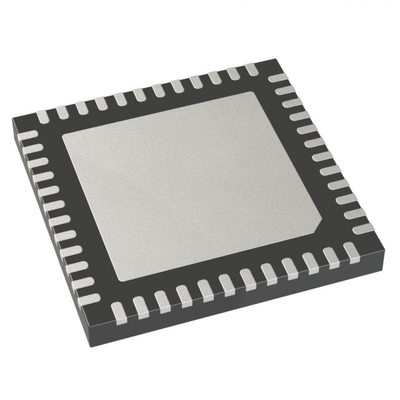

Product Images

Packaging and Transportation

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). For urgent requests, please contact us directly.

2. What is your delivery time?

Typically 7-15 days for small batches, about 30 days for large quantities, depending on order volume and season.

3. What are your payment terms?

Factory price, 30% deposit, 70% T/T payment before shipment.

4. What is the mode of transportation?

Available by sea, air, or express (EMS, UPS, DHL, TNT, FEDEX). Please confirm before ordering.
