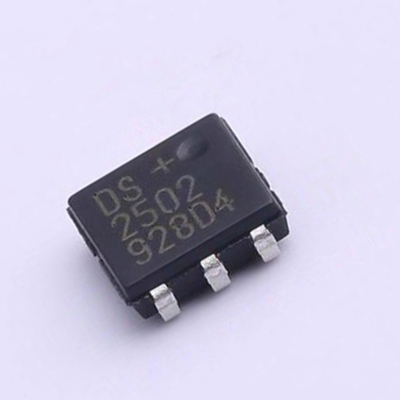

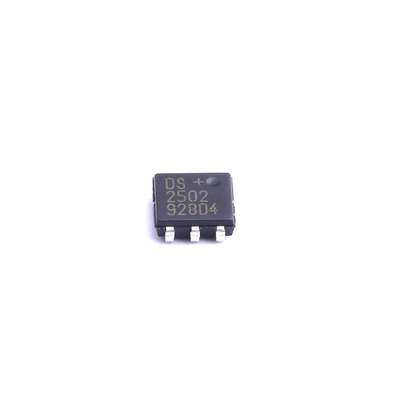

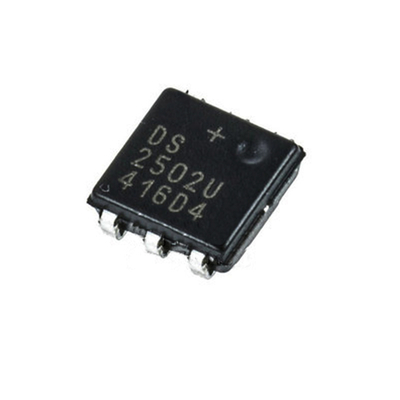

Non Volatile Electrically Erasable Programmable Rom 1Kb Add Only Memory DS2502P+T&R

EPROM Non-volatile Memory ROM 1Kb Add-Only Memory DS2502P+T &R

• Easily Add Traceability and Relevant Information to Any Individual System
  • 1k-Bit EPROM with Page-Level Write Protection and Guaranteed Unique 64-Bit ROM ID Chip for Absolute Traceability
  • 1024 Bits Electrically Programmable Read Only Memory (EPROM)
  • Unique, Factory-Lasered and Tested 64-Bit Registration Number (8-Bit Family Code + 48-Bit Serial Number + 8-Bit CRC Tester)
  • EPROM Partitioned into Four 256-Bit Pages for Randomly Accessing Packetized Data
  • Each Memory Page Can Be Permanently Write Protected to Prevent Tampering
  • Device is an Add Only Memory Where Additional Data Can Be Programmed into EPROM Without Disturbing Existing Data
  • Architecture Allows Software to Patch Data by Superseding an Old Page in Favor of a Newly Programmed Page
  • 8-Bit Family Code Specifies DS2502 Communications Requirements to Reader
• Minimalist 1-Wire Interface Lowers Cost and Interface Complexity
  • Reduces Control, Address, Data, Power, and Programming Signals to a Single Data Pin
  • Directly Connects to a Single Port Pin of a Microprocessor and Communicates at up to 16.3kb Per Second
  • Built-In Multidrop Controller Ensures Compatibility with Other 1-Wire Net Products
  • Presence Pulse Acknowledges When the Reader First Applies Voltage
  • Low Cost TO-92, SFN, or 8-Pin SO, SOT-23 (3 Pin), TSOC and WLP Surface Mount Package
• Wide Voltage and Temperature Operating Ranges Provide Robust System Performance
  • Reads Over Voltage Range of 2.8V to 6.0V at 40°C to +85°C
  • Zero Standby Power Required
  • Programs at 11.5V to 12.0V from -40°C to +50°C

According to the standard export packaging. Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
