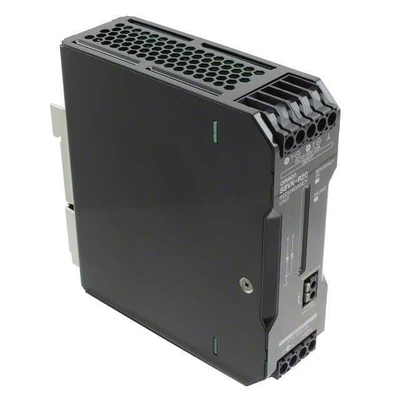

Plc Power Supply Isolated Dc Dc Converters DIN Rail Mount 20A Redundancy Unit Switching

• Compact and cost-effective solution for back-up applications
• Easy setup for system reliability requirements
• Redundancy operating LED for status confirmation
• Signal output for failure detection of power supplies
• Wide input voltage range: DC10-60V (S8VK-R20)
• Wide operation temperature range: -40 to 70°C
• Complies with safety standards: UL 508, CSA C22.2 No. 107, EN 62477-1
• Three years warranty (refer to Period and Terms of Warranty)

When used with S8VK-G (All Models), this function enables temporary repeated boost current larger than the rated current. Must meet these conditions:

1. Time that the boost current flows: t1
2. The maximum value of the boost current: lp
3. The average output current: lave
4. The time ratio of the boost current flow: Duty

Recommended wiring materials:

• Input side: Use recommended wire type or that of connected power supply
• Output side: Use wire type with sufficient capacity for current of two connected power supplies

Standard export packaging available. Customers can choose from:

• Cartons
• Wooden cases
• Wooden pallets
