Single Channel 128kB Microcontroller Chip ADC Low Power Precision Analog ADUCM361BCPZ128

Single Channel 128kB Microcontroller Chip ADC Low Power Precision Analog ADUCM361BCPZ128
Single Channel 128kB Microcontroller Chip ADC Low Power Precision Analog ADUCM361BCPZ128 Single Channel 128kB Microcontroller Chip ADC Low Power Precision Analog ADUCM361BCPZ128

Large Image :  Single Channel 128kB Microcontroller Chip ADC Low Power Precision Analog ADUCM361BCPZ128

Product Details:
Place of Origin: TAIWAN
Brand Name: ADI
Certification: ROHS
Model Number: ADUCM361BCPZ128
Document: C395110_F76B03D1C01F5ED3FC7...DE.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: consult with
Packaging Details: winding
Delivery Time: 5-8DAY
Payment Terms: T/T
Supply Ability: 10000
Contact Now Chat Now

Single Channel 128kB Microcontroller Chip ADC Low Power Precision Analog ADUCM361BCPZ128

Description
Product Category:: ARM Microcontrollers - MCU Series:: ADUCM361
Package / Case:: LFCSP-48 Core:: ARM Cortex M3
Program Memory Size:: 128 KB Data Bus Width:: 32 Bit
Processor Series:: ARM Cortex Moisture Sensitive:: Yes
Highlight:

Single channel microcontroller chip

,

128kB microcontroller chip

,

ADUCM361BCPZ128

ARM CORTEX M3 Single-channel ADC Low-power Precision Analog Microcontroller Chip ADUCM361BCPZ128
Product Specifications
Product Category ARM Microcontrollers - MCU
Series ADUCM361
Package / Case LFCSP-48
Core ARM Cortex M3
Program Memory Size 128 kB
Data Bus Width 32 bit
Processor Series ARM Cortex
Moisture Sensitive Yes
Manufacturer Analog Devices Inc.
Key Features
  • ARM Cortex-M3 32-bit processor with serial wire debug capability
  • Single-channel 24-bit ADC with programmable output rate (3.5 Hz to 3.906 kHz)
  • 50 Hz/60 Hz synchronous noise rejection
  • Flexible input multiplexing with selectable input channels
  • Programmable gain (1 to 128) with RMS noise as low as 52 nV
  • On-chip precision voltage reference and 12-bit voltage output DAC
  • Low power consumption: 290 μA/MHz in active mode, 4 μA in power saving mode
  • 128 kB Flash/EE memory and 8 kB SRAM
  • Operating voltage range: 1.8 V to 3.6 V
  • 48-pin LFCSP package with -40°C to +125°C operating range

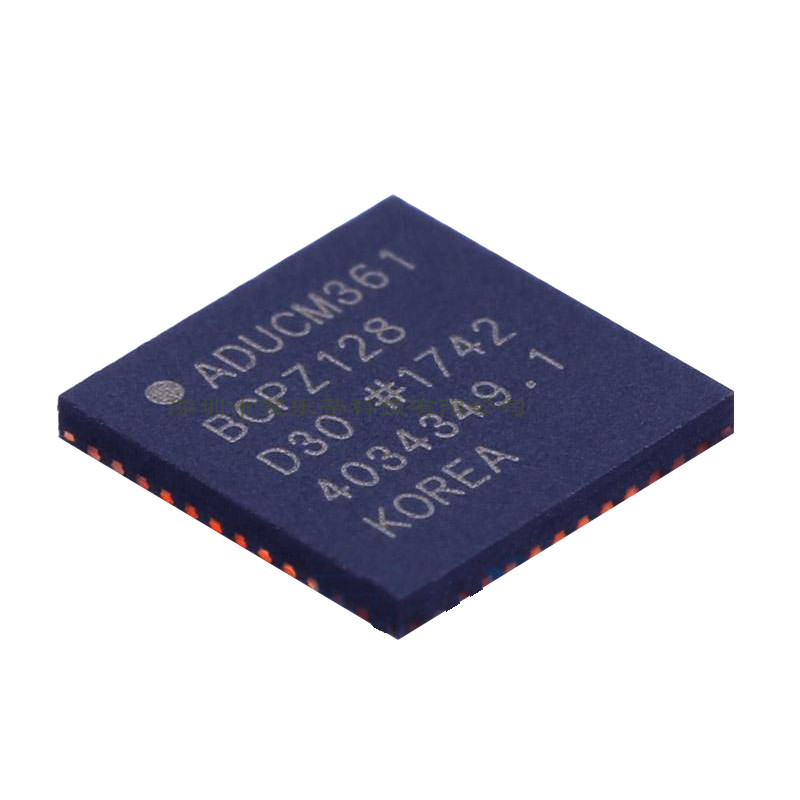

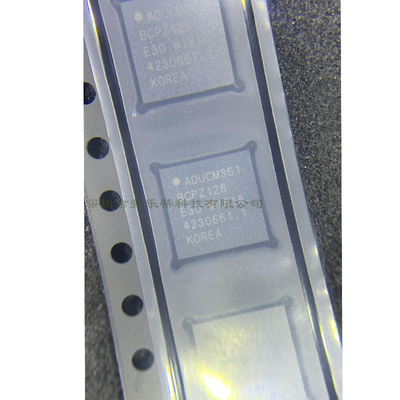

Product Images
Single Channel 128kB Microcontroller Chip ADC Low Power Precision Analog ADUCM361BCPZ128 0 Single Channel 128kB Microcontroller Chip ADC Low Power Precision Analog ADUCM361BCPZ128 1
Packaging Information

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly via email or other available methods.

What is your delivery time?

Delivery time depends on order quantity and season. Small batches typically ship within 7-15 days, while larger orders may require approximately 30 days for fulfillment.
