Single Chip MPU IC 8051 Microprocessor 480Mb/S CY7C68013A-56PVXC

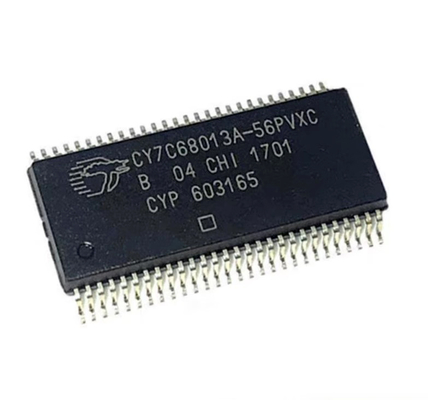

Large Image : Single Chip MPU IC 8051 Microprocessor 480Mb/S CY7C68013A-56PVXC

Product Details:

Place of Origin:	TAIWAN
Brand Name:	CYPRESS
Certification:	ROHS
Model Number:	CY7C68013A-56PVXC
Document:	1457706971052.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	CONSULT WITH
Packaging Details:	T/R
Delivery Time:	5-8DAY
Payment Terms:	T/T,Western Union
Supply Ability:	10000

Contact Now Chat Now

Single Chip MPU IC 8051 Microprocessor 480Mb/S CY7C68013A-56PVXC

Description

Product Category::	USB Interface IC	Series::	CY7C68013A
Product::	USB Controllers	Type::	Peripheral Controller
Package / Case::	SSOP-56	Standard::	USB 2.0
Core::	8051	Moisture Sensitive::	Yes
Highlight:	Single Chip MPU IC , 8051 Microprocessor 480Mb/s , CY7C68013A-56PVXC

MPU Single Chip Integrated USB 2.0 Transceiver, Smart SIE, And Enhanced 8051 Microprocessor CY7C68013A-56PVXC

Product Specifications

Attribute	Value
Product Category:	USB Interface IC
Series:	CY7C68013A
Product:	USB Controllers
Type:	Peripheral Controller
Package / Case:	SSOP-56
Standard:	USB 2.0
Core:	8051
Moisture Sensitive:	Yes
Speed:	High Speed (HS)
Data Rate:	480 Mb/s
Operating Supply Voltage:	3.3 V
Minimum Operating Temperature:	0°C
Maximum Operating Temperature:	+70°C

Product Features

USB 2.0 USB IF high speed certified (TID # 40460272)
Single chip integrated USB 2.0 transceiver, smart SIE, and enhanced 8051 microprocessor
Fit, form, and function compatible with the FX2
Ultra low power: ICC No more than 85 mA in any mode
16 KB of on-chip code/data RAM
Four programmable BULK, INTERRUPT, and ISOCHRONOUS endpoints
8-bit or 16-bit external data interface
GPIF (general programmable interface) enables direct connection to most parallel interfaces
Integrated, industry standard enhanced 8051 with 48 MHz, 24 MHz, or 12 MHz CPU operation
3.3 V operation with 5 V tolerant inputs
Integrated I2C controller, runs at 100 or 400 kHz
Four integrated FIFOs with automatic conversion to and from 16-bit buses
Available in commercial and industrial temperature grade

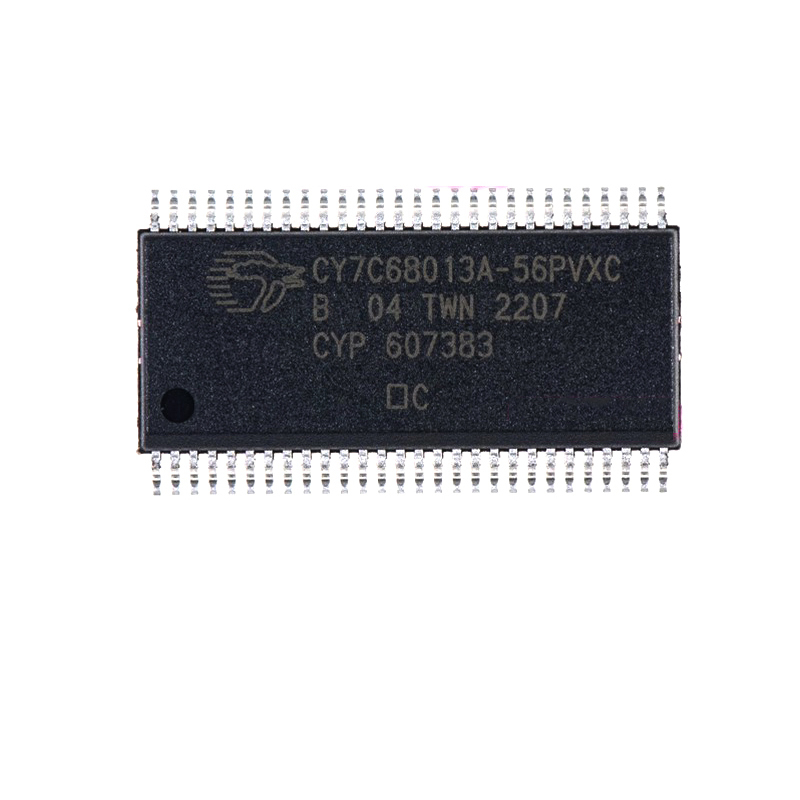

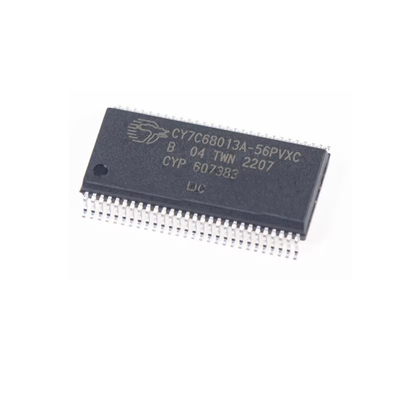

Product Images

Packaging and Transportation

According to the standard export packaging. Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.

Frequently Asked Questions

1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.

2. What is your delivery time?

This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.

3. What are your payment terms?

Factory price, 30% deposit, 70%T/T payment before shipment.

4. What is the mode of transportation?

It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.

5. How do you help our business establish a long-term and good relationship?

We maintain good quality and competitive prices to ensure that our customers benefit. We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.
