Solid State Safety Relay 24vdc 12VDC G3PE-215B DC12-24 DIN Rail Mounting

Solid State Safety Relay 24vdc 12VDC G3PE-215B DC12-24 DIN Rail Mounting
Solid State Safety Relay 24vdc 12VDC G3PE-215B DC12-24 DIN Rail Mounting Solid State Safety Relay 24vdc 12VDC G3PE-215B DC12-24 DIN Rail Mounting Solid State Safety Relay 24vdc 12VDC G3PE-215B DC12-24 DIN Rail Mounting

Large Image :  Solid State Safety Relay 24vdc 12VDC G3PE-215B DC12-24 DIN Rail Mounting

Product Details:
Place of Origin: JP
Brand Name: OMRON
Certification: ROSH
Model Number: G3PE-215B DC12-24
Document: 17D14AD6768743B84880360F2F6...21.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8DAY
Payment Terms: T/T
Supply Ability: 1000
Contact Now Chat Now

Solid State Safety Relay 24vdc 12VDC G3PE-215B DC12-24 DIN Rail Mounting

Description
Input Voltage: 12VDC Dimension: 106*75*37
Color: White Ambient Temperature: -25℃-+70℃
Contact Form: Normally Open Switching Frequency: 10-100Hz
Power: DC4V-32V AC24V-480VAC
Highlight:

Solid State safety relay 24vdc

,

12VDC din rail solid state relay

,

G3PE-215B DC12-24

Solid State Relay G3PE Series G3PE-215B DC12-24 DIN Rail Mounting
Key Specifications
Attribute Value
Input Voltage 12VDC
Dimension 106×75×37 mm
Color White
Ambient Temperature -25℃ to +70℃
Contact Form Normally open
Switching Frequency 10-100Hz
Power DC4V-32V AC24V-480VAC
Product Features
  • Compact, slim-profile SSRs with heat sinks
  • Models available with no zero cross for wide range of applications
  • RoHS compliant
  • Improved surge dielectric strength for output currents
  • DIN track or screw mounting options
  • Conforms to UL508, CSA22.2 No.14, and EN60947-4-3 standards
  • TÜV certified
Technical Specifications
Model G3PE-215B
Rated load voltage 100 to 240 VAC (50/60 Hz)
Applicable load current 0.1 to 15 A (at 40°C)
Inrush current resistance 150 A (60 Hz, 1 cycle)
Operate time 1/2 of load power source cycle + 1 ms max.
Output ON voltage drop 1.6 V (RMS) max.
Weight Approx. 240 g
Product Images

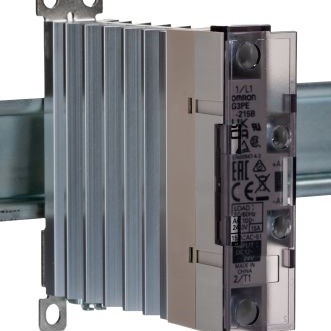

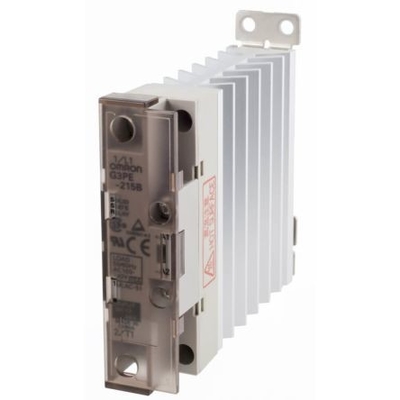

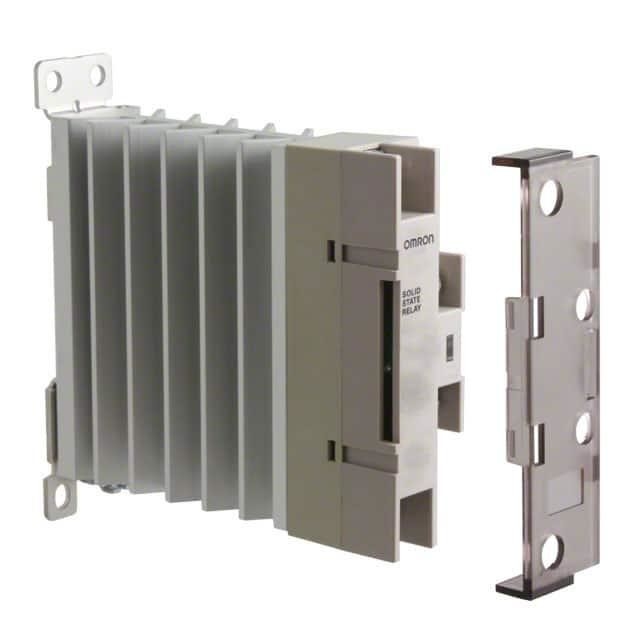

Solid State Safety Relay 24vdc 12VDC G3PE-215B DC12-24 DIN Rail Mounting 0 Solid State Safety Relay 24vdc 12VDC G3PE-215B DC12-24 DIN Rail Mounting 1 Solid State Safety Relay 24vdc 12VDC G3PE-215B DC12-24 DIN Rail Mounting 2
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Delivery time depends on order quantity and season. Small batches typically ship within 7-15 days, while large orders may require approximately 30 days.

What are your payment terms?

Standard terms: 30% deposit, with 70% balance paid via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm preferred method before ordering.
