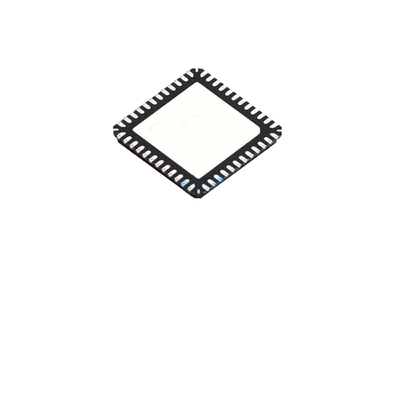

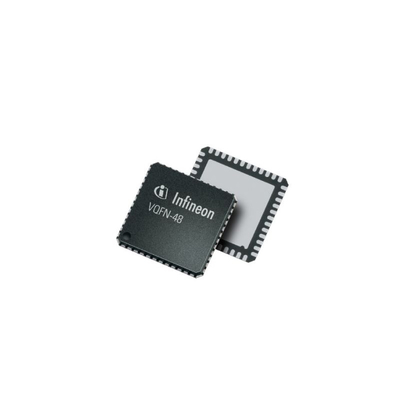

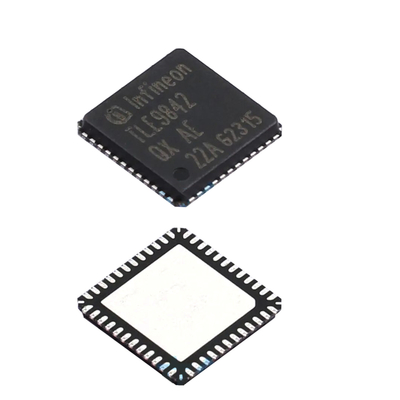

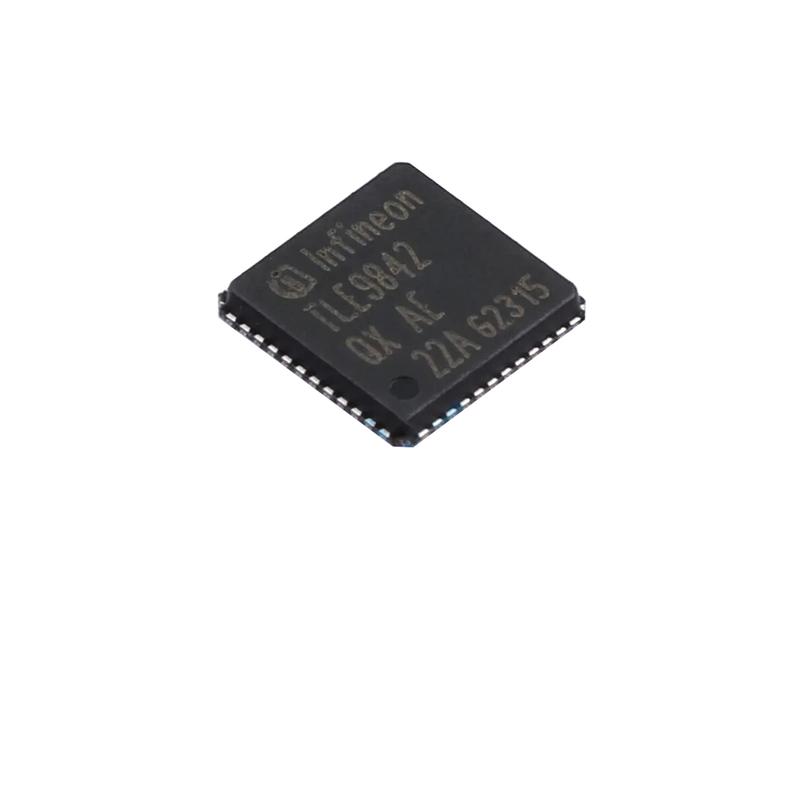

TLE9842QX MCU Microcontroller Unit With LIN And Power Switch For Automotive

• 32-bit ARM Cortex-M0 Core with up to 25 MHz clock frequency
• On-chip memory: 36 KB Flash, 4 KB EEPROM, 2 KB RAM
• 2 Low-Side Switches with PWM functionality
• 1 High-Side Switch with cyclic sense option (min. 150 mA)
• 4 High Voltage Monitor Input pins for wake-up
• 10 General-purpose I/O Ports (GPIO)
• 10-Bit A/D Converter with 6 analog inputs
• 2 full duplex serial interfaces (UART1, UART2), UART1 with LIN support
• Single power supply from 3.0 V to 28 V
• Power saving modes including Micro Controller Unit slow-down mode
• Qualified for automotive applications (AEC-Q100)

Standard export packaging available. Customers can choose from cartons, wooden cases and wooden pallets according to their requirements.
