ZYNQ7000 FPGA Programmable Logic Board Board Development Board AC7Z020

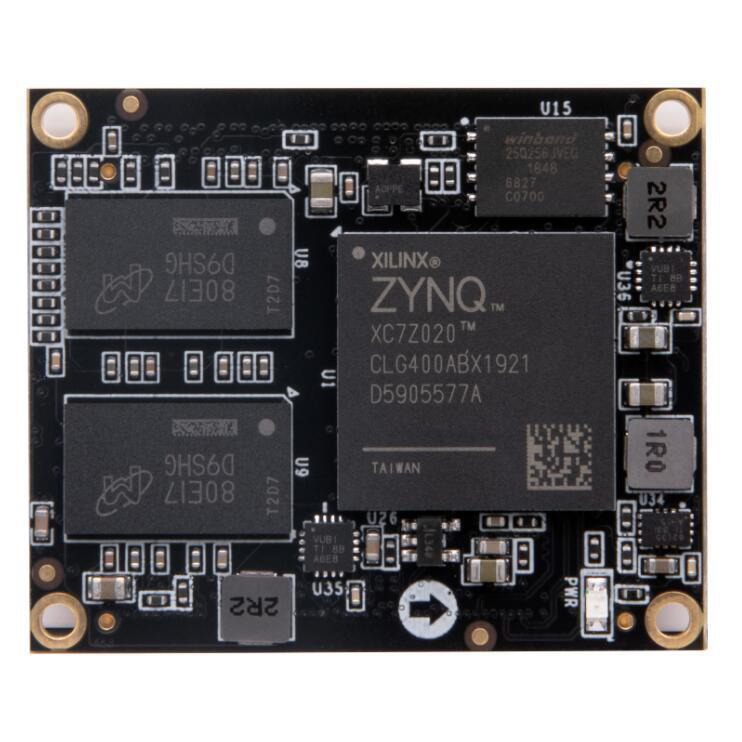

The AC7Z020 core board features a ZYNQ chip based on XILINX's ZYNQ7000 series XC7Z020-2CLG400I. The PS system integrates two ARM Cortex™-A9 processors with AMBA® interconnects, internal memory, external memory interfaces, and peripherals. The FPGA contains rich programmable logic units, DSP, and internal RAM.

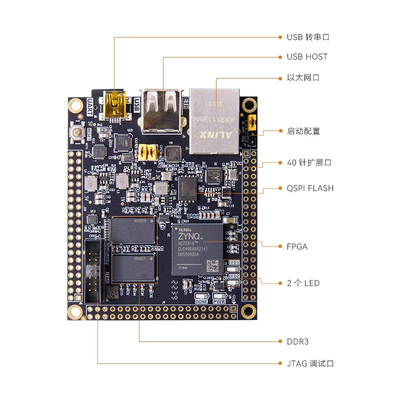

The board utilizes two Micron MT41K256M16TW-107 DDR3 chips (512MB each) forming a 32-bit data bus with clock frequencies up to 533Mhz, enabling high-bandwidth data processing. Interface connections include:

• USB interface at PS end
• Gigabit Ethernet interface
• SD card interface
• 122 total IO ports (BANK13, BANK34, BANK35) with adjustable levels

The compact 35×42mm design features equal-length and differential traces between ZYNQ chip and interfaces, making it ideal for secondary development.

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to requirements.
