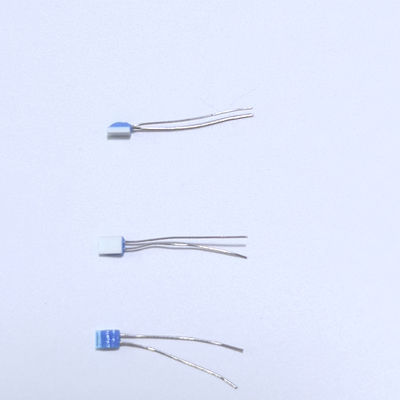

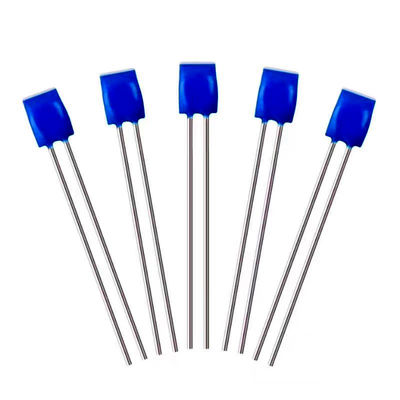

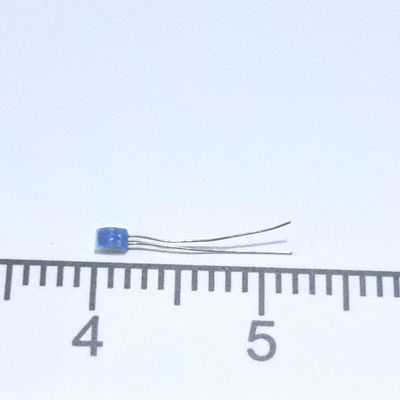

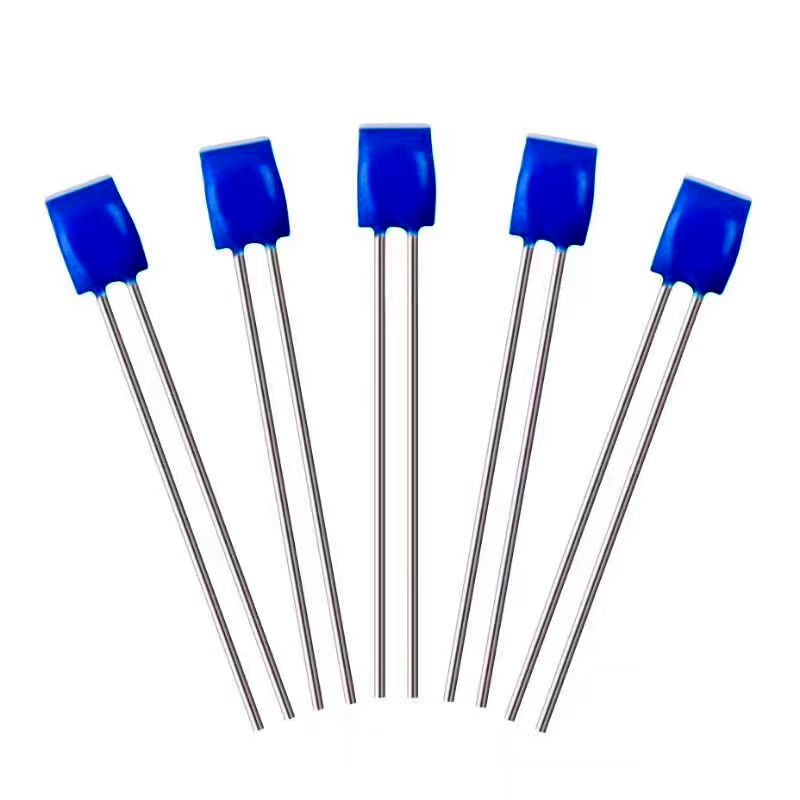

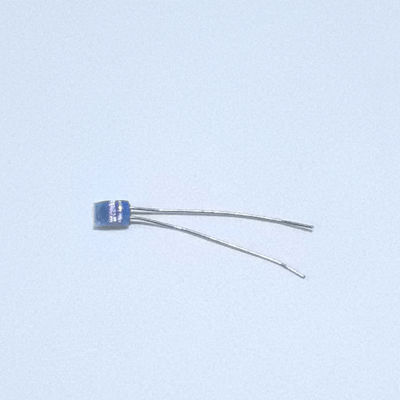

Platinum Resistance Communication Antenna Temperature Detector PT1000M213B -M213 PT1000B

Platinum Resistance Temperature Detector PT1000M213B is part of the -M213 Thin Film Platinum Resistance Series PT1000B. At 0°C, the resistance of PT1000 is 1000 ohms, with resistance increasing at a constant rate as temperature rises.

PT1000 is a platinum resistance thermometer where resistance value is directly proportional to temperature change. The relationship between resistance and temperature can be expressed as Rt=Rt0[1+α(t-t0)], where:

• Rt = resistance at temperature t
• Rt0 = resistance at reference temperature t0 (typically 0°C)
• α = temperature coefficient

Key characteristics:

• PT1000 is more sensitive than PT100 - resistance changes ~3.8Ω/°C vs ~0.38Ω/°C
• PT1000 is ideal for smaller temperature ranges while PT100 suits larger ranges
• Measurement typically uses differential sampling bridge circuits
• Can achieve accuracy within 0.5°C in limited temperature ranges

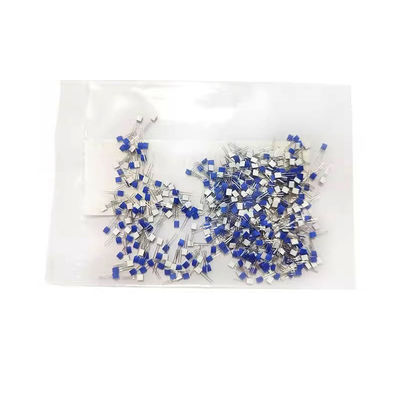

Standard export packaging available. Customers can choose from:

• Cartons
• Wooden cases
• Wooden pallets
