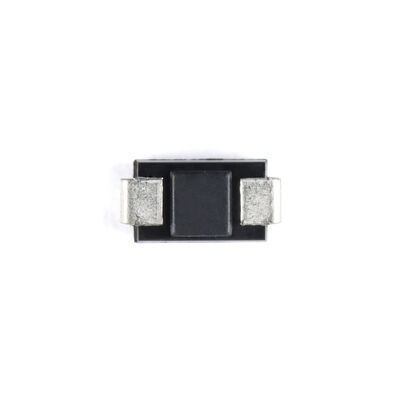

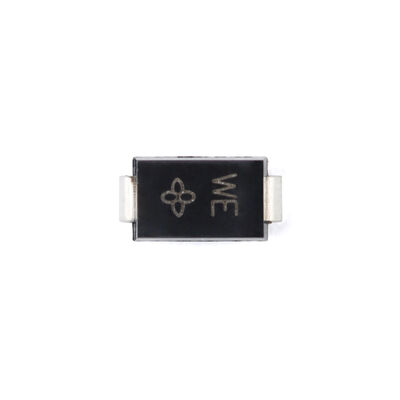

SMAJ5.0CA Transient Voltage Suppression Diodes Designed Specifically To Protectsensitive Electronic Equipment From Voltage Transientsinduced By Lightning And Other Transient Voltage Events.

SMAJ5.0CA Transient Voltage Suppression Diodes Designed Specifically To Protectsensitive Electronic Equipment From Voltage Transientsinduced By Lightning And Other Transient Voltage Events.

• 400W Peak pulse powercapability at 10/1000µswaveform, repetition rate(duty cycle): 0.01%
• Excellent clampingcapability
• Typical IR less than 1μAwhen VBR min>12V
• For surface mountedapplications to optimizeboard space
• Low profile package
• Typical failure mode isshort from over-specifiedvoltage or current
• Whisker test is conductedbased on JEDECJESD201A per its table 4aand 4c
• IEC-61000-4-2 ESD30kV(Air), 30kV (Contact)
• ESD protection of datalines in accordance withIEC 61000-4-2
• EFT protection of datalines in accordance withIEC 61000-4-4
• Built-in strain relief
• Fast response time:typically less than 1.0psfrom 0 Volts to VBR min
• Glass passivated junction
• Low inductance
• High temperatureto reflow solderingguaranteed: 260°C/40sec
• VBR @ TJ= VBR@25°Cx (1+αT x (TJ - 25))(αT:TemperatureCoefficient, typical valueis 0.1%)
• Plastic package isflammability ratedV-0 per UnderwritersLaboratories
• Meet MSL level1, perJ-STD-020, LF maximunpeak of 260°C
• Matte tin lead–free Plated
• Halogen free and RoHS compliant
• Pb-free E3 means 2ndlevel interconnect isPb-free and the terminalfinish material is tin(Sn)(IPC/JEDEC J-STD609A.01)
