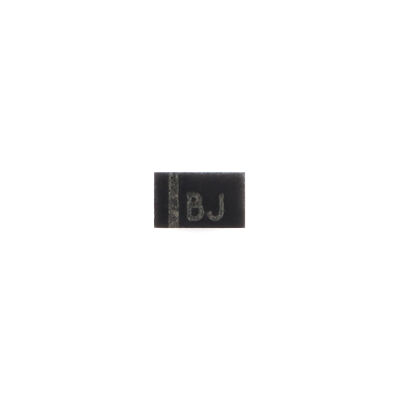

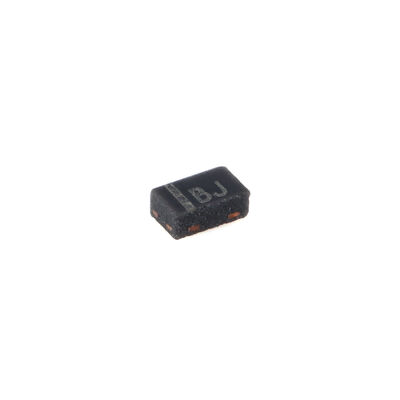

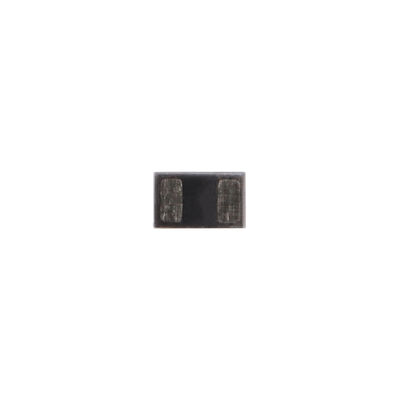

TPD1E10B09DPYR Single-channel ESD Transient Voltage Suppressor (TVS) Diode In A Small 0402 Package

• Provides system-level ESD protection for I/O interfaces up to ±9 V
• IEC 61000-4-2 Level 4:
  • ±20 kV (air-gap discharge)
  • ±20 kV (contact discharge)
• IEC 61000-4-5 surge protection:
  • 4.5 A (8/20 μs)
• I/O capacitance of 10 pF (typical)
• R_DYN of 0.5 Ω (typical)
• DC breakdown voltage of ±9.5 V (minimum)
• Ultra-low leakage current of 100 nA (maximum)
• Clamping voltage of 13 V (maximum at |I_PP = 1 A)
• Industrial temperature range: -40°C to 125°C
• Space-saving 0402 form factor (1 mmx0.6 mmx0.5 mm)

TPD1E10B09 DPY(X1SON,2) 1mm * 0.6mm

• End devices:
  • Tablets
  • Remote controllers
  • Wearables
  • Set-top boxes
  • Electronic point-of-sale (EPOS)
  • E-book readers
• Interfaces:
  • Audio lines
  • Buttons
  • General-purpose input/output (GPIO)

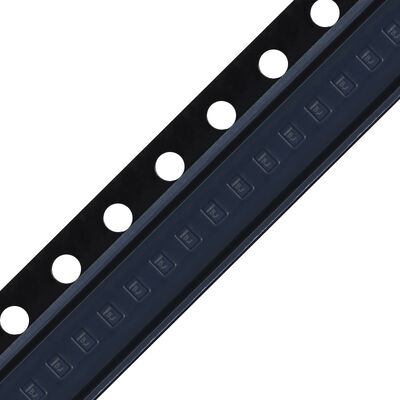

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
