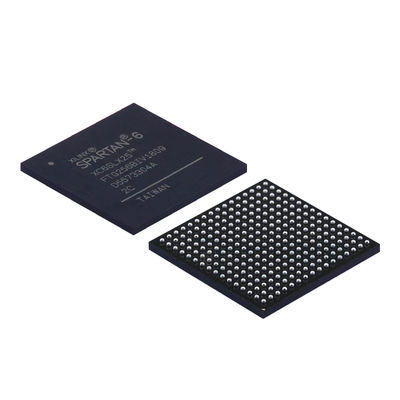

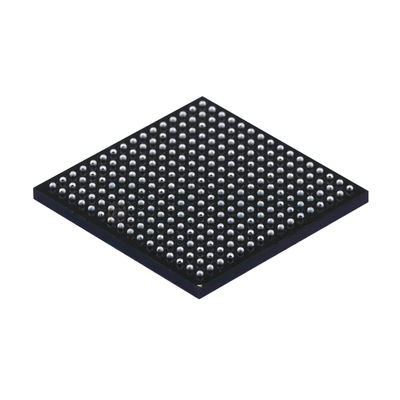

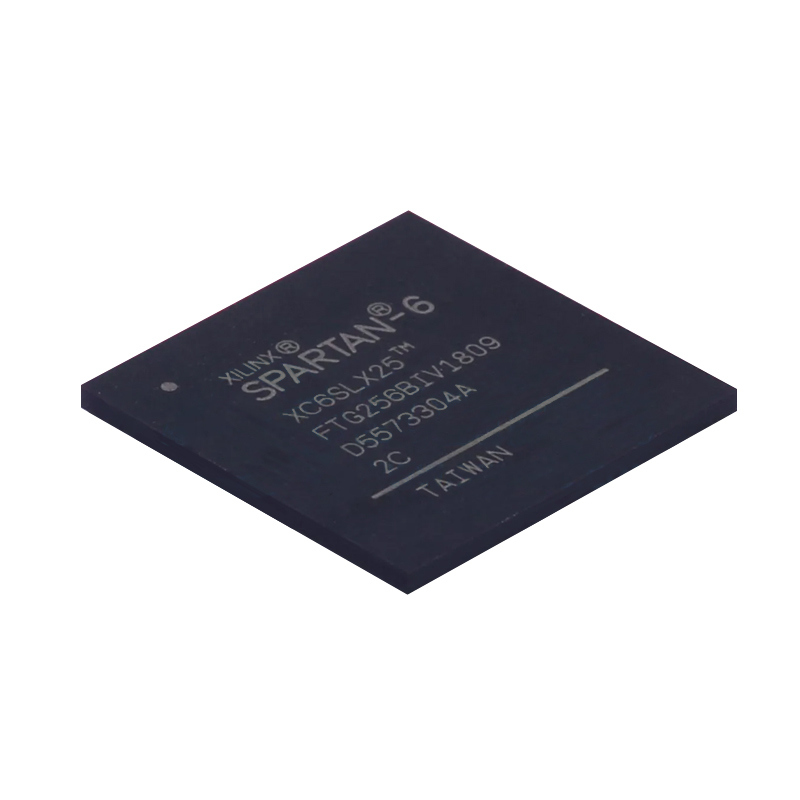

XC6SLX25-2FTG256C FPGA - Field Programmable Gate Array
Spartan-6 LX and LXT FPGAs are available in various speed grades, with -3 having the highest performance. The DC and AC electrical parameters of the Automotive XA Spartan-6 FPGAs and Defense-grade Spartan-6Q FPGAs devices are equivalent to the commercial specifications except where noted. The timing characteristics of the commercial (XC) -2 speed grade industrial device are the same as for a -2 speed grade commercial device. The -2Q and -3Q speed grades are exclusively for the expanded (Q) temperature range. The timing characteristics are equivalent to those shown for the -2 and -3 speed grades for the Automotive and Defense-grade devices. Spartan-6 FPGA DC and AC characteristics are specified for commercial (C), industrial (I), and expanded (Q) temperature ranges. Only selected speed grades and/or devices might be available in the industrial or expanded temperature ranges for Automotive and Defense-grade devices. References to device names refer to all available variations of that part number (for example, LX75 could denote XC6SLX75, XA6SLX75, or XQ6SLX75). The Spartan-6 FPGA -3N speed grade designates devices that do not support MCB functionality. All supply voltage and junction temperature specifications are representative of worst-case conditions. The parameters included are common to popular designs and typical applications. Available device and package combinations can be found at:
- DS160: Spartan-6 Family Overview
- DS170: Automotive XA Spartan-6 Family Overview
- DS172: Defense-Grade Spartan-6Q Family Overview
This Spartan-6 FPGA data sheet, part of an overall set of documentation on the Spartan-6 family of FPGAs, is available on the Xilinx website at http://www.xilinx.com/support/documentation/spartan-6.htm.
Specifications
| Manufacturer: |
AMD |
| Product Category: |
FPGA - Field Programmable Gate Array |
| RoHS: |
Details |
| Series: |
XC6SLX25 |
| Number of Logic Elements: |
24051 LE |
| Adaptive Logic Modules - ALMs: |
3758 ALM |
| Embedded Memory: |
936 kbit |
| Number of I/Os: |
186 I/O |
| Supply Voltage - Min: |
1.14 V |
| Supply Voltage - Max: |
1.26 V |
| Minimum Operating Temperature: |
0 C |
| Maximum Operating Temperature: |
+ 85 C |
| Mounting Style: |
SMD/SMT |
| Package / Case: |
FBGA-256 |
| Brand: |
AMD / Xilinx |
| Distributed RAM: |
229 kbit |
| Embedded Block RAM - EBR: |
936 kbit |
| Maximum Operating Frequency: |
1.08 GHz |
| Moisture Sensitive: |
Yes |
| Number of Logic Array Blocks - LABs: |
1879 LAB |
| Operating Supply Voltage: |
1.2 V |
| Product Type: |
FPGA - Field Programmable Gate Array |
| Factory Pack Quantity: |
90 |
| Subcategory: |
Programmable Logic ICs |
| Tradename: |
Spartan |
| Unit Weight: |
0.761080 oz |
