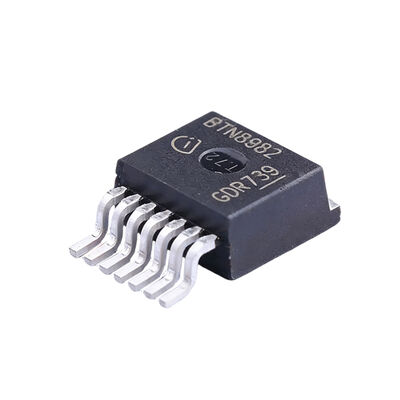

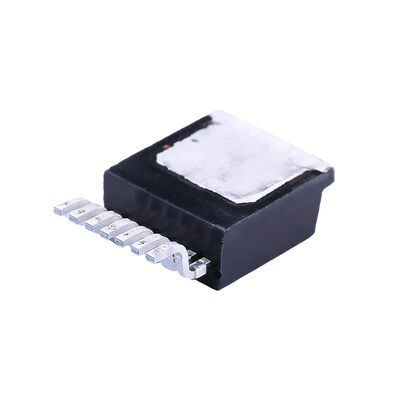

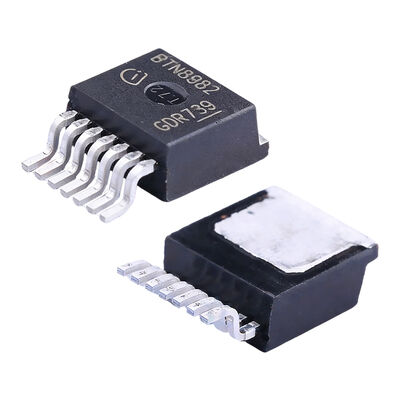

BTN8982TA Motor Controller Half Bridge Driver with 9 A Output Current AEC-Q100 Qualified for 40V Operation

Description
Product Category:: Motor / Motion / Ignition Controllers & Drivers Output Current:: 9 A
Minimum Operating Temperature:: - 40 C Maximum Operating Temperature:: + 150 C
Mounting Style:: SMD/SMT Package / Case:: TO-263-7
Qualification:: AEC-Q100 Packaging:: Reel
Highlight:

9 A Output Current Motor Controller

,

AEC-Q100 Qualified Half Bridge Driver

,

40V Operation DC Motor Control

BTN8982TA Motor Motion Ignition Controllers & Drivers DC_MOTOR_CONTROL
Features
  • Path resistance of max. 20.4 mΩ @ 150 °C (typ. 10.0 mΩ @ 25 °C)
  • High Side: max. 10.5 mΩ @ 150 °C (typ. 5.3 mΩ @ 25 °C)
  • Low Side: max. 9.9 mΩ @ 150 °C (typ. 4.7 mΩ @ 25 °C)
  • Enhanced switching speed for reduced switching losses
  • Capable for high PWM frequency combined with active freewheeling
  • Low quiescent current of typ. 7 μA @ 25 °C
  • Switched mode current limitation for reduced power dissipation in overcurrent
  • Current limitation level of 55 A min.
  • Status flag diagnosis with current sense capability
  • Overtemperature shut down with latch behaviour
  • Undervoltage shut down
  • Driver circuit with logic level inputs
  • Adjustable slew rates for optimized EMI
  • Operation up to 40V
  • Green Product (RoHS compliant)
  • AEC Qualified
Description

The BTN8982TA is an integrated high current half bridge for motor drive applications. It is part of the NovalithIC™family containing one p-channel highside MOSFET and one n-channel lowside MOSFET with an integrated driver IC in one package. Due to the p-channel highside switch the need for a charge pump is eliminated thus minimizing EMI. Interfacing to a microcontroller is made easy by the integrated driver IC which features logic level inputs, diagnosis with current sense, slew rate adjustment, dead time generation and protection against overtemperature, undervoltage, overcurrent and short circuit. The BTN8982TA provides a cost optimized solution for protected high current PWM motor drives with very low board space consumption.

Absolute Maximum Ratings

Tj = -40 °C to +150 °C; all voltages with respect to ground, positive current flowing into pin (unless otherwise specified)

Pos. Parameter Symbol Min. Max. Unit Conditions
Voltages
4.1.1 Supply Voltage VS -0.3 40 V –
4.1.2 Drain-Source Voltage High Side VDS(HS) -40 – V Tj ≥ 25°C



-38 – V Tj < 25°C
4.1.3 Drain-Source Voltage Low Side VDS(LS) – 40 V Tj ≥ 25°C



– 38 V Tj < 25°C
4.1.4 Logic Input Voltage VINVINH -0.3 5.3 V –
4.1.5 Voltage at SR Pin VSR -0.3 1.0 V –
4.1.6 Voltage between VS and IS Pin VS -VIS -0.3 40 V –
4.1.7 Voltage at IS Pin VIS -20 40 V –
Currents
4.1.8 HS/LS Continuous Drain Current2) ID(HS)ID(LS) -50 50 A TC < 85°C switch active



-44 44 A TC < 125°C switch active
4.1.9 HS/LS Pulsed Drain Current2) ID(HS)ID(LS) -117 117 A tpulse = 10ms single pulse TC < 85°C



-104 104 A TC < 125°C
4.1.10 HS/LS PWM Current2) ID(HS)ID(LS) -68 68 A f = 1kHz, DC = 50% TC < 85°C



-60 60 A TC < 125°C



-70 70 A f = 20kHz, DC = 50% TC < 85°C



-62 62 A TC < 125°C
Temperatures
4.1.11 Junction Temperature Tj -40 150 °C –
4.1.12 Storage Temperature Tstg -55 150 °C –
ESD Susceptibility
4.1.13 ESD Resistivity HBM3) IN, INH, SR, ISOUT, GND, VSVESD -2 6 kV HBM

1) Not subject to production test, specified by design

2) Maximum reachable current may be smaller depending on current limitation level

3) ESD susceptibility, HBM according to ANSI/ESDA/JEDEC JS-001 (1,5kΩ, 100pF)
