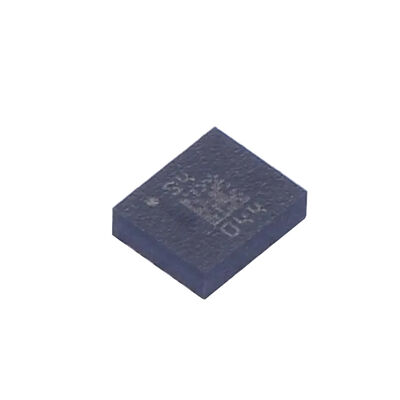

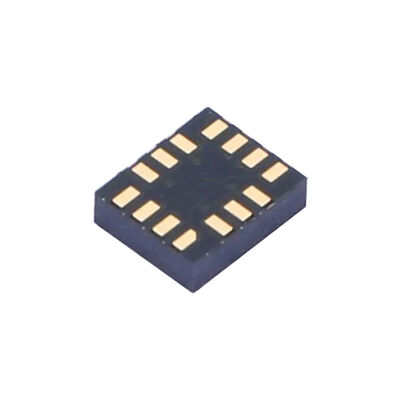

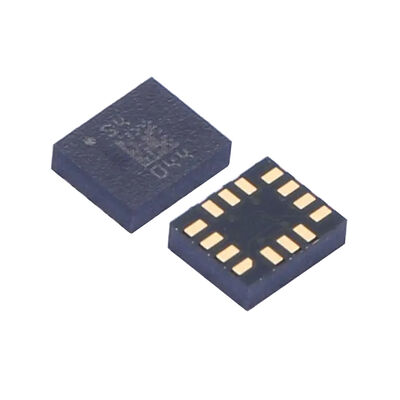

LSM6DSOWTR Low Power Consumption High Performance Mode Compact Footprint IMU Inertial Measurement Unit

Features

• Power consumption: 0.55 mA in combo highperformance mode
• “Always-on" experience with low powerconsumption for both accelerometer and gyroscope
• Smart FIFO up to 9 kbyte
• Android compliant
• ±2/±4/±8/±16 g full scale
• ±125/±250/±500/±1000/±2000 dps full scale
• Analog supply voltage: 1.71 V to 3.6 V
• Independent IO supply (1.62 V)
• Compact footprint: 2.5 mm x 3 mm x 0.83 mm
• SPI / I2C & MIPI I3CSM serial interface with mainprocessor data synchronization
• Advanced pedometer, step detector and stepcounter
• Significant Motion Detection, Tilt detection
• Standard interrupts: free-fall, wakeup, 6D/4Dorientation, click and double-click
• Programmable finite state machine: accelerometer,gyroscope and external sensors
• Embedded temperature sensor
• ECOPACK®, RoHS and “Green” compliant

Applications

• Motion tracking and gesture detection
• Sensor hub
• Indoor navigation
• IoT and connected devices
• Smart power saving for handheld devices

Description

The LSM6DSOW is a system-in-package featuring a3D digital accelerometer and a 3D digital gyroscopeboosting performance at 0.55 mA in high-performancemode and enabling always-on low-power features foran optimal motion experience for the consumer.The LSM6DSOW supports main OS requirements,offering real, virtual and batch sensors with 9 kbytes fordynamic data batching. ST’s family of MEMS sensormodules leverages the robust and maturemanufacturing processes already used for theproduction of micromachined accelerometers andgyroscopes. The various sensing elements aremanufactured using specialized micromachiningprocesses, while the IC interfaces are developed usingCMOS technology that allows the design of a dedicatedcircuit which is trimmed to better match thecharacteristics of the sensing element.The LSM6DSOW has a full-scale acceleration range of±2/±4/±8/±16 g and an angular rate range of±125/±250/±500/±1000/±2000 dps.High robustness to mechanical shock makes theLSM6DSOW the preferred choice of system designersfor the creation and manufacturing of reliable products.The LSM6DSOW is available in a plastic land grid array(LGA) package.

Temperature sensor characteristics

(1) Typical specifications are not guaranteed.

(2) When the accelerometer is in Low-Power mode and the gyroscope part is turned off, the TODR value isequal to the accelerometer ODR.

(3) The output of the temperature sensor is 0 LSB (typ.) at 25 °C.

(4) Time from power ON bit to valid data based on characterization data.

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
