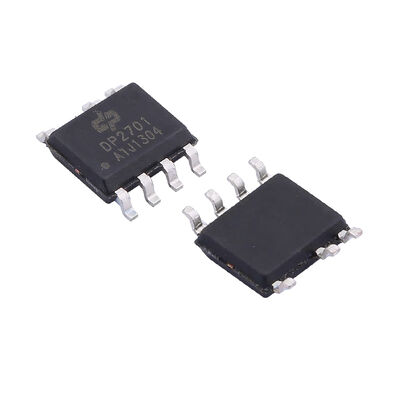

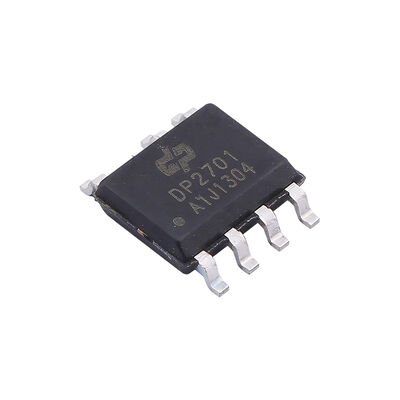

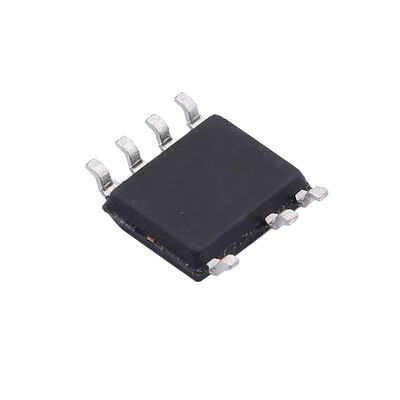

DP2701A High Performance Primary Side Regulation CV/CCPower Switch
FEATURES
- Built-in 800V High Voltage Power BJT
- Valley Switch for High Efficiency
- Multi-Mode PSR Control
- Fast Dynamic Response
- Optimized EMI Performance
- Audio Noise Free Operation
- ±5% CC and CV Regulation
- Low Standby Power <30mW
- Programmable Cable Drop Compensation(CDC)
- Build in Protections:
- Short Load Protection (FB SLP)
- Over Voltage Protection (FB OVP)
- Cycle-by-Cycle Current Limiting (OCP)
- On-Chip Thermal Shutdown (OTP)
- VDD OVP & UVP & Clamp
- Available with SOP-7 Package
APPLICATIONS
- Battery Chargers for Cellular Phones
- AC/DC Power Adapter
GENERAL DESCRIPTION
DP2701X is a high performance PrimarySideRegulation (PSR) PWM power switchwithhighprecision CV/CC control ideal for chargerapplications. DP2701X can achieve audio noise freeoperationand fast dynamic response. The built-inCableDrop Compensation (CDC) function canprovideexcellent CV performance. DP2701X integrates functions and protectionsofVDD Under Voltage Lockout (UVLO), VDDoverVoltage Protection (VDD OVP), Cycle-by-cycleCurrent Limiting (OCP), Short Load Protection(SLP), On-Chip Thermal Shutdown, VDDClamping, etc. DP2701X also integrates single failure protections,including FB pull-up resistor open protection, FBpull-down resistor open protection, FBpull-downresistor short protection, output rectifier diodeorSR open protection, output rectifier diodeor SRshort protection, transformer windingsshortprotection and RCS open protection
Typical Output Power Table(1)
| Part Number |
230VAC ± 15%(2) Adapter(3) |
85-265VAC Adapter(3) |
| DP2701A | 5W | 3W |
| DP2701B | 6W | 5W |
| DP2701C | 8W | 6W |
| DP2701D | 10W | 7.5W |
| DP2701E | 12W | 10W |
| DP2701F | 15W | 12W |
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
