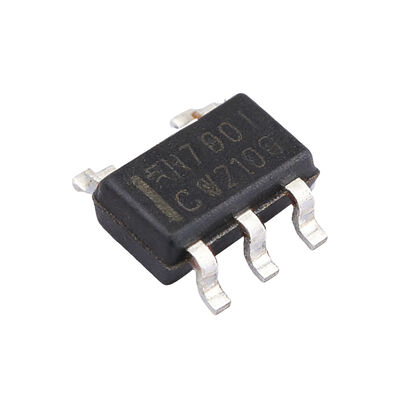

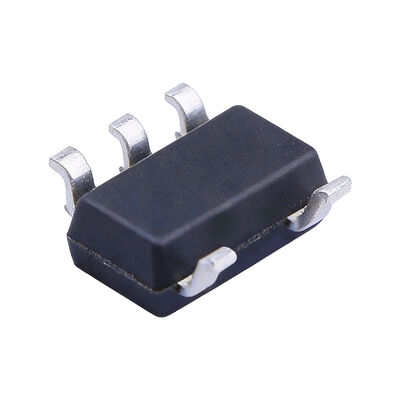

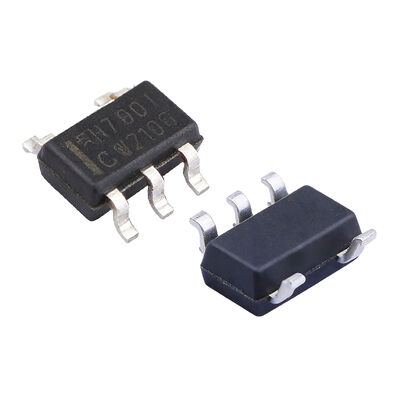

RH7901/RH7902 USB Charging Protocol Controller with 4.5V~5.5V Operating Voltage and Dual-port Control for Multiple USB Charging Protocols

RH7901/RH7902 USB Charging Protocol Controller with 4.5V~5.5V Operating Voltage and Dual-port Control for Multiple USB Charging Protocols
RH7901/RH7902 USB Charging Protocol Controller with 4.5V~5.5V Operating Voltage and Dual-port Control for Multiple USB Charging Protocols RH7901/RH7902 USB Charging Protocol Controller with 4.5V~5.5V Operating Voltage and Dual-port Control for Multiple USB Charging Protocols RH7901/RH7902 USB Charging Protocol Controller with 4.5V~5.5V Operating Voltage and Dual-port Control for Multiple USB Charging Protocols

Large Image :  RH7901/RH7902 USB Charging Protocol Controller with 4.5V~5.5V Operating Voltage and Dual-port Control for Multiple USB Charging Protocols

Product Details:
Place of Origin: CN
Brand Name: RONGHE
Certification: rohs
Model Number: RH7901
Document: RH7901RH7902.PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

RH7901/RH7902 USB Charging Protocol Controller with 4.5V~5.5V Operating Voltage and Dual-port Control for Multiple USB Charging Protocols

Description
Product Catalogue: USB Conversion Chip Application Function: USB Charging Chip
Number Of Channels: 1 Operating Voltage: 4.5V~5.5V
Operating Temperature: -20℃~+85℃ Working Current: 140uA
Highlight:

4.5V~5.5V USB Charging Protocol Controller

,

Dual-port Control USB Charging Chip

,

Multiple USB Charging Protocols USB Conversion Chip

RH7901/RH7902 USB charging protocol port controller 4.5V~5.5V
1. Introduction

RH7901/RH7902 is a USB charging protocol port control IC. It can automatically identify the type of charging device and establish a handshake with the device through the corresponding USB charging protocol, enabling it to obtain the maximum charging current while protecting the charging device and saving charging time.

Application scope: Portable power banks, portable chargers, vehicle chargers Wait.

2. Features
  • Operating Voltage: 4.5V to 5.5V
  • Dual-port control function (RH7902): Can independently support two USB charging protocol detection simultaneously
  • Supports multiple USB charging protocols, with automatic switching among them, including:
    • Divider1/Divider2/Divider3 charging protocol (specific for Apple)
    • D+/- set to 1.2V mode (specific for Samsung)
    • BC1.2 DCP and CTIS YD/T 1591-2009 charging protocols Agreement
  • Reliable power-on reset (POR) and low-voltage reset (LVR) performance
  • Various packaging and pin configurations: SOT23-5, SOT23-6
Table 1 Version Description
No. Product model Product packaging Number of protocol ports Support for the maximum power protocol for Apple devices (Note 2*)
1 RH7901 SOT23-5L 1 12W/10W可配置(Divider3/2)
2 RH7901A SOT23-5L 1 12W(Divider3)
3 RH7902 SOT23-6L 2 10W(Divider2)
4 RH7902A SOT23-6L(A) 注1* 2 12W(Divider3)
5 RH7902B SOT23-6L(B) 注1* 2 12W(Divider3)
RH7901/RH7902 USB Charging Protocol Controller with 4.5V~5.5V Operating Voltage and Dual-port Control for Multiple USB Charging Protocols 0 RH7901/RH7902 USB Charging Protocol Controller with 4.5V~5.5V Operating Voltage and Dual-port Control for Multiple USB Charging Protocols 1 RH7901/RH7902 USB Charging Protocol Controller with 4.5V~5.5V Operating Voltage and Dual-port Control for Multiple USB Charging Protocols 2
