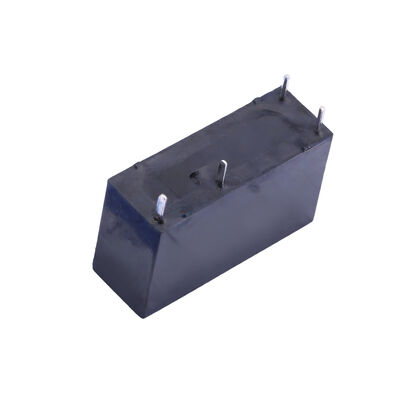

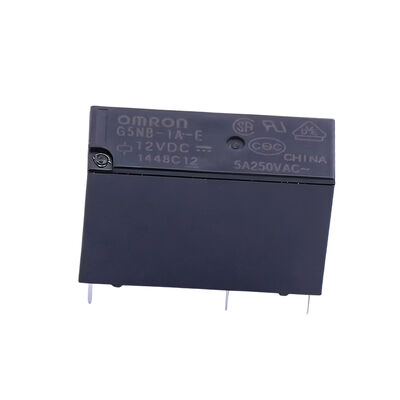

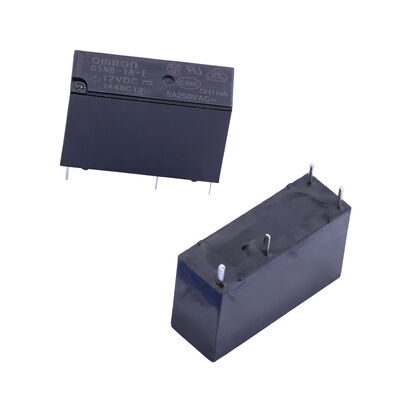

G5NB-1A-E 12VDC SPST-NO Flux-Tight General Purpose Power Relay for High-Capacity Applications

G5NB-1A-E 12VDC SPST-NO Flux-Tight General Purpose Power Relay for High-Capacity Applications
G5NB-1A-E 12VDC SPST-NO Flux-Tight General Purpose Power Relay for High-Capacity Applications G5NB-1A-E 12VDC SPST-NO Flux-Tight General Purpose Power Relay for High-Capacity Applications G5NB-1A-E 12VDC SPST-NO Flux-Tight General Purpose Power Relay for High-Capacity Applications

Large Image :  G5NB-1A-E 12VDC SPST-NO Flux-Tight General Purpose Power Relay for High-Capacity Applications

Product Details:
Place of Origin: CN
Brand Name: G5NB-1A-E DC12
Certification: rohs
Model Number: OMRON
Document: 887936A5E863D007B92E1C8EE85...64.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Supply Ability: 100000
Contact Now Chat Now

G5NB-1A-E 12VDC SPST-NO Flux-Tight General Purpose Power Relay for High-Capacity Applications

Description
Product Category:: General Purpose Relays Product:: Power Relays
Type:: Miniature Coil Voltage:: 12 VDC
Relay Contact Form:: 1 Form A (SPST-NO) Contact Current Rating:: 5 A
Highlight:

12VDC General Purpose Relay

,

SPST-NO Power Relay

,

Flux-Tight Miniature Relay

G5NB-1A-E DC12 General Purpose Relays SPST-NO Flux-Tight 12VDC High-Capacity

Key Features

  • Highly efficient magnetic circuit for high sensitivity (200 mW).
  • Standard model conforms to UL/CSA/VDE standards.
  • Satisfies EN61010 reinforced insulation requirements.
  • IEC/EN 60335-1 conformed. (-HA Model)
  • IEC/EN 60079-15 conformed. (Only for G5NB-1A4, G5NB-1A4-E Model)
  • Reduced power consumption with voltage holding and pulse width modulation (PWM) control (Only for G5NB-@-PW model)

Ordering Information

RoHS Compliant

  • Water heaters
  • Refrigerators
  • Air conditioners
  • Home appliances
  • Small electric appliances
Terminal Shape Market Code Classification Contact form Enclosure rating Model Rated coil voltage Minimum packing unit
PCB terminals Generalpurpose Standard SPST-NO (1a) Flux protection G5NB-1A(-SP) 5VDC, 12VDC, 18VDC, 24VDC 100 pcs/Tray (50 pcs/Tube)
Sealed G5NB-1A4(-SP) 5VDC, 12VDC, 18VDC, 24VDC
Flux protection G5NB-1A-CF(-SP), G5NB-1A-CF-PW(-SP), G5NB-1A-PW(-SP) 5VDC, 12VDC, 24VDC
High-capacity Flux protection G5NB-1A-E(-SP) 5VDC, 12VDC, 18VDC, 24VDC
Sealed G5NB-1A4-E(-SP) 5VDC, 12VDC, 18VDC, 24VDC
HomeAppliance Standard Flux protection G5NB-1A-HA(-SP), G5NB-1A-HA-CF(-SP), G5NB-1A-HA-CF-PW(-SP), G5NB-1A-HA-PW 5VDC, 12VDC, 24VDC
High-capacity Flux protection G5NB-1A-E-HA(-SP) 12VDC, 24VDC
G5NB-1A-E 12VDC SPST-NO Flux-Tight General Purpose Power Relay for High-Capacity Applications 0G5NB-1A-E 12VDC SPST-NO Flux-Tight General Purpose Power Relay for High-Capacity Applications 1G5NB-1A-E 12VDC SPST-NO Flux-Tight General Purpose Power Relay for High-Capacity Applications 2

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time
