TL072ACDR Low-Noise JFET-Input Op Amp with Low Power Consumption and Wide Power Supply Voltage Range

TL072ACDR Low-Noise JFET-Input Op Amp with Low Power Consumption and Wide Power Supply Voltage Range
TL072ACDR Low-Noise JFET-Input Op Amp with Low Power Consumption and Wide Power Supply Voltage Range TL072ACDR Low-Noise JFET-Input Op Amp with Low Power Consumption and Wide Power Supply Voltage Range TL072ACDR Low-Noise JFET-Input Op Amp with Low Power Consumption and Wide Power Supply Voltage Range

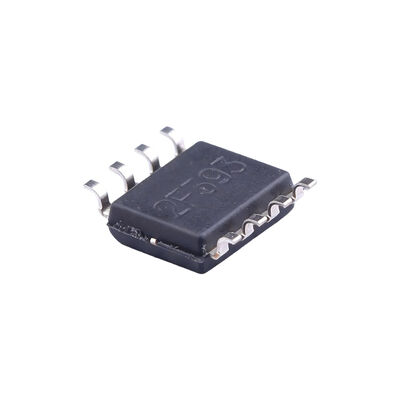

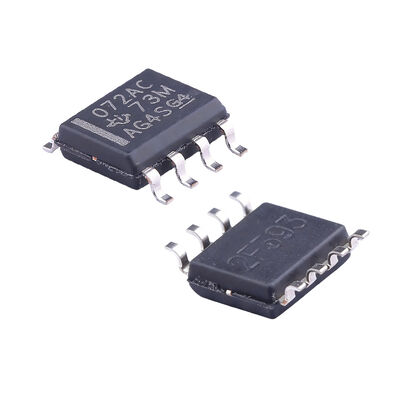

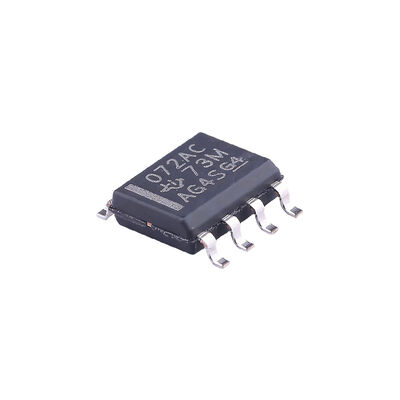

Large Image :  TL072ACDR Low-Noise JFET-Input Op Amp with Low Power Consumption and Wide Power Supply Voltage Range

Product Details:
Place of Origin: CN
Brand Name: TI
Certification: rohs
Model Number: TL072ACDR
Document: tl072a.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

TL072ACDR Low-Noise JFET-Input Op Amp with Low Power Consumption and Wide Power Supply Voltage Range

Description
Product Category:: Operational Amplifiers - Op Amps Number Of CNumber Of Channels: 2 Channel
GBP - Gain Bandwidth Product:: 3 MHz SR - Slew Rate:: 13 V/us
Vos - Input Offset Voltage:: 6 MV Ib - Input Bias Current:: 200 PA
Highlight:

Low-Noise Operational Amplifier

,

Low Power Consumption Op Amp

,

Wide Power Supply Voltage Range JFET-Input Op Amp

TL072ACDR Operational Amplifiers - Op Amps Low-Noise JFET-Input Op Amp A 595-TL072A A 595-TL072ACD
1 Characteristics
  • High slew rate: 20V/μs (TL07xH, typical value)
  • Low offset voltage: 1mV (TL07xH, typical value)
  • Low offset voltage drift: 2μV/°C
  • Low power consumption: 940μA/channel (TL07xH, typical value)
  • Wide common-mode and differential voltage range
    • Common-mode input voltage range includes VCC+
  • Low input bias and offset current
  • Low noise:
    • At f = 1kHz, Vn = 37nV/√Hz (typical value)
  • Output short-circuit protection
  • Low total harmonic distortion: 0.003% (typical value)
  • Wide power supply voltage range:
    • ±2.25V to ±20V, 4.5V to 40V
2 Applications
  • Solar: Series and central inverters
  • Motor drivers: AC and servo drive control and power stage modules
  • Single-phase online UPS
  • Three-phase UPS
  • Professional audio mixer
  • Battery testing equipment
Device model (1) Number of channels Packaging
TL071x Single-channel D(SOIC,8)
DBV(SOT-23,5)
DCK(SC70,5)
P(PDIP,8)
PS(SO,8)
TL072x Dual-channel D(SOIC,8)
DDF(SOT-23-THIN,
8)
P(PDIP,8)
PS(SO,8)
PW(TSSOP,8)
TL072M(2) Dual-channel FK(LCCC,20)
JG(CDIP,8)
U(CFP,10)
TL074x Four channels D(SOIC,14)
DB(SSOP,14)
DYY(SOT-23-THIN,
14)
N(PDIP,14)
NS(SOP,14)
PW(TSSOP,14)
TL074M(2) Four channels FK(LCCC,20)
J(CDIP,14)
W(CFP,14)

TL072ACDR Low-Noise JFET-Input Op Amp with Low Power Consumption and Wide Power Supply Voltage Range 0

TL072ACDR Low-Noise JFET-Input Op Amp with Low Power Consumption and Wide Power Supply Voltage Range 1TL072ACDR Low-Noise JFET-Input Op Amp with Low Power Consumption and Wide Power Supply Voltage Range 2

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
