1N5819W Schottky Diode with 40V Reverse Voltage, Low Forward Voltage Drop, and Guard Ring Construction

1N5819W Schottky Diode with 40V Reverse Voltage, Low Forward Voltage Drop, and Guard Ring Construction
1N5819W Schottky Diode with 40V Reverse Voltage, Low Forward Voltage Drop, and Guard Ring Construction 1N5819W Schottky Diode with 40V Reverse Voltage, Low Forward Voltage Drop, and Guard Ring Construction 1N5819W Schottky Diode with 40V Reverse Voltage, Low Forward Voltage Drop, and Guard Ring Construction

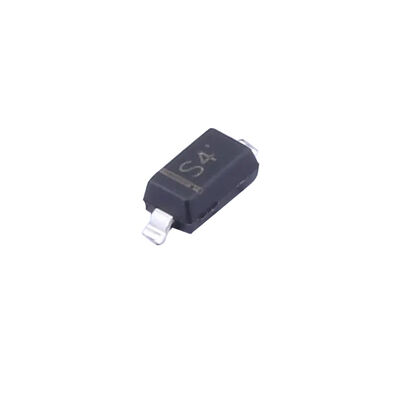

Large Image :  1N5819W Schottky Diode with 40V Reverse Voltage, Low Forward Voltage Drop, and Guard Ring Construction

Product Details:
Place of Origin: CN
Brand Name: JSMSEMI
Certification: rohs
Model Number: 1N5819W
Document: ADD53622154D5B572F84A7B877E...CE.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

1N5819W Schottky Diode with 40V Reverse Voltage, Low Forward Voltage Drop, and Guard Ring Construction

Description
Diode Configuration: Independent Type Positive Voltage Drop (Vf): 600mV@200mA
Direct Current Reverse Withstand Voltage (Vr): 40V Rectified Current: 350mA
Reverse Current (Ir): 5uA@30V Non-repetitive Peak Surge Current (Ifsm): 13A
Highlight:

40V Reverse Voltage Schottky Diode

,

Low Forward Voltage Drop Rectifier Diode

,

Guard Ring Construction 1N5819W Diode

1N5819W Rectron SOD-123,1A,40V,Schottky
Key Features
  • Low Forward Voltage Drop
  • Guard Ring Construction for Transient Protection
  • Negligible Reverse Recovery Time
  • Low Capacitance
MECHANICAL DATA

-Case:SOD-123

-Terminals: Solderable per MIL-STD-750, Method 2026

- Approx. Weight:16mg/0.00056oz

Technical Parameters
Parameter Symbols 1N5819W
Peak Repetitive Reverse Voltage VRRM 40V
RMS reverse voltage VRMS 28V
Working Peak Reverse Voltage Voc 40V
Peak Forward Surge Current, 8.3ms single halfsine-wave superimposed on rated load (JEDEC method) IFSM 13A
1N5819W Schottky Diode with 40V Reverse Voltage, Low Forward Voltage Drop, and Guard Ring Construction 01N5819W Schottky Diode with 40V Reverse Voltage, Low Forward Voltage Drop, and Guard Ring Construction 11N5819W Schottky Diode with 40V Reverse Voltage, Low Forward Voltage Drop, and Guard Ring Construction 2
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
