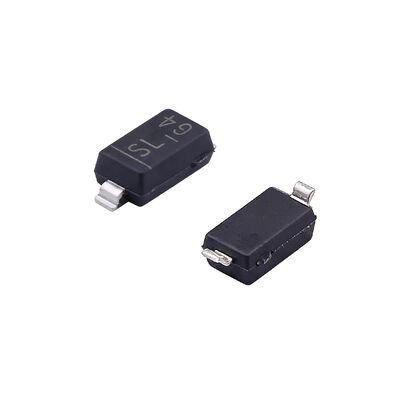

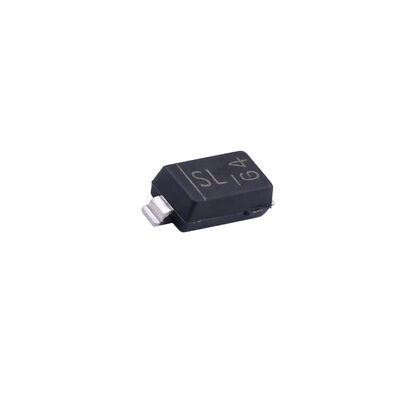

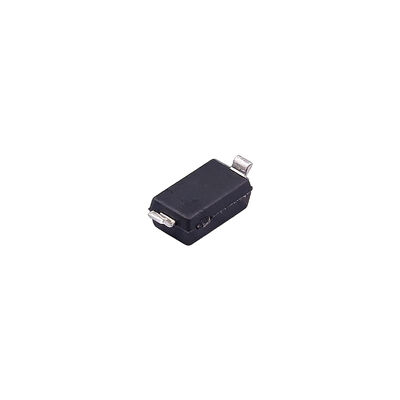

1N5819HW-7-F Schottky Diode Rectifier with 40V Reverse Voltage 1A Forward Current and Low Forward Voltage Drop

Large Image : 1N5819HW-7-F Schottky Diode Rectifier with 40V Reverse Voltage 1A Forward Current and Low Forward Voltage Drop

Product Details:

Place of Origin:	CN
Brand Name:	DIODES
Certification:	rohs
Document:	4458132FAA0A9CA67E9349FC5B3...BD.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8days
Payment Terms:	T/T,Western Union
Supply Ability:	100000

Contact Now Chat Now

1N5819HW-7-F Schottky Diode Rectifier with 40V Reverse Voltage 1A Forward Current and Low Forward Voltage Drop

Description

Product::	Schottky Rectifiers	Mounting Style::	SMD/SMT
Package / Case::	SOD-123-2	Configuration::	Single
Technology::	Si	If - Forward Current::	1 A
Highlight:	40V Reverse Voltage Schottky Diode , 1A Forward Current Rectifier Diode , Low Forward Voltage Drop 1N5819HW-7-F

1N5819HW-7-F Schottky Diodes & Rectifiers Vr/40V Io/1A T/R

Features and Benefits

High Surge Capability
Low Power Loss, High Efficiency
High Current Capability and Low Forward Voltage Drop
Guard Ring Die Construction for Transient Protection
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green" Device (Note 3)
An automotive-compliant part is available under separate datasheet (1N5819HWQ)

Mechanical Data

Package: SOD123
Package Material: Molded Plastic. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Polarity: Cathode Band
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead Free Plating) Solderable per MIL-STD-202, Method 208
Weight: 0.01 grams (Approximate)

Year Code

Year	Code
2003 … 2023	P … K
2024	L
2025	M
2026	N
2027	O
2028	P
2029	R
2030	S
2031	T
2032	U

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
