AD8605ARTZ-REEL7 Precision Amplifier with 10 MHz Gain Bandwidth 20 uV Input Offset Voltage and 2.7 V to 5.5 V Single-Supply CMOS Rail-Rail Op Amp

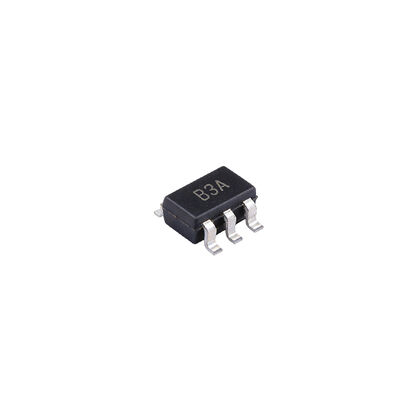

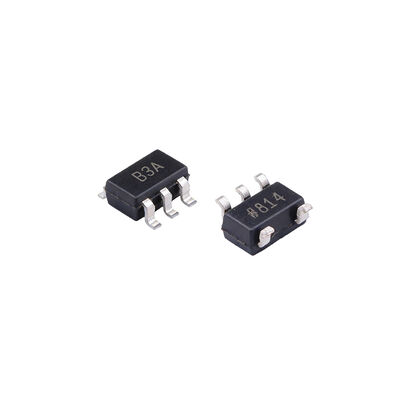

Large Image : AD8605ARTZ-REEL7 Precision Amplifier with 10 MHz Gain Bandwidth 20 uV Input Offset Voltage and 2.7 V to 5.5 V Single-Supply CMOS Rail-Rail Op Amp

Product Details:

Place of Origin:	CN
Brand Name:	ADI
Certification:	rohs
Model Number:	AD8605ARTZ-REEL7
Document:	1457706543879.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8days
Payment Terms:	T/T,Western Union
Supply Ability:	100000

Contact Now Chat Now

AD8605ARTZ-REEL7 Precision Amplifier with 10 MHz Gain Bandwidth 20 uV Input Offset Voltage and 2.7 V to 5.5 V Single-Supply CMOS Rail-Rail Op Amp

Description

GBP - Gain Bandwidth Product::	10 MHz	SR - Slew Rate::	5 V/us
Vos - Input Offset Voltage::	20 UV	Ib - Input Bias Current::	250 PA
Supply Voltage - Max::	5.5 V	Supply Voltage - Min::	2.7 V
Highlight:	10 MHz Gain Bandwidth Precision Amplifier , 20 uV Input Offset Voltage CMOS Rail-Rail Op Amp , 2.7 V to 5.5 V Single-Supply Operational Amplifier

AD8605ARTZ-REEL7 Precision Amplifiers SINGLE, PRECISION CMOS RAIL-RAIL OP AMP

FEATURES

Low offset voltage: 65 µV maximum
Low input bias currents: 1 pA maximum
Low noise: 8 nV/√Hz
Wide bandwidth: 10 MHz
High open-loop gain: 120 dB
Unity gain stable
Single-supply operation: 2.7 V to 5.5 V
MicroCSP™

APPLICATIONS

Photodiode amplification
Battery-powered instrumentation
Multipole filters
Sensors
Barcode scanners
Audio

NOISE PERFORMANCE

Parameter	Symbol	Conditions	Min	Typ	Unit
Peak-to-Peak Noise	en p-p	f = 0.1 Hz to 10 Hz	2.3	3.5	µV p-p
Voltage Noise Density	en	f = 1 kHz	8	12	nV/√Hz
Voltage Noise Density	en	f = 10 kHz		6.5	nV/√Hz
Current Noise Density	in	f = 1 kHz	0.01		pA/√Hz

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
