BSMD1812-200-30V Surface Mount PTC Device with 30V Pressure Resistance 40A Maximum Current and RoHS Compliant

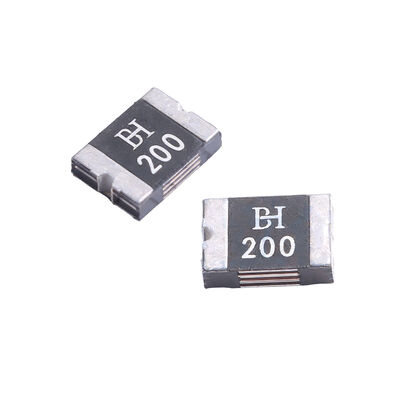

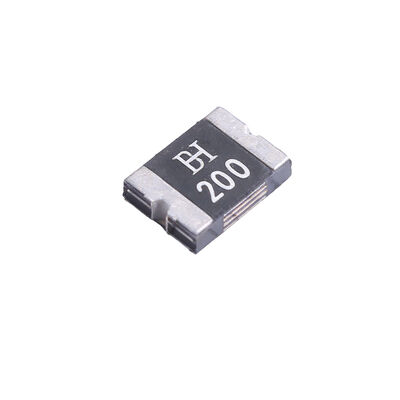

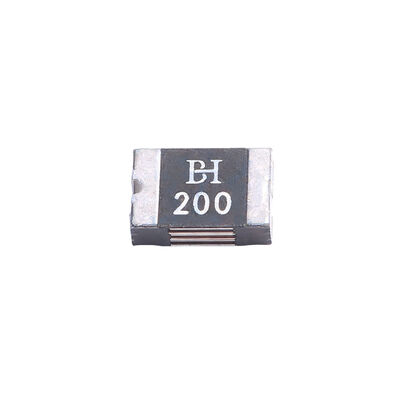

Large Image : BSMD1812-200-30V Surface Mount PTC Device with 30V Pressure Resistance 40A Maximum Current and RoHS Compliant

Product Details:

Place of Origin:	CN
Brand Name:	BHFUSE
Certification:	rohs
Model Number:	BSMD1812-200-30V
Document:	B9B584AA29F5C747EA0BFD5D6B2...7B.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8days
Payment Terms:	T/T,Western Union
Supply Ability:	100000

Contact Now Chat Now

BSMD1812-200-30V Surface Mount PTC Device with 30V Pressure Resistance 40A Maximum Current and RoHS Compliant

Description

Pressure Resistance (Vmax):	30V	Maximum Current (Imax):	40A
Maintain The Current (Ihold):	2A	Trip Current (Itrip):	4A
Power Consumption (Pd):	1W	Initial State Resistance Value (Rmin):	20mΩ
Highlight:	30V Pressure Resistance PTC Device , 40A Maximum Current Surface Mount PTC , RoHS Compliant Resettable Fuse

Features

Size 0.18*0.12 inch /4.5*3.2 mm
RoHS compliant, lead-free and halogen-free
Fast response to fault current
Low resistance
Low profile
Compatible with high temperature solders

Applications

Computer, Mobile phones, Multimedia
Automotive, Industrial controls, Telephony and broadband
Game machines, Portable electronics, Battery

Test Conditions

Test Conditions	Resistance change
Passive aging +85°C, 1000 hours	±5%typical
Humidity aging +85°C, 85% R.H. , 168 hours	±5%typical
Thermal shock +85°C to -40°C, 20 times	±33%typical
Resistance to solvent MIL-STD-202,Method 215	No change
Vibration MIL-STD-202,Method 201	No change

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
