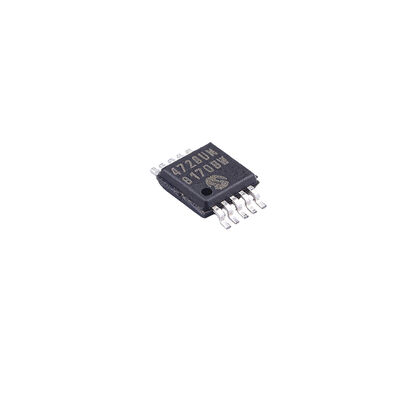

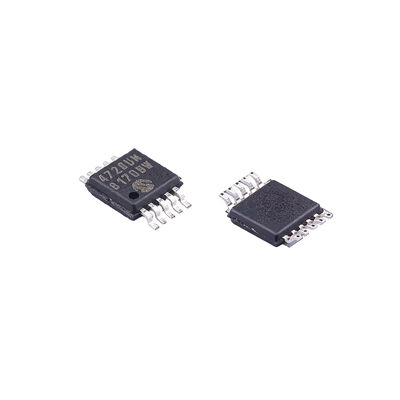

MCP4728-E/UN 12-bit Resolution Quad Channel Digital to Analog Converter with I2C Interface

• 12-Bit Voltage Output DAC with Four Buffered Outputs
• On-Board Nonvolatile Memory (EEPROM) for DAC Codes and I2C™ Address Bits
• Internal or External Voltage Reference Selection
• Output Voltage Range:
  • Using Internal VREF (2.048V):
    • 0.000V to 2.048V with Gain Setting = 1
    • 0.000V to 4.096V with Gain Setting = 2
  • Using External VREF (VDD):
    • 0.000V to VDD
• ±0.2 Least Significant Bit (LSB) Differential Nonlinearity (DNL) (typical)
• Fast Settling Time: 6 µs (typical)
• Normal or Power-Down Mode
• Low Power Consumption
• Single-Supply Operation: 2.7V to 5.5V
• I2C Interface:
  • Address bits: User Programmable to EEPROM
  • Standard (100 kbps), Fast (400 kbps) and High Speed (HS) Mode (3.4 Mbps)
• 10-Lead MSOP Package
• Extended Temperature Range: -40°C to +125°C

Unless otherwise indicated, all parameters apply at VDD = +2.7V to 5.5V, VSS = 0V, RL =5kΩ, CL = 100 pF, GX = 1, TA = -40°C to +125°C. Typical values are at +25°C, VIH = VDD, VIL = VSS.
