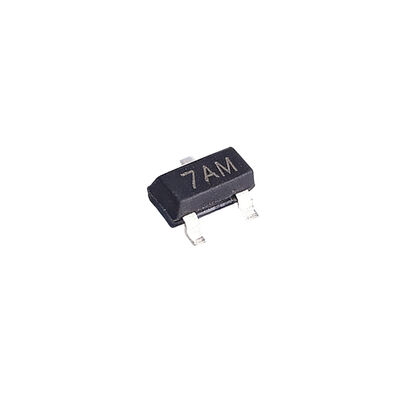

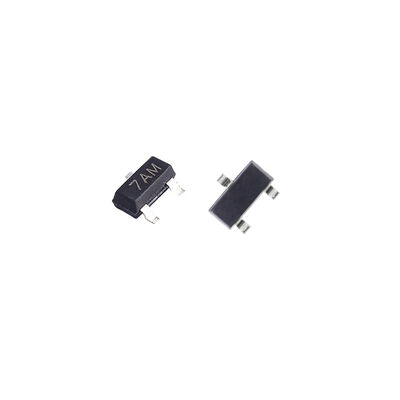

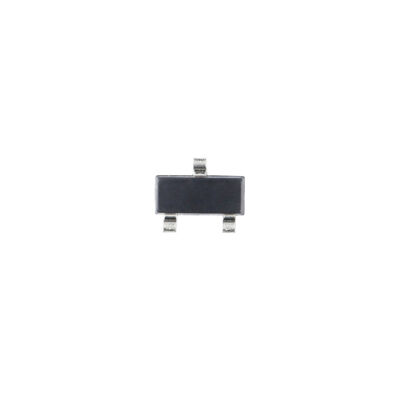

SM712 Bi-directional 7/12V Low Capacitance High ESD Protection TVS Diode for RS-485 Transceivers

SM712 Bi-directional 7/12V Low Capacitance High ESD Protection TVS Diode for RS-485 Transceivers
SM712 Bi-directional 7/12V Low Capacitance High ESD Protection TVS Diode for RS-485 Transceivers SM712 Bi-directional 7/12V Low Capacitance High ESD Protection TVS Diode for RS-485 Transceivers SM712 Bi-directional 7/12V Low Capacitance High ESD Protection TVS Diode for RS-485 Transceivers

Large Image :  SM712 Bi-directional 7/12V Low Capacitance High ESD Protection TVS Diode for RS-485 Transceivers

Product Details:
Place of Origin: CN
Brand Name: R+O
Certification: rohs
Model Number: SM712
Document: EB60B391BD2D8DB6FA3997365C6...F4.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

SM712 Bi-directional 7/12V Low Capacitance High ESD Protection TVS Diode for RS-485 Transceivers

Description
Product Catalog: Electrostatic And Surge Protection (TVS/ESD) Polarity: Bidirectior
Reverse Cut-offVoltage (Vrwm): 12V: 7V Clamp Voltage: 16V;26V
Peak PulseCurrent (lpp): 12A Peak PulsePower (Ppp): 300W
Highlight:

7/12V ESD Protection Diode

,

Low Capacitance TVS Diode

,

High ESD Protection Bi-directional Diode

SM712 Bi-directional 7/12V Normal Capacitance ESD
Features
  • Normal capacitance: C1,2 to 3=75pF(Max.)
  • Protects two -7V to +12V lines
  • Low leakage current
  • IEC 61000-4-2 (ESD Air): ±20kV
  • IEC 61000-4-2 (ESD Contact): ±15kV
  • IEC 61000-4-5 (Lightning 8/20µs): 12A
Applications
  • Protection of RS-485 transceivers with extended common-mode range
  • Security systems
  • Automatic teller machines
  • HFC systems
  • Net works
SYMBOL PARAMETER
VC
Clamping Voltage @ IPP
VBR
Breakdown Voltage @ IT
IPP
Peak Pulse Current
IT
Test Current
IR
Reverse Leakage Current @ VRWM
VRWM
Peak Reverse Working Voltage
PPP
Peak Pulse Power Dissipation
CJ
Junction Capacitance @ VR=0V,f=1MHz
IF
Forward Current
VF
Forward Voltage @IF
SM712 Bi-directional 7/12V Low Capacitance High ESD Protection TVS Diode for RS-485 Transceivers 0SM712 Bi-directional 7/12V Low Capacitance High ESD Protection TVS Diode for RS-485 Transceivers 1SM712 Bi-directional 7/12V Low Capacitance High ESD Protection TVS Diode for RS-485 Transceivers 2
