INA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias Current

INA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias Current
INA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias Current INA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias Current INA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias Current

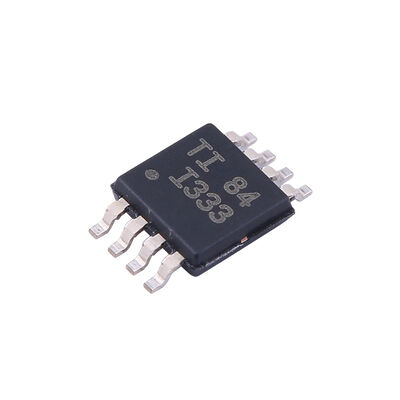

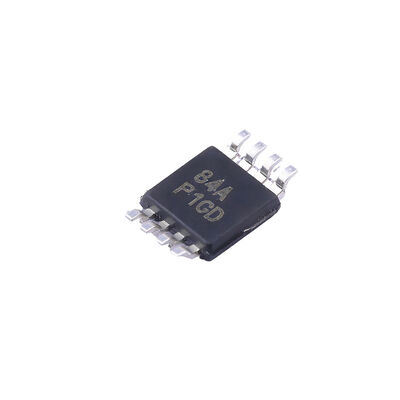

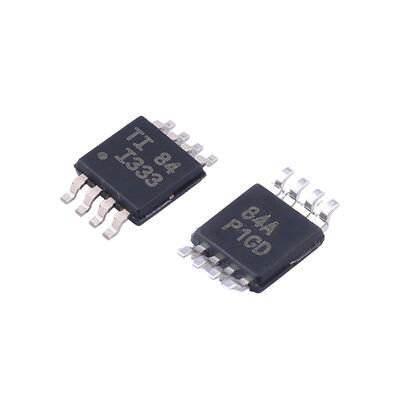

Large Image :  INA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias Current

Product Details:
Place of Origin: CN
Brand Name: TI
Certification: rohs
Model Number: INA333AIDGKR
Document: ina333.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: Western Union,T/T
Supply Ability: 100000
Contact Now Chat Now

INA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias Current

Description
Number Of Channels:: 1 Channel 3 DB Bandwidth:: 150 KHz
SR - Slew Rate:: 160 MV/us CMRR - Common Mode Rejection Ratio:: 100 DB
Ib - Input Bias Current:: 200 PA Vos - Input Offset Voltage:: 25 UV
Highlight:

25 μV Offset Voltage Instrumentation Amplifier

,

100 dB CMRR Precision Amplifier

,

200 pA Input Bias Current Low Power Amplifier

INA333AIDGKR Instrumentation Amplifiers Lo Pwr Prec Inst Amp A 595-INA333AIDGKT A 595-INA333AIDGKT
Features
  • Low Offset Voltage: 25 μV (Maximum), G ≥ 100
  • Low Drift: 0.1 μV/°C, G ≥ 100
  • Low Noise: 50 nV/√Hz, G ≥ 100
  • High CMRR: 100 dB (Minimum), G ≥ 10
  • Low Input Bias Current: 200 pA (Maximum)
  • Supply Range: 1.8 V to 5.5 V
  • Input Voltage: (V–) +0.1 V to (V+) –0.1 V
  • Output Range: (V–) +0.05 V to (V+) –0.05 V
  • Low Quiescent Current: 50 μA
  • Operating Temperature: –40°C to +125°C
  • RFI Filtered Inputs
  • 8-Pin VSSOP and 8-Pin WSON Packages
Applications
  • Bridge Amplifiers
  • ECG Amplifiers
  • Pressure Sensors
  • Medical Instrumentation
  • Portable Instrumentation
  • Weigh Scales
  • Thermocouple Amplifiers
  • RTD Sensor Amplifiers
  • Data Acquisition
Absolute Maximum Ratings
Parameter Min Max Unit
Supply voltage 7
V
Analog input voltage(2) (V–) – 0.3 (V+) + 0.3 V
Output short-circuit(3) Continuous
Operating temperature, TA –40 150 °C
Junction temperature, TJ
150 °C
Storage temperature, Tstg –65 150 °C

INA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias Current 0INA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias Current 1INA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias Current 2

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
