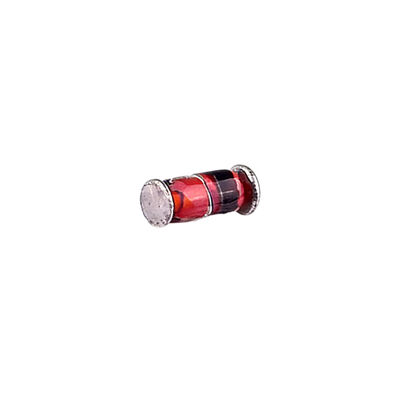

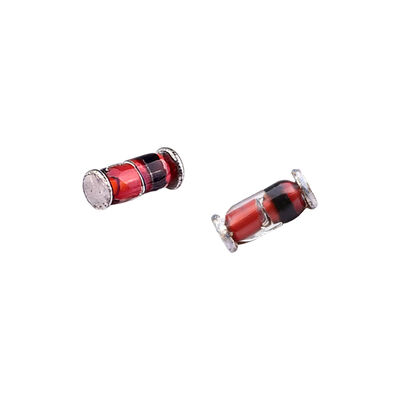

LL4148 Small Signal Switching Diode with 75V Peak Reverse Voltage 200mA Forward Current and 4 ns Recovery Time

LL4148 Small Signal Switching Diode with 75V Peak Reverse Voltage 200mA Forward Current and 4 ns Recovery Time
LL4148 Small Signal Switching Diode with 75V Peak Reverse Voltage 200mA Forward Current and 4 ns Recovery Time LL4148 Small Signal Switching Diode with 75V Peak Reverse Voltage 200mA Forward Current and 4 ns Recovery Time LL4148 Small Signal Switching Diode with 75V Peak Reverse Voltage 200mA Forward Current and 4 ns Recovery Time

Large Image :  LL4148 Small Signal Switching Diode with 75V Peak Reverse Voltage 200mA Forward Current and 4 ns Recovery Time

Product Details:
Place of Origin: CN
Brand Name: MDD
Certification: rohs
Model Number: LL4148
Document: B4470C6C74F6E5C42FC82626064...FD.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

LL4148 Small Signal Switching Diode with 75V Peak Reverse Voltage 200mA Forward Current and 4 ns Recovery Time

Description
Recovery Time:: 4 Ns Vf - Forward Voltage:: 1 V
Ir - Reverse Current:: 5 UA Peak Reverse Voltage:: 100 V
Max Surge Current:: 2 A If - Forward Current:: 150 MA
Highlight:

75V Small Signal Switching Diode

,

200mA Small Signal Diode

,

4 ns Recovery Time LL4148 Diode

LL4148 Small Signal Switching Diodes Small Signal Diode 75V 200mA

Fast switching diode in MiniMELF case especially suitedfor automatic surface mounting

LL4148 Small Signal Switching Diode with 75V Peak Reverse Voltage 200mA Forward Current and 4 ns Recovery Time 0LL4148 Small Signal Switching Diode with 75V Peak Reverse Voltage 200mA Forward Current and 4 ns Recovery Time 1LL4148 Small Signal Switching Diode with 75V Peak Reverse Voltage 200mA Forward Current and 4 ns Recovery Time 2

Parameter Symbol Value Unit
Peak Reverse Voltage VRM 100 V
Reverse Voltage VR 75 V
Average Rectified Forward Current IF(AV) 200 mA
Non-repetitive Peak Forward Surge Current at t = 1 s IFSM 0.5 A
Non-repetitive Peak Forward Surge Current at t = 1 ms IFSM 1 A
Non-repetitive Peak Forward Surge Current at t = 1 μs IFSM 4 A
Power Dissipation Ptot 500 1) mW
Junction Temperature Tj 175 °C
Storage Temperature Range Tstg - 65 to + 175 °C

1) Valid provided that electrodes are kept at ambient temperature.
