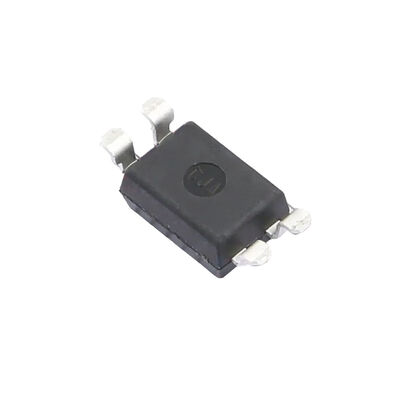

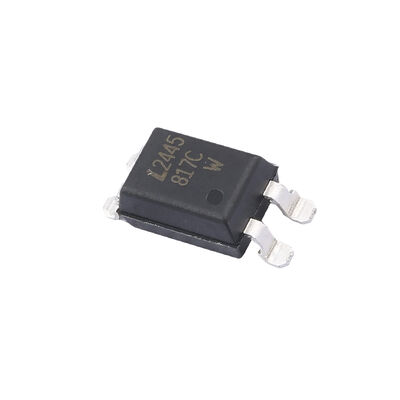

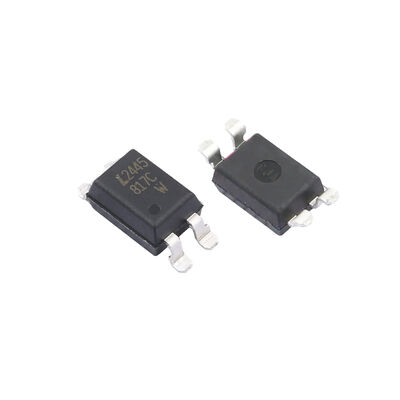

LTV-817S-TA1-C Transistor Output Optocoupler with 5000 Vrms Isolation Voltage and 50% Current Transfer Ratio in SMD/SMT Package

LTV-817S-TA1-C Transistor Output Optocoupler with 5000 Vrms Isolation Voltage and 50% Current Transfer Ratio in SMD/SMT Package
LTV-817S-TA1-C Transistor Output Optocoupler with 5000 Vrms Isolation Voltage and 50% Current Transfer Ratio in SMD/SMT Package LTV-817S-TA1-C Transistor Output Optocoupler with 5000 Vrms Isolation Voltage and 50% Current Transfer Ratio in SMD/SMT Package LTV-817S-TA1-C Transistor Output Optocoupler with 5000 Vrms Isolation Voltage and 50% Current Transfer Ratio in SMD/SMT Package

Large Image :  LTV-817S-TA1-C Transistor Output Optocoupler with 5000 Vrms Isolation Voltage and 50% Current Transfer Ratio in SMD/SMT Package

Product Details:
Place of Origin: CN
Brand Name: LTV-817S-TA1-C
Certification: rohs
Model Number: LTV-817S-TA1-C
Document: C123318_E42EF5DEDBAEC826842...3B.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

LTV-817S-TA1-C Transistor Output Optocoupler with 5000 Vrms Isolation Voltage and 50% Current Transfer Ratio in SMD/SMT Package

Description
Product Category:: Transistor Output Optocouplers Mounting Style:: SMD/SMT
Package / Case:: PDIP-4 Gull Wing Number Of Channels:: 1 Channel
Isolation Voltage:: 5000 Vrms Output Type:: NPN Phototransistor
Highlight:

5000 Vrms Isolation Voltage Optocoupler

,

50% Current Transfer Ratio Optocoupler

,

SMD/SMT Mounting Transistor Output Optocoupler

LTV-817S-TA1-C Transistor Output Optocouplers Optocoupler 50% 5kv 4Pin SMT

FEATURES

  • Current transfer ratio( CTR : MIN. 50% at IF = 5mA, VCE = 5V )
  • High input-output isolation voltage( Viso = 5,000Vrms )
  • Response time( tr : TYP. 4s at VCE = 2V, IC = 2mA, RL = 100 )
  • Dual-in-line package :LTV-817 : 1-channel type
  • Wide lead spacing package :LTV-817M : 1-channel type
  • Surface mounting package :LTV-817S : 1-channel type
  • Tape and reel packaging :LTV-817S-TA : 1-channel typeLTV-817S-TA1 : 1-channel typeLTV-817S-TP : 1-channel type

Safety approval

  • UL 1577, Cert. No.E113898
  • CSA CA5A, Cert. No. 1020087 (CA 91533-1)
  • FIMKO EN/IEC 60950-1, EN/IEC 60065; Cert. No.NCS/FI 24426 M3
  • NEMKO EN/IEC 60950-1,EN/IEC 60065; Cert. No.P08209622/A1
  • DEMKO EN/IEC 60950-1,EN/IEC 60065; Cert. No.314703-02
  • SEMKO EN/IEC 60950-1,EN/IEC 60065; Cert. No. 1119078
  • VDE DIN EN60747-5-5, Cert. No. 40015248
  • CQC GB8898-2011/GB4943.1-2011, Cert.No.CQC10001054420/CQC10001054421

RoHS compliance All materials be used in device are followed EU RoHS directive (No.2002/95/EC).

ESD pass HBM 8000V/MM2000V

MSL class1

Description Symbol Dimensions in mm ( inches )

Description Symbol Dimensions in mm (inches)
Tape wide W 16 ± 0.3 ( .63 )
Pitch of sprocket holes P0 4 ± 0.1 ( .15 )
Distance of compartment FP2 7.5 ± 0.1 ( .295 )
2 ± 0.1 ( .079 )
Distance of compartment to compartment P1 12 ± 0.1 ( .472 )
LTV-817S-TA1-C Transistor Output Optocoupler with 5000 Vrms Isolation Voltage and 50% Current Transfer Ratio in SMD/SMT Package 0 LTV-817S-TA1-C Transistor Output Optocoupler with 5000 Vrms Isolation Voltage and 50% Current Transfer Ratio in SMD/SMT Package 1 LTV-817S-TA1-C Transistor Output Optocoupler with 5000 Vrms Isolation Voltage and 50% Current Transfer Ratio in SMD/SMT Package 2

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
