AT24C02C-PUM EEPROM 2K 256x8 2-WIRE 1.8V MATT-TIN

AT24C02C-PUM EEPROM 2K 256x8 2-WIRE 1.8V MATT-TIN
AT24C02C-PUM EEPROM 2K 256x8 2-WIRE 1.8V MATT-TIN AT24C02C-PUM EEPROM 2K 256x8 2-WIRE 1.8V MATT-TIN AT24C02C-PUM EEPROM 2K 256x8 2-WIRE 1.8V MATT-TIN

Large Image :  AT24C02C-PUM EEPROM 2K 256x8 2-WIRE 1.8V MATT-TIN

Product Details:
Place of Origin: CN
Brand Name: MICROCHIP
Certification: rohs
Model Number: AT24C02C-PUM
Document: 1457707316447 (1).pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

AT24C02C-PUM EEPROM 2K 256x8 2-WIRE 1.8V MATT-TIN

Description
Memory Size:: 2 Kbit Interface Type:: 2-Wire, I2C
Maximum Clock Frequency:: 1 MHz Organization:: 256 X 8
Package / Case:: PDIP-8 Access Time:: 550 Ns
Highlight:

AT24C02C-PUM EEPROM 2K memory

,

256x8 EEPROM chip 1.8V

,

2-wire EEPROM with MATT-TIN

AT24C02C-PUM EEPROM 2K 256x8 2-WIRE 1.8V MATT-TIN
The AT24C02C-PUM is a 2K EEPROM organized as 256 x 8, featuring 2-wire serial interface and 1.8V operation with matt-tin finish.
Key Features
  • Low-voltage operation: VCC = 1.7V to 5.5V
  • Internally organized as 256 x 8 (2K)
  • I2C compatible (2-wire) serial interface
  • Schmitt Trigger, filtered inputs for noise suppression
  • Bidirectional data transfer protocol
  • 400kHz (1.7V) and 1MHz (2.5V, 2.7V, 5.0V) compatibility
  • Write Protect pin for hardware data protection
  • 8-byte Page Write mode with partial page writes allowed
  • Self-timed write cycle (5ms max)
  • High-reliability: 1,000,000 write cycles endurance
  • 100 years data retention
  • Green package options (Pb/Halide-free/RoHS-compliant)
  • Available in 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 5-lead SOT23, and 8-ball VFBGA
  • Die sale options: wafer form and tape and reel available
Pin Configuration
Pin Name Function
A0 - A2 Address Inputs
SDA Serial Data
SCL Serial Clock Input
WP Write Protect
GND Ground
VCC Power Supply
Product Images

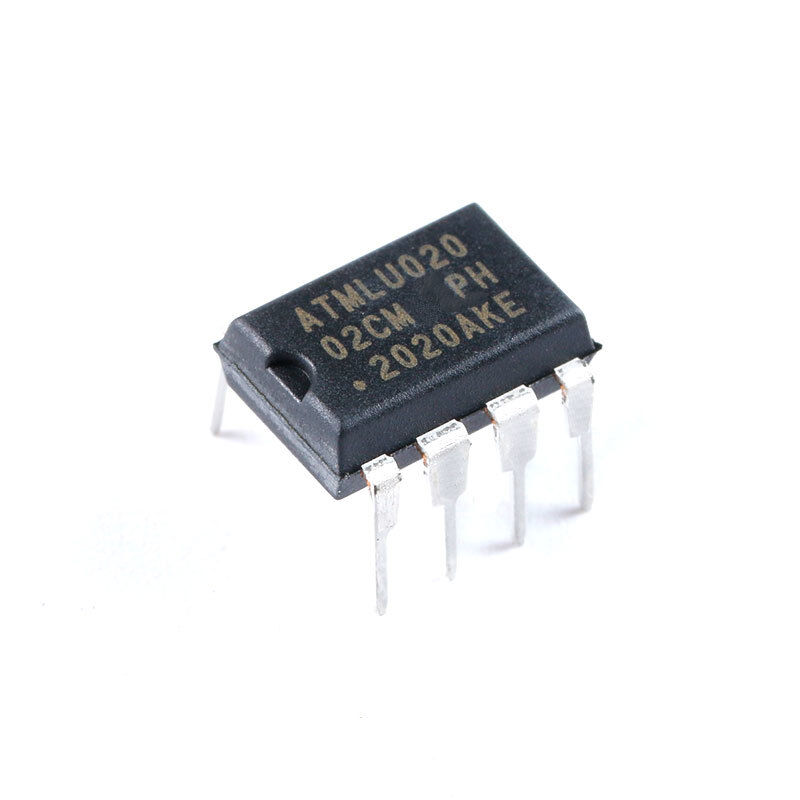

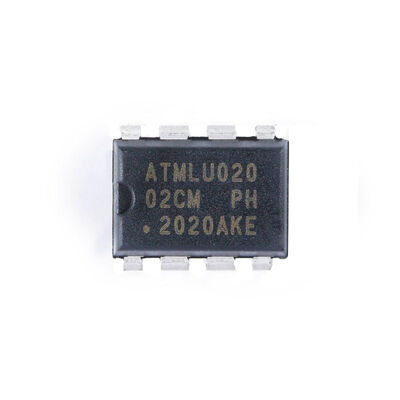

AT24C02C-PUM EEPROM 2K 256x8 2-WIRE 1.8V MATT-TIN 0 AT24C02C-PUM EEPROM 2K 256x8 2-WIRE 1.8V MATT-TIN 1 AT24C02C-PUM EEPROM 2K 256x8 2-WIRE 1.8V MATT-TIN 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
