AT24C16C-SSHM-T EEPROM SERIAL EEPROM 16K 2K X 8 2-WIRE 1.7V

AT24C16C-SSHM-T EEPROM SERIAL EEPROM 16K 2K X 8 2-WIRE 1.7V
AT24C16C-SSHM-T EEPROM SERIAL EEPROM 16K 2K X 8 2-WIRE 1.7V AT24C16C-SSHM-T EEPROM SERIAL EEPROM 16K 2K X 8 2-WIRE 1.7V AT24C16C-SSHM-T EEPROM SERIAL EEPROM 16K 2K X 8 2-WIRE 1.7V

Large Image :  AT24C16C-SSHM-T EEPROM SERIAL EEPROM 16K 2K X 8 2-WIRE 1.7V

Product Details:
Place of Origin: CN
Brand Name: MICROCHIP
Certification: rohs
Model Number: AT24C16C-SSHM-T
Document: C116708_1506321360685990117...17.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

AT24C16C-SSHM-T EEPROM SERIAL EEPROM 16K 2K X 8 2-WIRE 1.7V

Description
Access Time:: 450 Ns Supply Voltage - Min:: 1.7 V
Supply Voltage - Max:: 5.5 V Mounting Style:: SMD/SMT
Maximum Operating Temperature:: + 85 C Minimum Operating Temperature:: - 40 C
Highlight:

AT24C16C EEPROM 16K memory

,

serial EEPROM 2-wire interface

,

1.7V low voltage EEPROM

AT24C16C-SSHM-T EEPROM SERIAL EEPROM 16K 2K X 8 2-WIRE 1.7V
Product Overview

The AT24C16C-SSHM-T is a 16K serial EEPROM featuring I2C-compatible 2-wire interface and low-voltage operation from 1.7V to 5.5V. Organized as 2,048 x 8, this memory device offers reliable data storage with advanced protection features.

Standard Features
  • Low-voltage and standard-voltage operation
  • VCC = 1.7V to 5.5V
  • Internally organized as 2,048 x 8 (16K)
  • I2C-compatible (2-wire) serial interface
  • Schmitt Trigger, filtered inputs for noise suppression
  • Bidirectional data transfer protocol
  • 1MHz (2.5V, 2.7V, 5V), 400kHz (1.7V) compatibility
  • Write Protect pin for hardware data protection
  • 16-byte Page Write mode
  • Partial page writes allowed
  • Self-timed write cycle (5ms max)
  • High-reliability design
  • Endurance: 1,000,000 write cycles
  • Data retention: 100 years
  • Green package options (Pb/Halide-free/RoHS compliant)
  • Available in 8-lead PDIP, 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-pad XDFN, 5-lead SOT23, and 8-ball VFBGA
  • Die options: wafer form and tape and reel
Pin Configuration
Pin Name Function
NC No Connect
SDA Serial Data
SCL Serial Clock Input
WP Write Protect
GND Ground
VCC Power Supply
Product Images

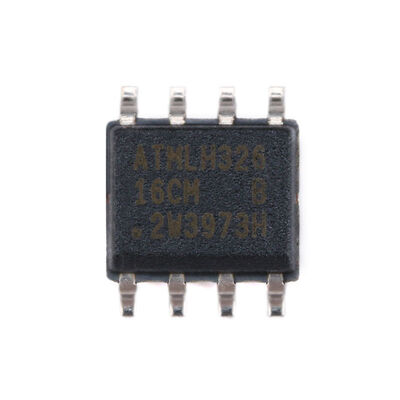

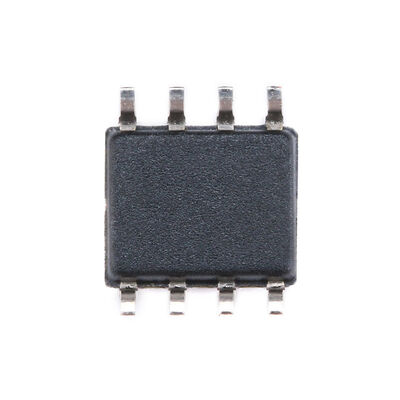

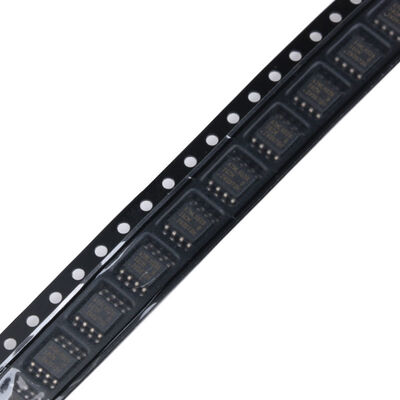

AT24C16C-SSHM-T EEPROM SERIAL EEPROM 16K 2K X 8 2-WIRE 1.7V 0 AT24C16C-SSHM-T EEPROM SERIAL EEPROM 16K 2K X 8 2-WIRE 1.7V 1 AT24C16C-SSHM-T EEPROM SERIAL EEPROM 16K 2K X 8 2-WIRE 1.7V 2
