AT24C64D-SSHM-T EEPROM SERIAL EEPROM 64K 2-WIRE 1.7V

AT24C64D-SSHM-T EEPROM SERIAL EEPROM 64K 2-WIRE 1.7V
AT24C64D-SSHM-T EEPROM SERIAL EEPROM 64K 2-WIRE 1.7V AT24C64D-SSHM-T EEPROM SERIAL EEPROM 64K 2-WIRE 1.7V AT24C64D-SSHM-T EEPROM SERIAL EEPROM 64K 2-WIRE 1.7V

Large Image :  AT24C64D-SSHM-T EEPROM SERIAL EEPROM 64K 2-WIRE 1.7V

Product Details:
Place of Origin: CN
Brand Name: MICROCHIP
Certification: rohs
Model Number: AT24C64D-SSHM-T
Document: 1457707264683.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Supply Ability: 100000
Contact Now Chat Now

AT24C64D-SSHM-T EEPROM SERIAL EEPROM 64K 2-WIRE 1.7V

Description
Operating Supply Current:: 2 MA Operating Supply Voltage:: 1.7 V To 5.5 V
Product Type:: EEPROM Subcategory:: Memory & Data Storage
Supply Current - Max:: 3 MA Unit Weight:: 0.019048 Oz
Highlight:

AT24C64D EEPROM 64K 2-Wire

,

Serial EEPROM 1.7V low voltage

,

EEPROM chip with 2-Wire interface

AT24C64D-SSHM-T EEPROM SERIAL EEPROM 64K 2-WIRE 1.7V
Product Overview
AT24C64D-SSHM-T EEPROM SERIAL EEPROM 64K 2-WIRE 1.7V
Key Features
  • Low-voltage and standard-voltage operation
  • VCC = 1.7V to 5.5V
  • Internally organized as 8,192 x 8 (64K)
  • I2C-compatible (2-Wire) serial interface
  • Schmitt Trigger, filtered inputs for noise suppression
  • Bidirectional data transfer protocol
  • 400kHz (1.7V) and 1MHz (2.5V, 2.7V, 5.0V) compatibility
  • Write Protect pin for hardware protection
  • 32-byte Page Write mode
  • Partial Page Writes allowed
  • Self-timed Write cycle (5ms max)
  • High reliability
  • Endurance: 1,000,000 write cycles
  • Data retention: 100 years
  • Lead-free/Halogen-free devices available
  • Green package options (Pb/Halide-free/RoHS compliant)
  • 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 8-pad XDFN, 6-ball WLCSP, 5-ball WLCSP, and 8-ball VFBGA packages
  • Die sale options: wafer form, waffle pack, and bumped wafers
Pin Functions
Pin Function
A0 Address Input
A1 Address Input
A2 Address Input
GND Ground
SDA Serial Data
SCL Serial Clock Input
WP Write Protect
VCC Device Power Supply

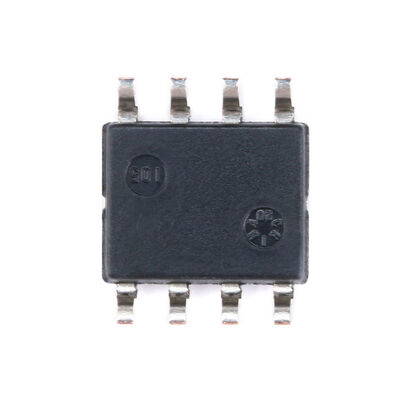

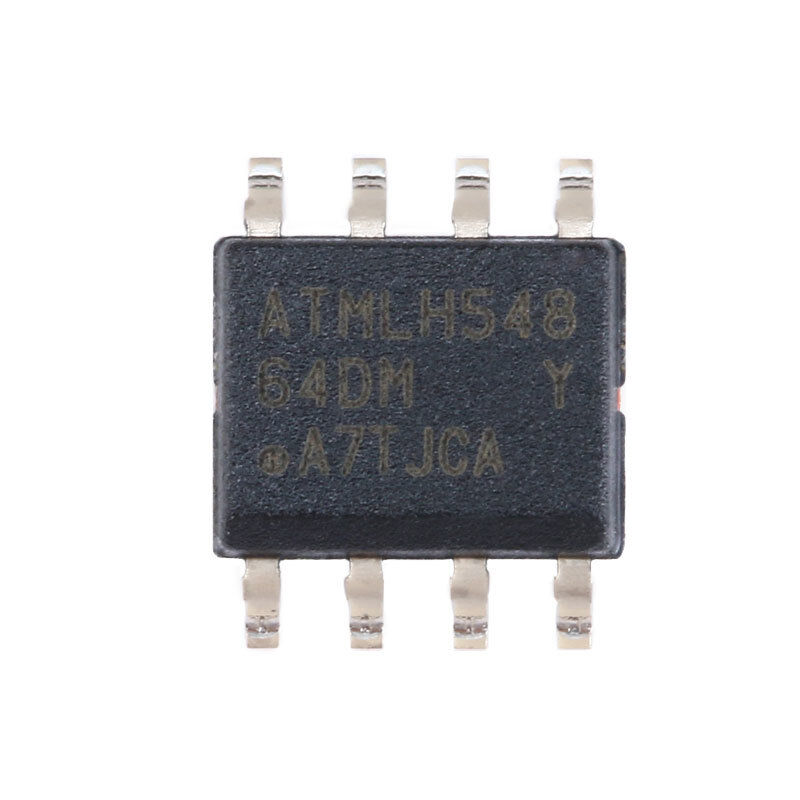

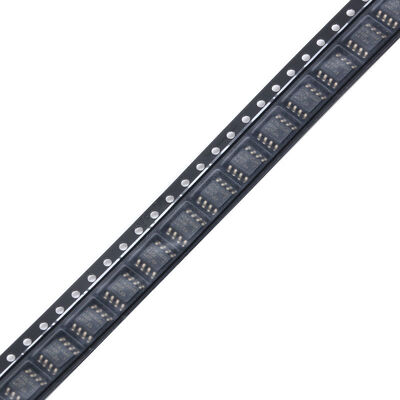

Product Images
AT24C64D-SSHM-T EEPROM SERIAL EEPROM 64K 2-WIRE 1.7V 0 AT24C64D-SSHM-T EEPROM SERIAL EEPROM 64K 2-WIRE 1.7V 1 AT24C64D-SSHM-T EEPROM SERIAL EEPROM 64K 2-WIRE 1.7V 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
