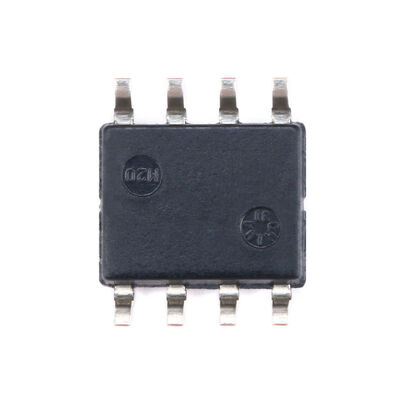

AT24C128C-SSHM-T EEPROM SERIAL EEPROM 128K 16K x 8 2WIRE 1.7V

AT24C128C-SSHM-T EEPROM SERIAL EEPROM 128K 16K x 8 2WIRE 1.7V
AT24C128C-SSHM-T EEPROM SERIAL EEPROM 128K 16K x 8 2WIRE 1.7V AT24C128C-SSHM-T EEPROM SERIAL EEPROM 128K 16K x 8 2WIRE 1.7V AT24C128C-SSHM-T EEPROM SERIAL EEPROM 128K 16K x 8 2WIRE 1.7V

Large Image :  AT24C128C-SSHM-T EEPROM SERIAL EEPROM 128K 16K x 8 2WIRE 1.7V

Product Details:
Place of Origin: CN
Brand Name: MICROCHIP
Certification: rohs
Model Number: AT24C128C-SSHM-T
Document: C616767_73C40D6AF3E7F03B300...94.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

AT24C128C-SSHM-T EEPROM SERIAL EEPROM 128K 16K x 8 2WIRE 1.7V

Description
Country Of Diffusion:: Not Available Country Of Origin:: TH
Moisture Sensitive:: Yes Operating Supply Voltage:: 1.7 V To 5.5 V
Product Type:: EEPROM Subcategory:: Memory & Data Storage
Supply Current - Max:: 3 MA Unit Weight:: 0.019048 Oz
Highlight:

AT24C128C EEPROM 128K 2-wire

,

serial EEPROM 16K x 8

,

1.7V EEPROM chip with warranty

AT24C128C-SSHM-T EEPROM
Serial EEPROM 128K (16K x 8) 2-Wire 1.7V
Product Features
  • Low-Voltage Operation: VCC = 1.7V to 5.5V
  • Internally Organized as 16,384 x 8 (128K)
  • Industrial Temperature Range: -40°C to +85°C
  • I2C-Compatible (Two-Wire) Serial Interface:
    • 100 kHz Standard Mode, 1.7V to 5.5V
    • 400 kHz Fast Mode, 1.7V to 5.5V
    • 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V
  • Schmitt Triggers with Filtered Inputs for Noise Suppression
  • Bidirectional Data Transfer Protocol
  • Write-Protect Pin for Full Array Hardware Data Protection
  • Ultra Low Power Consumption:
    • Active Current: 3 mA maximum
    • Standby Current: 6 μA maximum
  • 64-Byte Page Write Mode (partial page writes allowed)
  • Random and Sequential Read Modes
  • Self-Timed Write Cycle within 5 ms Maximum
  • High Reliability:
    • Endurance: 1,000,000 write cycles
    • Data retention: 100 years
  • Green Package Options (Lead-free/Halide-free/RoHS compliant)
  • Die Sale Options: Wafer Form and Bumped Wafers
Electrical Characteristics
Symbol Test Condition Max. Units Conditions
CI/O Input/Output Capacitance (SDA) 8 pF VI/O = 0V
Product Documentation
AT24C128C-SSHM-T EEPROM SERIAL EEPROM 128K 16K x 8 2WIRE 1.7V 0 AT24C128C-SSHM-T EEPROM SERIAL EEPROM 128K 16K x 8 2WIRE 1.7V 1 AT24C128C-SSHM-T EEPROM SERIAL EEPROM 128K 16K x 8 2WIRE 1.7V 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
