AT24C512C-SSHD-T

AT24C512C-SSHD-T
AT24C512C-SSHD-T AT24C512C-SSHD-T AT24C512C-SSHD-T

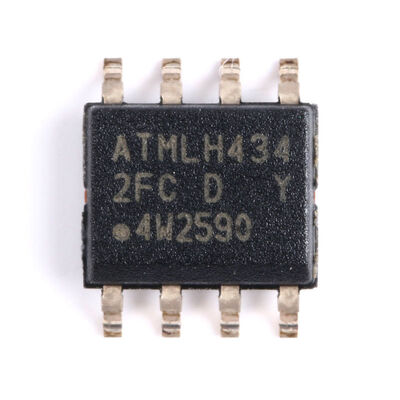

Large Image :  AT24C512C-SSHD-T

Product Details:
Place of Origin: CN
Brand Name: MICROCHIP
Certification: rohs
Model Number: AT24C512C-SSHD-T
Document: 1457707358656.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

AT24C512C-SSHD-T

Description
Interface Type: I2C Storage Capacity: 512Kbit
Clock Frequency (fc): 1MHz Write Cycle Time (Tw): 5ms
Operating Voltage: 2.5V~5.5V Operating Temperature: -40°C~+85°C
Highlight:

EEPROM chip with warranty

,

AT24C512C EEPROM memory

,

512Kb EEPROM storage chip

AT24C512C-SSHD-T EEPROM Memory IC
Product Overview
The AT24C512C-SSHD-T is a high-performance 512-Kbit serial EEPROM memory IC featuring low-voltage operation, robust data protection, and exceptional reliability for industrial applications.
Key Features
  • Low-voltage and standard-voltage operation:
    • 1.7V (VCC = 1.7V to 3.6V)
    • 2.5V (VCC = 2.5V to 5.5V)
  • Internally organized as 65,536 x 8
  • 2-wire serial interface
  • Schmitt Triggers with filtered inputs for noise suppression
  • Bidirectional data transfer protocol
  • 400kHz (1.7V) and 1MHz (2.5V, 5.5V) compatibility
  • Write Protect pin for hardware data protection
  • 128-byte page write mode with partial page writes allowed
  • Random and sequential read modes
  • Self-timed write cycle (5ms maximum)
  • High reliability specifications:
    • Endurance: 1,000,000 write cycles
    • Data retention: 40 years
  • Green package options (Pb/Halide-free/RoHS Compliant)
  • Available in multiple packages: 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead TSSOP, 8-pad UDFN, and 8-ball VFBGA
  • Die sale options: wafer form and tape and reel available
Ordering Information
Ordering Code Voltage Package Operation Range
AT24C512C-SSHM-B(1) (NiPdAu Lead Finish) 1.7V to 3.6V 8S1 Lead-free/Halogen-free/Industrial Temperature(-40 to 85°C)
AT24C512C-SSHM-T(2) (NiPdAu Lead Finish) 1.7V to 3.6V 8S1
AT24C512C-SSHD-B(1) (NiPdAu Lead Finish) 2.5V to 5.5V 8S1
AT24C512C-SSHD-T(2) (NiPdAu Lead Finish) 2.5V to 5.5V 8S1
AT24C512C-SHM-B(1) (NiPdAu Lead Finish) 1.7V to 3.6V 8S2
AT24C512C-SHM-T(2) (NiPdAu Lead Finish) 1.7V to 3.6V 8S2
AT24C512C-SHD-B(1) (NiPdAu Lead Finish) 2.5V to 5.5V 8S2
AT24C512C-SHD-T(2) (NiPdAu Lead Finish) 2.5V to 5.5V 8S2
AT24C512C-XHM-B(1) (NiPdAu Lead Finish) 1.7V to 3.6V 8X
AT24C512C-XHM-T(2) (NiPdAu Lead Finish) 1.7V to 3.6V 8X
AT24C512C-XHD-B(1) (NiPdAu Lead Finish) 2.5V to 5.5V 8X
AT24C512C-XHD-T(2) (NiPdAu Lead Finish) 2.5V to 5.5V 8X
AT24C512C-MAHM-T(2) (NiPdAu Lead Finish) 1.7V to 3.6V 8MA2
AT24C512C-CUM-T(2) 1.7V to 3.6V 8U2-1
AT24C512C-WWU11M(3) 1.7V to 3.6V Die Sale Industrial Temperature(-40 to 85°C)

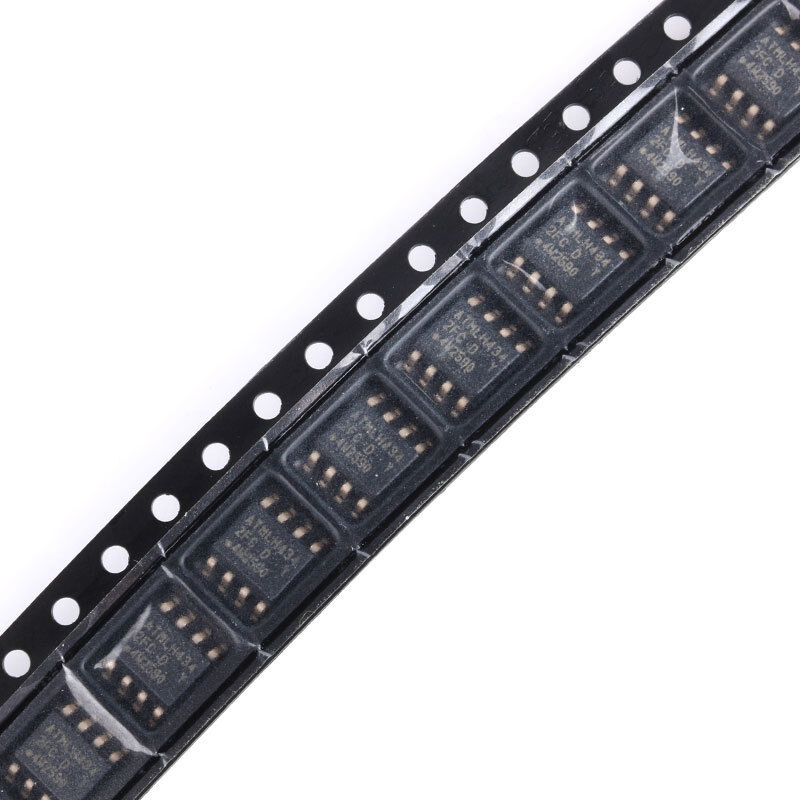

Product Images
AT24C512C-SSHD-T 0 AT24C512C-SSHD-T 1 AT24C512C-SSHD-T 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
