AT24CM01-SSHD-T 12C-Compatible (2-wire) Serial EEPROM 1-Mbit

AT24CM01-SSHD-T 12C-Compatible (2-wire) Serial EEPROM 1-Mbit
AT24CM01-SSHD-T 12C-Compatible (2-wire) Serial EEPROM 1-Mbit AT24CM01-SSHD-T 12C-Compatible (2-wire) Serial EEPROM 1-Mbit AT24CM01-SSHD-T 12C-Compatible (2-wire) Serial EEPROM 1-Mbit

Large Image :  AT24CM01-SSHD-T 12C-Compatible (2-wire) Serial EEPROM 1-Mbit

Product Details:
Place of Origin: CN
Brand Name: MICROCHIP
Certification: rohs
Model Number: AT24CM01-SSHD-T
Document: 1457707370793.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

AT24CM01-SSHD-T 12C-Compatible (2-wire) Serial EEPROM 1-Mbit

Description
Operating Temperature: -40℃~+85℃ Product Catalog: EEPROM
Interface Type: I2C Storage Capadity: 1Mbit
Clock Frequency (fc): 1MHz Write Cycle Time (Tw): 5ms
Highlight:

12C-compatible serial EEPROM chip

,

1-Mbit EEPROM memory chip

,

2-wire serial EEPROM with warranty

AT24CM01-SSHD-T I²C-Compatible Serial EEPROM
1-Mbit I²C-Compatible (2-wire) Serial EEPROM with advanced features for industrial applications
Product Features
  • Low Voltage and Standard Voltage Operation
    • 1.7V (VCC = 1.7V to 5.5V)
    • 2.5V (VCC = 2.5V to 5.5V)
  • Internally Organized 131,072 x 8
  • 2-wire Serial Interface
  • Schmitt Triggers with Filtered Inputs for Noise Suppression
  • Bidirectional Data Transfer Protocol
  • 400kHz (1.7V) and 1MHz (5V, 2.5V) Compatibility
  • Write Protect Pin for Hardware Data Protection
  • 256-byte Page Write Mode with Partial Page Writes Allowed
  • Random and Sequential Read Modes
  • Self-timed Write Cycle (5ms Max)
  • High Reliability
    • Endurance: 1,000,000 Write Cycles
    • Data Retention: 40 Years
  • Green Package Options (Pb/Halide-free/RoHS Compliant)
    • 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead TSSOP, and 8-ball WLCSP
  • Die Sale Options: Wafer Form and Tape and Reel Available
Ordering Information
Atmel Ordering Code Lead Finish Package Voltage Delivery Information Operation Range
AT24CM01-SSHM-B NiPdAu (Lead-free/Halogen-free) 8S1 1.7V to 5.5V Bulk (Tubes) - 100 per Tube Industrial Temperature (-40℃~+85℃)
AT24CM01-SSHM-T NiPdAu (Lead-free/Halogen-free) 8S1 1.7V to 5.5V Tape and Reel - 4,000 per Reel Industrial Temperature (-40℃~+85℃)
AT24CM01-SSHD-B NiPdAu (Lead-free/Halogen-free) 8S1 2.5V to 5.5V Bulk (Tubes) - 100 per Tube Industrial Temperature (-40℃~+85℃)
AT24CM01-SSHD-T NiPdAu (Lead-free/Halogen-free) 8S1 2.5V to 5.5V Tape and Reel - 4,000 per Reel Industrial Temperature (-40℃~+85℃)
AT24CM01-SHM-B NiPdAu (Lead-free/Halogen-free) 8S2 1.7V to 5.5V Bulk (Tubes) - 95 per Tube Industrial Temperature (-40℃~+85℃)
AT24CM01-SHM-T NiPdAu (Lead-free/Halogen-free) 8S2 1.7V to 5.5V Tape and Reel - 2,000 per Reel Industrial Temperature (-40℃~+85℃)
AT24CM01-SHD-B NiPdAu (Lead-free/Halogen-free) 8S2 2.5V to 5.5V Bulk (Tubes) - 95 per Tube Industrial Temperature (-40℃~+85℃)
AT24CM01-SHD-T NiPdAu (Lead-free/Halogen-free) 8S2 2.5V to 5.5V Tape and Reel - 2,000 per Reel Industrial Temperature (-40℃~+85℃)
AT24CM01-XHM-B NiPdAu (Lead-free/Halogen-free) 8X 1.7V to 5.5V Bulk (Tubes) - 100 per Tube Industrial Temperature (-40℃~+85℃)
AT24CM01-XHM-T NiPdAu (Lead-free/Halogen-free) 8X 1.7V to 5.5V Tape and Reel - 5,000 per Reel Industrial Temperature (-40℃~+85℃)
AT24CM01-XHD-B NiPdAu (Lead-free/Halogen-free) 8X 2.5V to 5.5V Bulk (Tubes) - 100 per Tube Industrial Temperature (-40℃~+85℃)
AT24CM01-XHD-T NiPdAu (Lead-free/Halogen-free) 8X 2.5V to 5.5V Tape and Reel - 5,000 per Reel Industrial Temperature (-40℃~+85℃)
AT24CM01-UUM-T(1) SnAgCu (Lead-free/Halogen-free) 8U-6 1.7V to 5.5V Tape and Reel - 5,000 per Reel Industrial Temperature (-40℃~+85℃)
AT24CM01-WWU11M(2) N/A Wafer Sale Note 2 N/A Industrial Temperature (-40℃~+85℃)

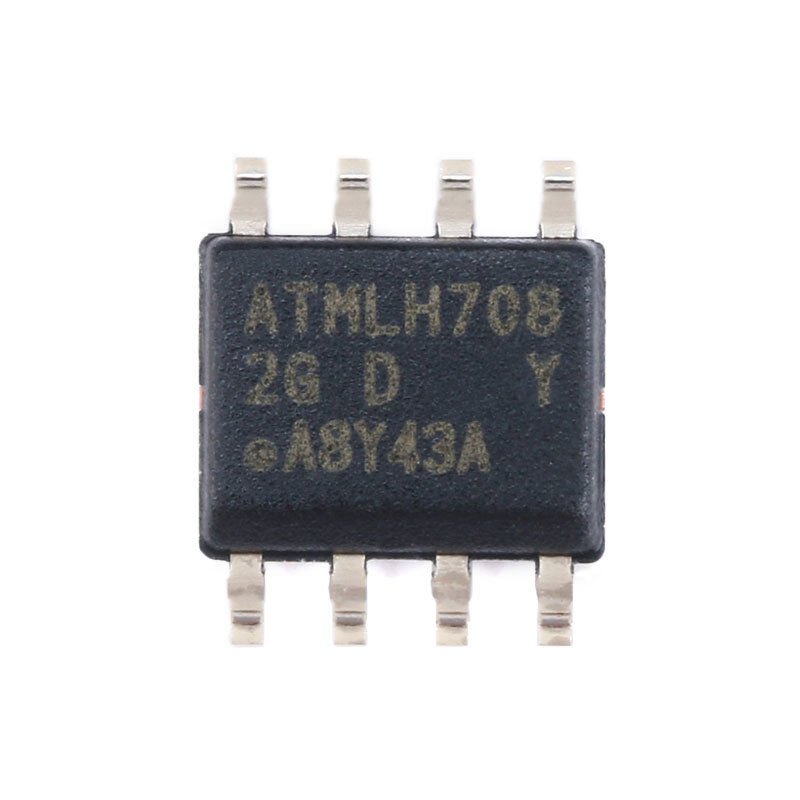

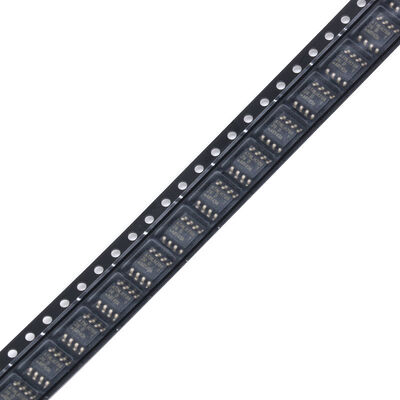

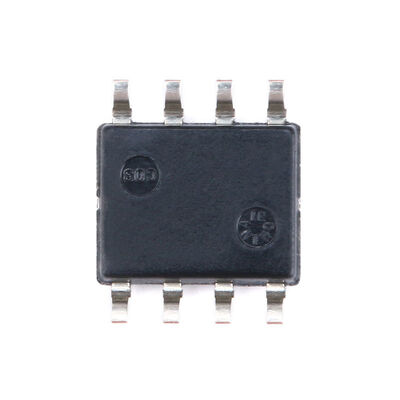

Product Images
AT24CM01-SSHD-T 12C-Compatible (2-wire) Serial EEPROM 1-Mbit 0 AT24CM01-SSHD-T 12C-Compatible (2-wire) Serial EEPROM 1-Mbit 1 AT24CM01-SSHD-T 12C-Compatible (2-wire) Serial EEPROM 1-Mbit 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
