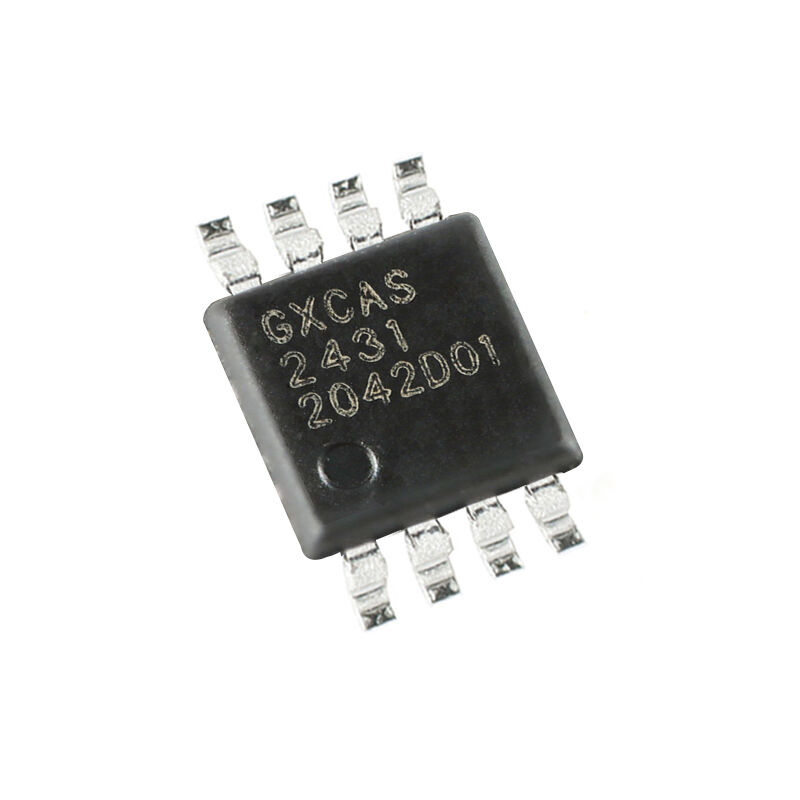

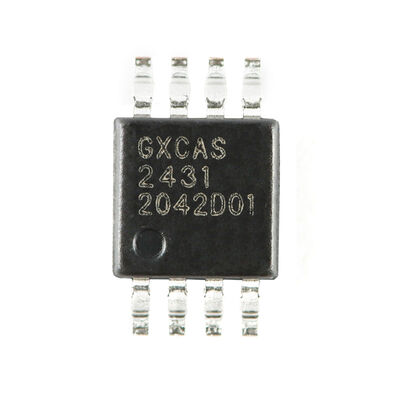

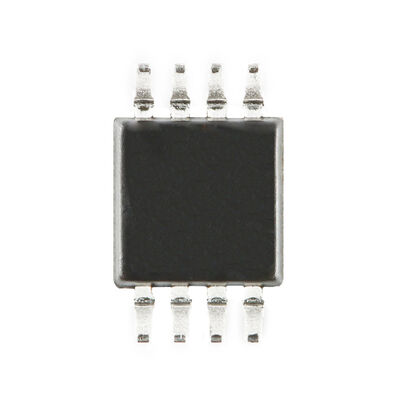

GX2431P 1024-bit 1-Wire EEPROM Chip

The GX2431P is a 1024-bit EEPROM chip featuring a single-bus interface for simplified communication and robust data storage capabilities.

Host component/PCB board identification; Medical device parameter storage; Analog sensor calibration; Ink cartridge/toner identification; Consumer product after-sales management; BMS product parameter storage

The GX2431 is a 1024-bit EEPROM that communicates via standard single-bus protocol. It features four independent 256-bit memory pages. Data is initially written to an 8-byte register and, after verification, copied to EEPROM memory. Each memory page can be individually configured for write protection or EPROM emulation mode, where bits can only transition from 1 to 0. The chip operates on the 1-Wire bus protocol and contains a factory-programmed, non-modifiable 64-bit ROM address code for device identification in multi-point network environments.

Standard export packaging available. Customers can select from cartons, wooden cases, and wooden pallets based on their requirements.
