M24C01-WMN6TP 16Kbit 8Kbit 4Kbit 2Kbit And 1Kbit Serial I²C Bus EEPROM

M24C01-WMN6TP 16Kbit 8Kbit 4Kbit 2Kbit And 1Kbit Serial I²C Bus EEPROM
M24C01-WMN6TP 16Kbit 8Kbit 4Kbit 2Kbit And 1Kbit Serial I²C Bus EEPROM M24C01-WMN6TP 16Kbit 8Kbit 4Kbit 2Kbit And 1Kbit Serial I²C Bus EEPROM M24C01-WMN6TP 16Kbit 8Kbit 4Kbit 2Kbit And 1Kbit Serial I²C Bus EEPROM M24C01-WMN6TP 16Kbit 8Kbit 4Kbit 2Kbit And 1Kbit Serial I²C Bus EEPROM

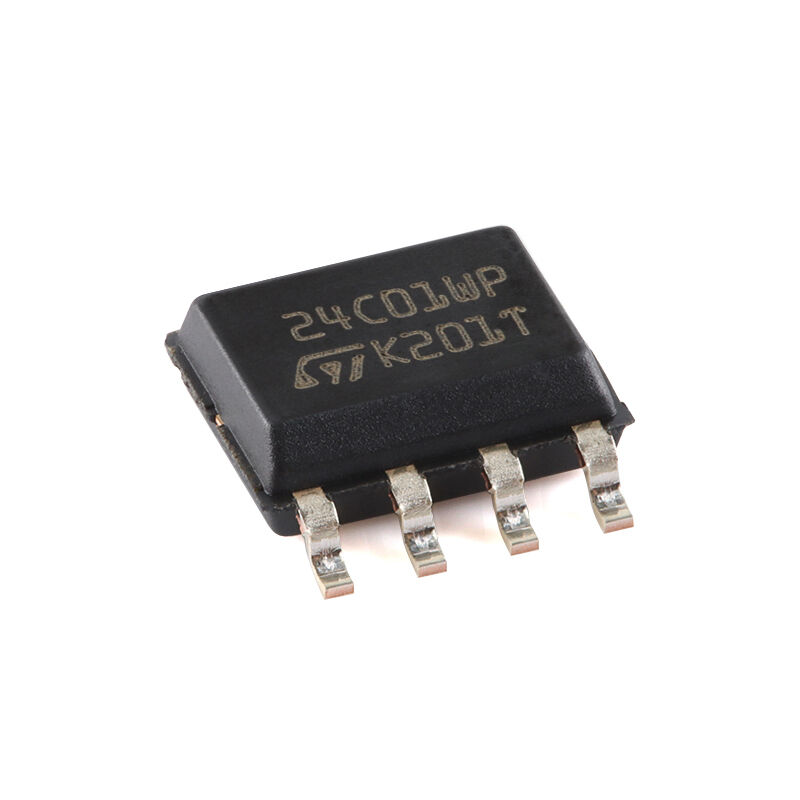

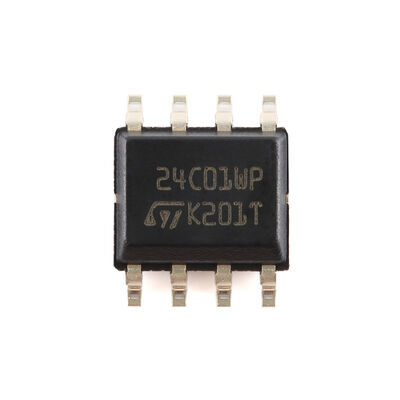

Large Image :  M24C01-WMN6TP 16Kbit 8Kbit 4Kbit 2Kbit And 1Kbit Serial I²C Bus EEPROM

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: M24C01-WMN6TP
Document: C7996_EEPROM_M24C01-WMN6TP_...97.PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

M24C01-WMN6TP 16Kbit 8Kbit 4Kbit 2Kbit And 1Kbit Serial I²C Bus EEPROM

Description
Operating Temperature: -55℃~+125℃ Product Catalog: EEPROM
Interface Type: Monobus Storage Capadity: 1Kbit
Clock Frequency (fc): 5ms Write Cycle Time (Tw): 40
Highlight:

M24C01-WMN6TP I²C Bus EEPROM

,

Serial EEPROM chip with warranty

,

16Kbit I²C Bus memory chip

M24C01-WMN6TP 16Kbit 8Kbit 4Kbit 2Kbit And 1Kbit Serial I²C Bus EEPROM
The M24C01-WMN6TP is a high-performance Serial I²C Bus EEPROM available in multiple memory capacities including 16Kbit, 8Kbit, 4Kbit, 2Kbit, and 1Kbit configurations, designed for reliable data storage in industrial applications.
Key Features
  • Supports both 100 kHz I2C Standard-mode and 400 kHz I2C Fast-mode operation
  • Wide voltage range compatibility:
    • 2.5V to 5.5V for M24Cxx-W series
    • 1.8V to 5.5V for M24Cxx-Rev 16 series
    • 1.7V to 5.5V for M24Cxx-F series
  • Write Control input for enhanced data protection
  • Byte and Page Write capabilities (up to 16 bytes per page)
  • Random and Sequential Read modes for flexible data access
  • Self-timed programming cycle for simplified operation
  • Automatic address incrementing during sequential operations
  • Enhanced ESD and latch-up protection
  • Exceptional endurance: More than 1 million write cycles
  • Long-term reliability: Over 40-year data retention
  • Multiple package options:
    • SO8, TSSOP8, UFDFPN8: ECOPACK2® (RoHS-compliant and Halogen-free)
    • PDIP8: ECOPACK1® (RoHS-compliant)
Device Summary
Reference Part Number
M24C16 M24C16-W
M24C16-R M24C16-F
M24C08 M24C08-W
M24C08-R M24C08-F
M24C04 M24C04-W
M24C04-R M24C04-F
M24C02 M24C02-W
M24C02-R M24C01
M24C01-W M24C01-R
M24C01-WMN6TP 16Kbit 8Kbit 4Kbit 2Kbit And 1Kbit Serial I²C Bus EEPROM 0 M24C01-WMN6TP 16Kbit 8Kbit 4Kbit 2Kbit And 1Kbit Serial I²C Bus EEPROM 1 M24C01-WMN6TP 16Kbit 8Kbit 4Kbit 2Kbit And 1Kbit Serial I²C Bus EEPROM 2 M24C01-WMN6TP 16Kbit 8Kbit 4Kbit 2Kbit And 1Kbit Serial I²C Bus EEPROM 3

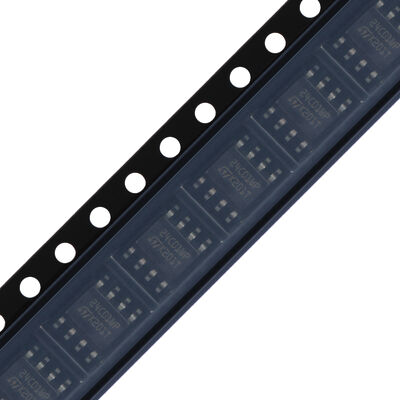

Packaging & Shipping
Standard export packaging options include cartons, wooden cases, and wooden pallets. Customers can specify their preferred packaging method based on specific shipping and handling requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
