M24C02-RMN6TP 1Kbit And 2Kbit Serial I²C Bus EEPROMs

M24C02-RMN6TP 1Kbit And 2Kbit Serial I²C Bus EEPROMs
M24C02-RMN6TP 1Kbit And 2Kbit Serial I²C Bus EEPROMs M24C02-RMN6TP 1Kbit And 2Kbit Serial I²C Bus EEPROMs M24C02-RMN6TP 1Kbit And 2Kbit Serial I²C Bus EEPROMs M24C02-RMN6TP 1Kbit And 2Kbit Serial I²C Bus EEPROMs

Large Image :  M24C02-RMN6TP 1Kbit And 2Kbit Serial I²C Bus EEPROMs

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: M24C02-RMN6TP
Document: C83836_EEPROM_M24C02-RMN6TP...43.PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

M24C02-RMN6TP 1Kbit And 2Kbit Serial I²C Bus EEPROMs

Description
Operating Temperature: -55℃~+125℃ Product Catalog: EEPROM
Interface Type: I2C Storage Capadity: 2Kbit
Clock Frequency (fc): 400kHz Write Cycle Time (Tw): 5ms
Highlight:

M24C02 EEPROM I²C Bus memory

,

2Kbit serial EEPROM chip

,

I²C Bus EEPROM with warranty

M24C02-RMN6TP 1Kbit And 2Kbit Serial I²C Bus EEPROMs
The M24C02-RMN6TP is a high-performance serial EEPROM featuring 1Kbit and 2Kbit memory configurations with I²C bus compatibility.
Key Features
  • Compatible with I²C bus modes: 400 kHz and 100 kHz
  • Memory array options:
    • 1 Kbit (128 bytes) of EEPROM
    • 2 Kbit (256 bytes) of EEPROM
    • Page size: 16 bytes
  • Single supply voltage ranges:
    • M24C01/02-W: 2.5 V to 5.5 V
    • M24C01/02-R: 1.8 V to 5.5 V
    • M24C02-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
  • Fast write operations: Byte Write and Page Write within 5 ms
  • Operating temperature range: -40°C to +85°C
  • Random and sequential Read modes
  • Write protect for entire memory array
  • Enhanced ESD/Latch-Up protection
  • More than 4 million Write cycles
  • More than 200-year data retention
  • RoHS compliant and halogen-free packages (ECOPACK2®)
Signal Description
Signal Name Function Direction
E2, E1, E0(1) Chip Enable Input
SDA Serial Data I/O
SCL Serial Clock Input
WC Write Control Input
VCC Supply Voltage -
VSS Ground -
(1) Signal not connected in the DFN5 package.
I²C Protocol Overview
The device supports the I²C protocol, where any device sending data is defined as a transmitter and any device reading data is a receiver. The bus master controls data transfer and provides serial clock synchronization. The device always operates as a slave in all communications.

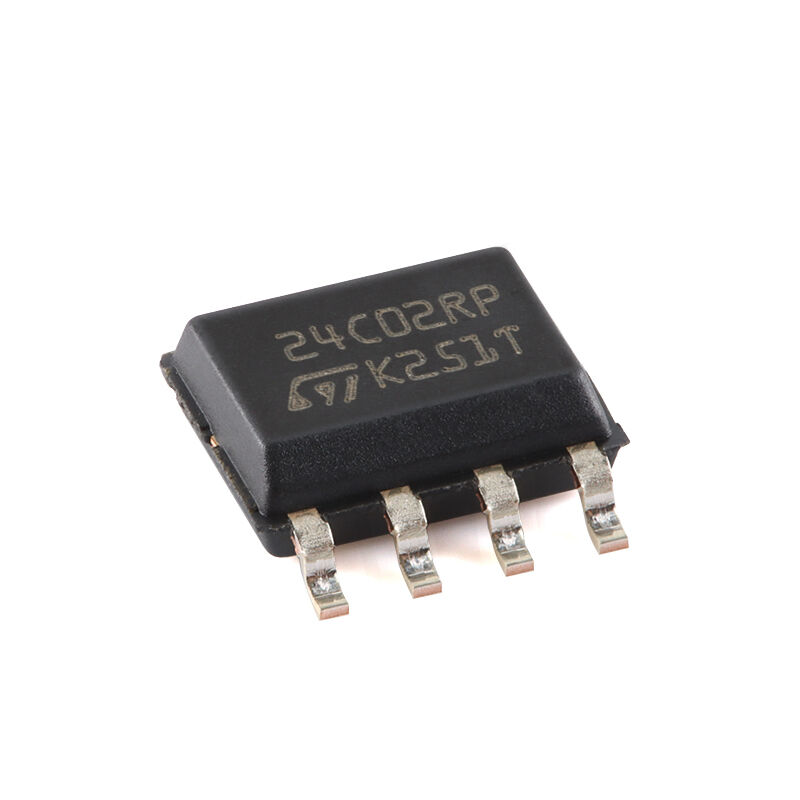

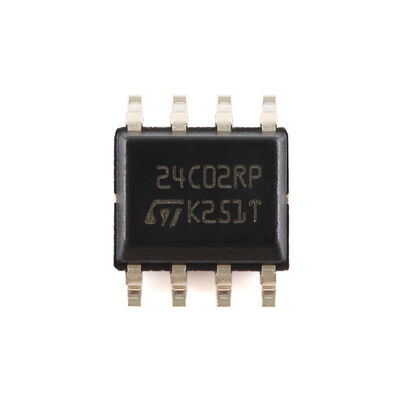

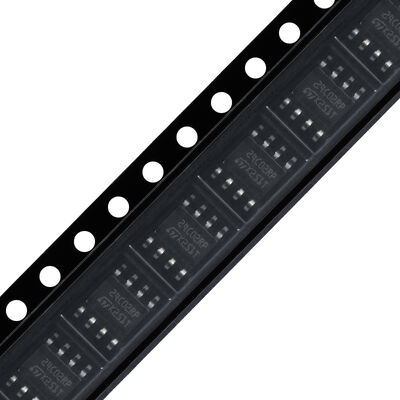

Product Images
M24C02-RMN6TP 1Kbit And 2Kbit Serial I²C Bus EEPROMs 0 M24C02-RMN6TP 1Kbit And 2Kbit Serial I²C Bus EEPROMs 1 M24C02-RMN6TP 1Kbit And 2Kbit Serial I²C Bus EEPROMs 2 M24C02-RMN6TP 1Kbit And 2Kbit Serial I²C Bus EEPROMs 3
Packaging & Shipping
Standard export packaging options include cartons, wooden cases, and wooden pallets. Customers can specify preferred packaging methods based on specific shipping and handling requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
