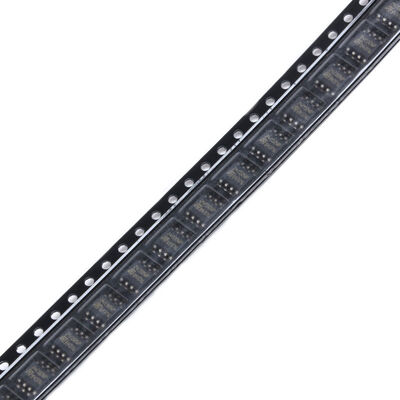

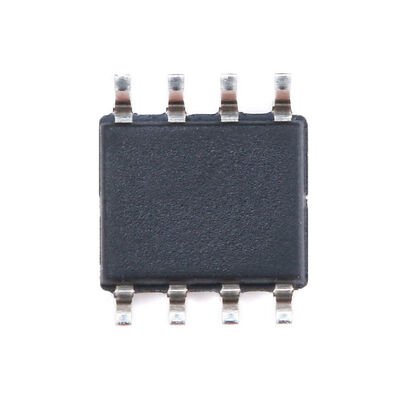

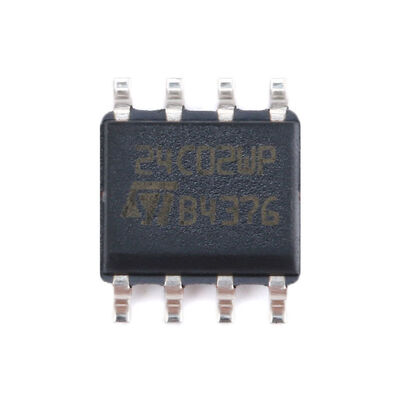

M24C02-WMN6TP 2Kbit Serial I²C Bus EEPROMs 5ms 400kHz

M24C02-WMN6TP 2Kbit Serial I²C Bus EEPROMs 5ms 400kHz
M24C02-WMN6TP 2Kbit Serial I²C Bus EEPROMs 5ms 400kHz M24C02-WMN6TP 2Kbit Serial I²C Bus EEPROMs 5ms 400kHz M24C02-WMN6TP 2Kbit Serial I²C Bus EEPROMs 5ms 400kHz

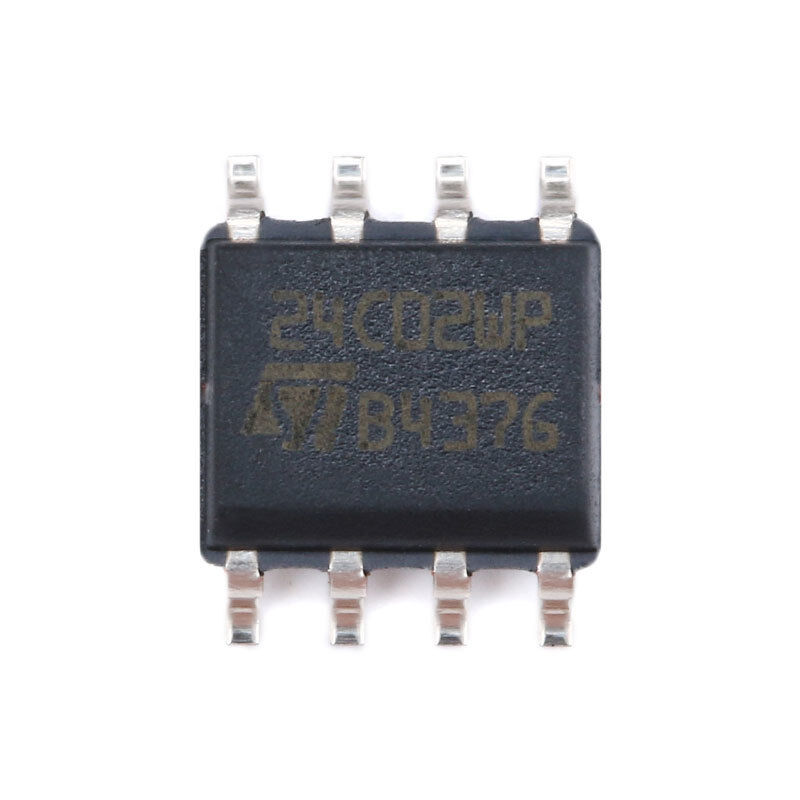

Large Image :  M24C02-WMN6TP 2Kbit Serial I²C Bus EEPROMs 5ms 400kHz

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: M24C02-WMN6TP
Document: C7996_EEPROM_M24C01-WMN6TP_...97.PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

M24C02-WMN6TP 2Kbit Serial I²C Bus EEPROMs 5ms 400kHz

Description
Operating Temperature: -55℃~+125℃ Operating Voltage: 2.5V~5.5V
Interface Type: I2C Storage Capadity: 2Kbit
Clock Frequency (fc): 400kHz Write Cycle Time (Tw): 5ms
Highlight:

M24C02-WMN6TP 2Kbit EEPROM chip

,

I²C Bus EEPROM with 2Kbit memory

,

serial EEPROM chip with warranty

M24C02-WMN6TP 2Kbit Serial I²C Bus EEPROM
The M24C02 is a 2-Kbit I²C-compatible EEPROM (Electrically Erasable Programmable Memory) organized as 256 * 8 bits. This device family offers multiple voltage range options: M24C01/02-W operates from 2.5V to 5.5V, M24C01/02-R from 1.8V to 5.5V, and M24C02-F from 1.7V to 5.5V (with extended range from 1.6V to 1.7V at reduced temperature). All variants support 400 kHz clock frequency operation.
Key Features
  • Supports both 100 kHz I²C Standard-mode and 400 kHz I²C Fast-mode operation
  • Wide voltage range compatibility across series:
    • 2.5V to 5.5V for M24Cxx-W series
    • 1.8V to 5.5V for M24Cxx-R series
    • 1.7V to 5.5V for M24Cxx-F series
  • Write Control input for enhanced data protection
  • Byte and Page Write capabilities (up to 16 bytes per page)
  • Random and Sequential Read modes for flexible data access
  • Self-timed programming cycle for simplified operation
  • Automatic address incrementing during sequential operations
  • Enhanced ESD and latch-up protection
  • Exceptional endurance: More than 1 million write cycles
  • Long-term reliability: Over 40-year data retention
  • Multiple package options:
    • SO8, TSSOP8, UFDFPN8: ECOPACK2® (RoHS-compliant and Halogen-free)
    • PDIP8: ECOPACK1® (RoHS-compliant)
Device Reference Guide
Reference Part Number
M24C16 M24C16-W
M24C16-R M24C16-F
M24C08 M24C08-W
M24C08-R M24C08-F
M24C04 M24C04-W
M24C04-R M24C04-F
M24C02 M24C02-W
M24C02-R M24C01
M24C01-W M24C01-R
M24C02-WMN6TP 2Kbit Serial I²C Bus EEPROMs 5ms 400kHz 0 M24C02-WMN6TP 2Kbit Serial I²C Bus EEPROMs 5ms 400kHz 1 M24C02-WMN6TP 2Kbit Serial I²C Bus EEPROMs 5ms 400kHz 2
Packaging & Shipping
Standard export packaging options include cartons, wooden cases, and wooden pallets. Customers can specify their preferred packaging method based on specific shipping and handling requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
