M24C08-WMN6TP 8-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 400kHz

M24C08-WMN6TP 8-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 400kHz
M24C08-WMN6TP 8-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 400kHz M24C08-WMN6TP 8-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 400kHz M24C08-WMN6TP 8-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 400kHz M24C08-WMN6TP 8-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 400kHz

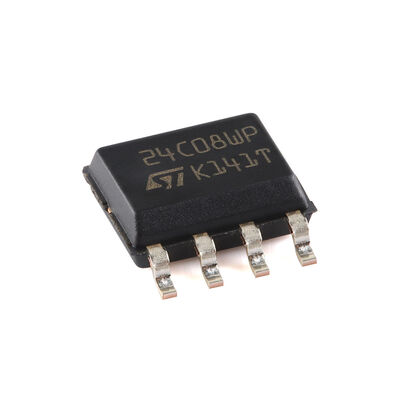

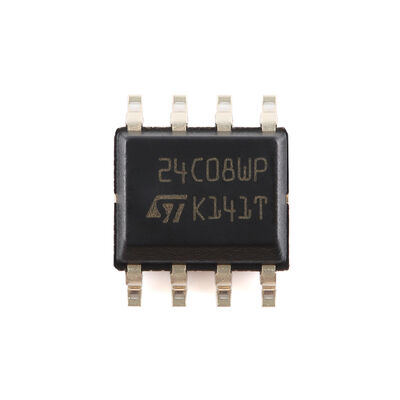

Large Image :  M24C08-WMN6TP 8-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 400kHz

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: M24C08-WMN6TP
Document: C283440_82F3F1AA742CFDAEADE...C3.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with

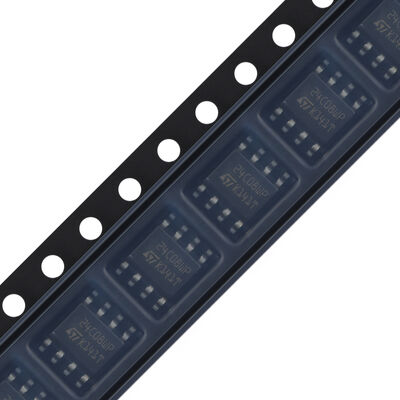

Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

M24C08-WMN6TP 8-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 400kHz

Description
Operating Temperature: -40℃~+85℃ Product Catalog: EEPROM
Interface Type: I2C Storage Capadity: 8Kbit
Clock Frequency (fc): 400kHz Write Cycle Time (Tw): 5ms
Highlight:

M24C08 I²C EEPROM chip

,

8-Kbit serial EEPROM memory

,

I²C Bus EEPROM with warranty

M24C08-WMN6TP 8-Kbit Serial I²C Bus EEPROMs
M24C08-W M24C08-R M24C08-F 8-Kbit serial I²C bus EEPROM
Key Features
  • Compatible with I2C bus modes:
    • 400 kHz
    • 100 kHz
  • Memory array:
    • 8 Kbit (1 Kbyte) of EEPROM
    • Page size: 16 byte
  • Single supply voltage:
    • M24C08-W: 2.5 V to 5.5 V
    • M24C08-R: 1.8 V to 5.5 V
    • M24C08-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
  • Write operations:
    • Byte Write within 5 ms
    • Page Write within 5 ms
  • Operating temperature range: -40 °C to +85 °C
  • Random and sequential Read modes
  • Write protect of the whole memory array
  • Enhanced ESD/Latch-Up protection
  • More than 4 million Write cycles
  • More than 200-years data retention
Electrical Characteristics
Symbol Parameter Min. Max. Unit
VCC Supply voltage 2.5 5.5 V
TA Ambient operating temperature -40 85 °C
fC Operating clock frequency - 400 kHz
M24C08-WMN6TP 8-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 400kHz 0M24C08-WMN6TP 8-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 400kHz 1M24C08-WMN6TP 8-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 400kHz 2M24C08-WMN6TP 8-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 400kHz 3
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Ordering Information
Pricing: We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
Delivery Time: Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
Payment Terms: Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
Shipping Options: Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
