M24C16-WMN6TP 16-Kbit Serial I²C Bus EEPROMs 5ms 400kHz

M24C16-WMN6TP 16-Kbit Serial I²C Bus EEPROMs 5ms 400kHz
M24C16-WMN6TP 16-Kbit Serial I²C Bus EEPROMs 5ms 400kHz M24C16-WMN6TP 16-Kbit Serial I²C Bus EEPROMs 5ms 400kHz M24C16-WMN6TP 16-Kbit Serial I²C Bus EEPROMs 5ms 400kHz

Large Image :  M24C16-WMN6TP 16-Kbit Serial I²C Bus EEPROMs 5ms 400kHz

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: M24C16-WMN6TP
Document: 1457707168008.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

M24C16-WMN6TP 16-Kbit Serial I²C Bus EEPROMs 5ms 400kHz

Description
Operating Temperature: -40℃~+85℃ Operating Voltage: 2.5V~5.5V
Interface Type: I2C Storage Capadity: 16Kbit
Clock Frequency (fc): 400kHz Write Cycle Time (Tw): 5ms
Highlight:

M24C16-WMN6TP 16-Kbit EEPROM

,

I²C Bus EEPROM chip

,

serial EEPROM with warranty

M24C16-WMN6TP 16-Kbit Serial I²C Bus EEPROMs
The M24C16 series are 16-Kbit Serial I²C Bus EEPROMs available in multiple voltage variants for diverse application requirements.
Key Features
  • Compatible with all I²C bus modes: 400 kHz and 100 kHz
  • Memory array: 16 Kbit (2 Kbyte) of EEPROM with 16-byte page size
  • Single supply voltage options:
    • M24C16-W: 2.5 V to 5.5 V
    • M24C16-R: 1.8 V to 5.5 V
    • M24C16-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
  • Write operations: Byte Write and Page Write within 5 ms
  • Operating temperature range: -40 °C to +85 °C
  • Random and sequential Read modes
  • Write protect of the whole memory array
  • Enhanced ESD/Latch-Up protection
  • More than 4 million Write cycles
  • More than 200-years data retention
Pin Configuration
Signal Name Function Direction
SDA Serial Data I/O
SCL Serial Clock Input
WC Write Control Input
VCC Supply Voltage -
VSS Ground -

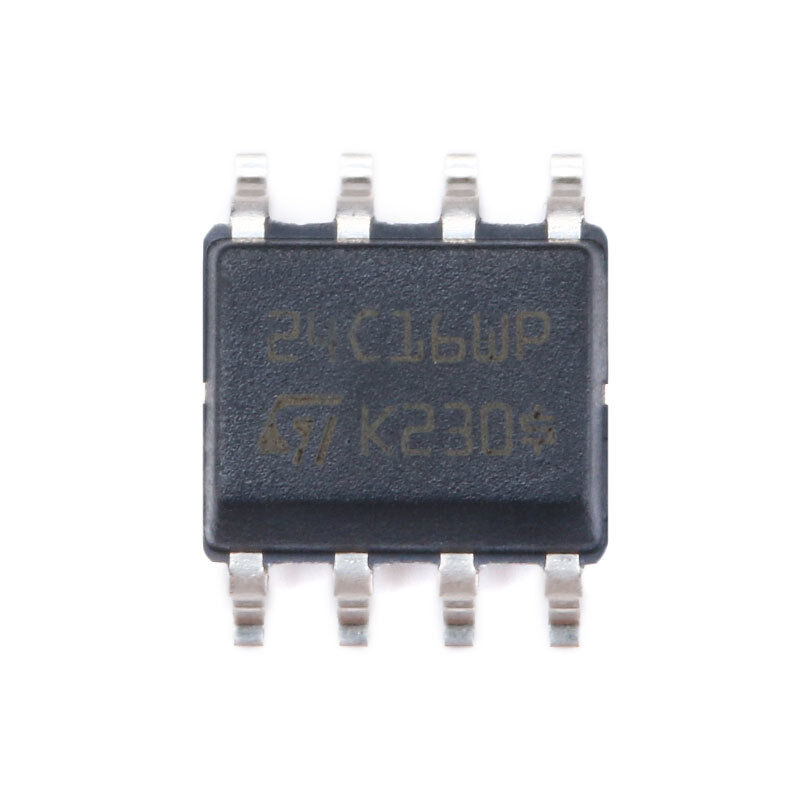

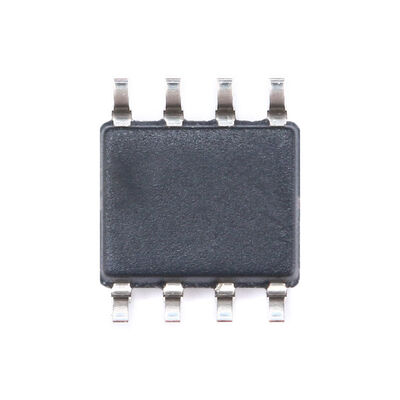

Product Images
M24C16-WMN6TP 16-Kbit Serial I²C Bus EEPROMs 5ms 400kHz 0 M24C16-WMN6TP 16-Kbit Serial I²C Bus EEPROMs 5ms 400kHz 1 M24C16-WMN6TP 16-Kbit Serial I²C Bus EEPROMs 5ms 400kHz 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
