M24C64-WMN6TP 64-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 1MHz

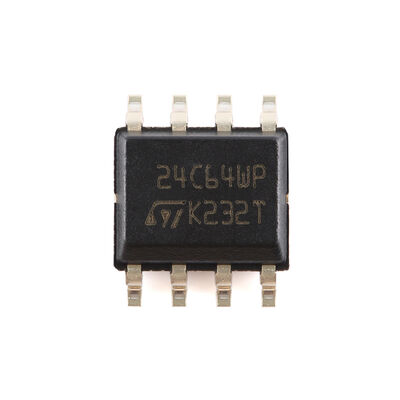

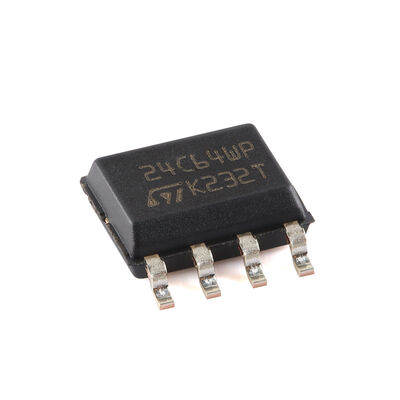

Large Image : M24C64-WMN6TP 64-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 1MHz

Product Details:

Place of Origin:	CN
Brand Name:	ST
Certification:	rohs
Model Number:	M24C64-WMN6TP
Document:	1457707168049.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with

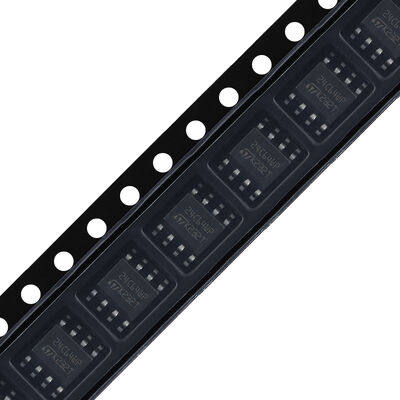

Packaging Details:	T/R
Delivery Time:	5-8days
Payment Terms:	T/T,Western Union
Supply Ability:	100000

Contact Now Chat Now

M24C64-WMN6TP 64-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 1MHz

Description

Operating Temperature:	-40℃~+85℃	Operating Voltage:	2.5V~5.5V
Interface Type:	I2C	Storage Capadity:	64Kbit
Clock Frequency (fc):	1MHz	Write Cycle Time (Tw):	5ms
Highlight:	M24C64 64-Kbit I²C EEPROM , 2.5V to 5.5V EEPROM chip , 1MHz serial EEPROM with warranty

M24C64-WMN6TP 64-Kbit Serial I²C Bus EEPROM

64-Kbit Serial I²C Bus EEPROM with 2.5V~5.5V operating voltage, 5ms write time, and 1MHz frequency

Product Overview

M24C64-WMN6TP is a high-performance 64-Kbit serial EEPROM compatible with I²C bus protocols. Available in multiple variants including M24C64-W, M24C64-R, M24C64-F, and M24C64-DF.

Key Features

Full compatibility with all I²C bus modes: 1 MHz, 400 kHz, and 100 kHz
64 Kbit (8 Kbytes) EEPROM memory array with 32-byte page size
Additional write-lockable page available on M24C64-D variants
Wide single supply voltage range: 1.7V to 5.5V over -40°C to +85°C
Fast write operations: Byte Write and Page Write within 5ms
Support for random and sequential Read modes
Complete memory array write protection
Enhanced ESD and latch-up protection
Exceptional endurance: Over 4 million write cycles
Long-term data retention: More than 200 years

Electrical Parameters

Symbol	Parameter	Min.	Max.	Unit
VIO	Input or output range	-0.50	6.5	V
VCC	Supply voltage	-0.50	6.5	V
VESD	Electrostatic pulse (Human Body model)	-	4000	V

Product Documentation

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
