M24M01-RMN6TP 1-Mbit Serial I²C Bus EEPROMs 1.8V~5.5V 5ms 1MHz

M24M01-RMN6TP 1-Mbit Serial I²C Bus EEPROMs 1.8V~5.5V 5ms 1MHz
M24M01-RMN6TP 1-Mbit Serial I²C Bus EEPROMs 1.8V~5.5V 5ms 1MHz M24M01-RMN6TP 1-Mbit Serial I²C Bus EEPROMs 1.8V~5.5V 5ms 1MHz M24M01-RMN6TP 1-Mbit Serial I²C Bus EEPROMs 1.8V~5.5V 5ms 1MHz M24M01-RMN6TP 1-Mbit Serial I²C Bus EEPROMs 1.8V~5.5V 5ms 1MHz

Large Image :  M24M01-RMN6TP 1-Mbit Serial I²C Bus EEPROMs 1.8V~5.5V 5ms 1MHz

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: M24M01-RMN6TP
Document: 1469779586150.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

M24M01-RMN6TP 1-Mbit Serial I²C Bus EEPROMs 1.8V~5.5V 5ms 1MHz

Description
Operating Temperature: -40℃~+85℃ Operating Voltage: 1.8V~5.5V
Interface Type: I2C Storage Capadity: 1Mbit
Clock Frequency (fc): 1MHz Write Cycle Time (Tw): 5ms
Highlight:

1-Mbit I²C EEPROM chip

,

Serial EEPROM 1.8V-5.5V

,

1MHz I²C Bus EEPROM

M24M01-RMN6TP 1-Mbit Serial I²C Bus EEPROM
1-Mbit Serial I²C Bus EEPROM with 1.8V~5.5V operating voltage, 5ms write time, and 1MHz clock frequency.
Product Features
  • Compatible with all I²C bus modes: 1 MHz, 400 kHz, and 100 kHz
  • Memory array: 1 Mbit (128 Kbytes) of EEPROM with 256-byte page size
  • Additional write lockable page (M24M01-D order codes)
  • Single supply voltage and high speed: 1 MHz clock from 1.7V to 5.5V
  • Fast write operations: Byte Write and Page Write within 5ms
  • Wide operating temperature range: -40°C to +85°C
  • Random and sequential Read modes
  • Write protect of the whole memory array
  • Enhanced ESD/Latch-Up protection
  • Endurance: More than 4 million write cycles
  • Data retention: More than 200 years
Signal Pin Functions
Signal Name Function Direction
E1, E2 Chip Enable Input
SDA Serial Data I/O
SCL Serial Clock Input
WC Write Control Input
VCC Supply Voltage -
VSS Ground -

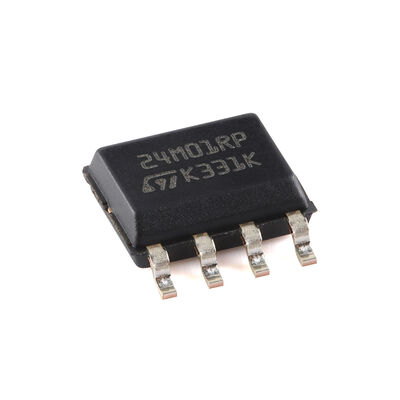

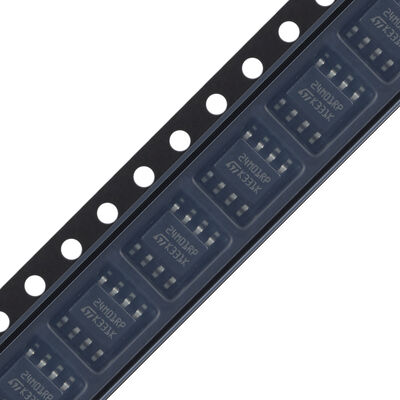

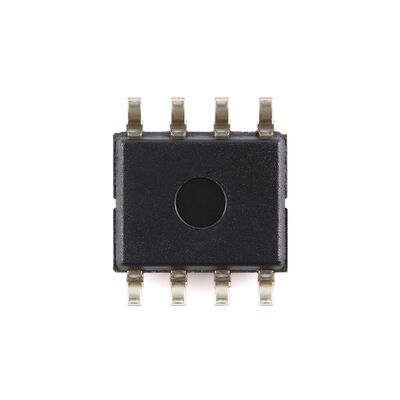

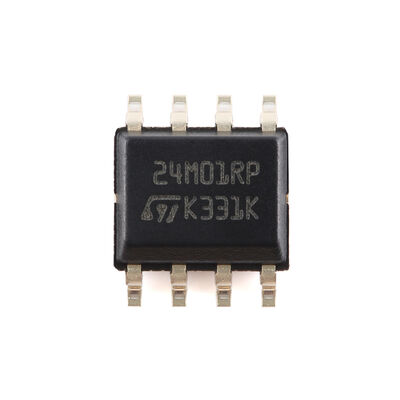

Product Images
M24M01-RMN6TP 1-Mbit Serial I²C Bus EEPROMs 1.8V~5.5V 5ms 1MHz 0 M24M01-RMN6TP 1-Mbit Serial I²C Bus EEPROMs 1.8V~5.5V 5ms 1MHz 1 M24M01-RMN6TP 1-Mbit Serial I²C Bus EEPROMs 1.8V~5.5V 5ms 1MHz 2 M24M01-RMN6TP 1-Mbit Serial I²C Bus EEPROMs 1.8V~5.5V 5ms 1MHz 3
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
