M93C66-WMN6TP 4-Kbit MICROWIRE™ serial access EEPROM 2MHz 5ms 2.5V~5.5V

M93C66-WMN6TP 4-Kbit MICROWIRE™ serial access EEPROM 2MHz 5ms 2.5V~5.5V
M93C66-WMN6TP 4-Kbit MICROWIRE™ serial access EEPROM 2MHz 5ms 2.5V~5.5V M93C66-WMN6TP 4-Kbit MICROWIRE™ serial access EEPROM 2MHz 5ms 2.5V~5.5V M93C66-WMN6TP 4-Kbit MICROWIRE™ serial access EEPROM 2MHz 5ms 2.5V~5.5V M93C66-WMN6TP 4-Kbit MICROWIRE™ serial access EEPROM 2MHz 5ms 2.5V~5.5V

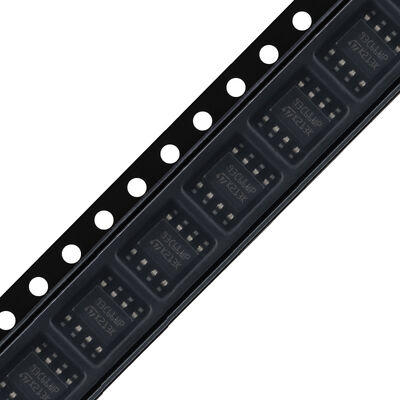

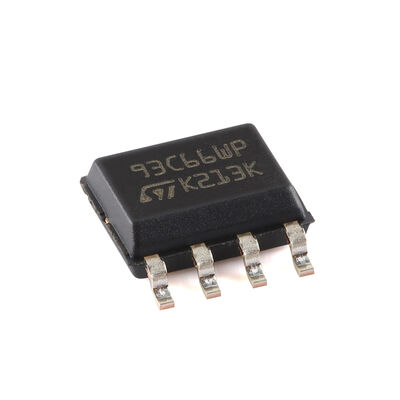

Large Image :  M93C66-WMN6TP 4-Kbit MICROWIRE™ serial access EEPROM 2MHz 5ms 2.5V~5.5V

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: M93C66-WMN6TP
Document: C472630_92699C5E067BD77DA0B...B8.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

M93C66-WMN6TP 4-Kbit MICROWIRE™ serial access EEPROM 2MHz 5ms 2.5V~5.5V

Description
Operating Temperature: -40℃~+85℃ Operating Voltage: 2.5V~5.5V
Interface Type: SPI Storage Capadity: 4Kbit
Clock Frequency (fc): 2MHz Write Cycle Time (Tw): 5ms
Highlight:

M93C66-WMN6TP 4-Kbit EEPROM chip

,

MICROWIRE serial access EEPROM

,

2.5V~5.5V EEPROM with warranty

M93C66-WMN6TP 4-Kbit MICROWIRE™ Serial Access EEPROM
M93C66-WMN6TP 4-Kbit MICROWIRE™ serial access EEPROM with 2MHz clock rate, 5ms programming cycle, and 2.5V~5.5V operating voltage. Compatible with M93C86-x, M93C76-x, M93C66-x, M93C56-x, and M93C46-x series in 16-Kbit, 8-Kbit, 4-Kbit, 2-Kbit and 1-Kbit configurations (8-bit or 16-bit wide).
Key Features
  • Industry standard MICROWIRE™ bus interface
  • Single supply voltage: 2.5V to 5.5V for M93Cx6-W series
  • Dual organization: configurable by word (x16) or byte (x8)
  • Programming instructions for byte, word, or entire memory operations
  • Self-timed programming cycle with auto-erase: 5ms duration
  • READY/BUSY signal during programming operations
  • 2 MHz maximum clock rate
  • Sequential read operation capability
  • Enhanced ESD and latch-up protection
  • Over 4 million write cycle endurance
  • More than 200-year data retention
Pin Configuration & Functions
Signal Name Function Direction
S Chip Select Input
D Serial Data Input Input
Q Serial Data Output Output
C Serial Clock Input
ORG Organization Select Input
VCC Supply Voltage -
VSS Ground -
Product Documentation
M93C66-WMN6TP 4-Kbit MICROWIRE™ serial access EEPROM 2MHz 5ms 2.5V~5.5V 0
M93C66-WMN6TP 4-Kbit MICROWIRE™ serial access EEPROM 2MHz 5ms 2.5V~5.5V 1
M93C66-WMN6TP 4-Kbit MICROWIRE™ serial access EEPROM 2MHz 5ms 2.5V~5.5V 2
M93C66-WMN6TP 4-Kbit MICROWIRE™ serial access EEPROM 2MHz 5ms 2.5V~5.5V 3
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
