M93C86-WMN6TP 16-Kbit MICROWIRE serial access EEPROM 2MHz 5ms 2.5V~5.5V

M93C86-WMN6TP 16-Kbit MICROWIRE serial access EEPROM 2MHz 5ms 2.5V~5.5V
M93C86-WMN6TP 16-Kbit MICROWIRE serial access EEPROM 2MHz 5ms 2.5V~5.5V M93C86-WMN6TP 16-Kbit MICROWIRE serial access EEPROM 2MHz 5ms 2.5V~5.5V M93C86-WMN6TP 16-Kbit MICROWIRE serial access EEPROM 2MHz 5ms 2.5V~5.5V M93C86-WMN6TP 16-Kbit MICROWIRE serial access EEPROM 2MHz 5ms 2.5V~5.5V

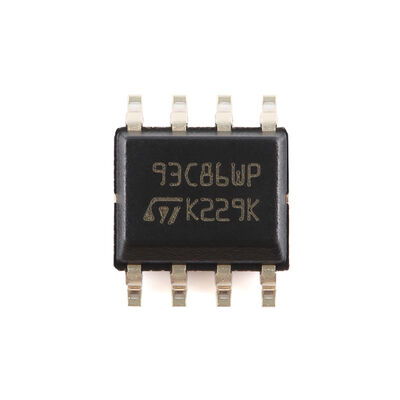

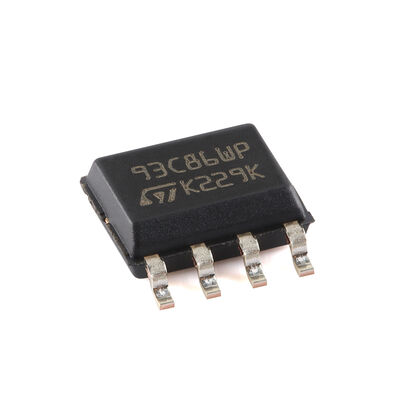

Large Image :  M93C86-WMN6TP 16-Kbit MICROWIRE serial access EEPROM 2MHz 5ms 2.5V~5.5V

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: M93C86-WMN6TP
Document: C472630_92699C5E067BD77DA0B...1).pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with

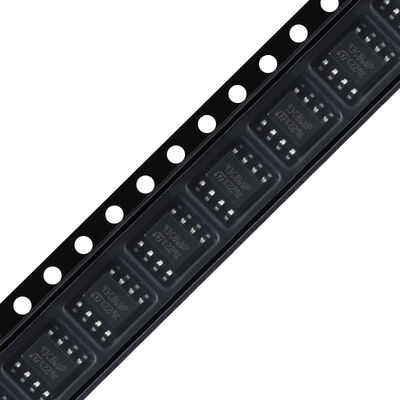

Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

M93C86-WMN6TP 16-Kbit MICROWIRE serial access EEPROM 2MHz 5ms 2.5V~5.5V

Description
Operating Temperature: -40℃~+85℃ Operating Voltage: 2.5V~5.5V
Interface Type: SPI Storage Capadity: 16Kbit
Clock Frequency (fc): 2MHz Write Cycle Time (Tw): 5ms
Highlight:

M93C86-WMN6TP 16-Kbit EEPROM 2MHz

,

MICROWIRE serial EEPROM 5.5V

,

2.5V EEPROM chip with warranty

M93C86-WMN6TP 16-Kbit MICROWIRE Serial Access EEPROM
16-Kbit MICROWIRE serial access EEPROM with 2MHz clock rate, 5ms programming time, and 2.5V~5.5V operating voltage range.
Product Family Overview
M93C86-x, M93C76-x, M93C66-x, M93C56-x, M93C46-x series - 16-Kbit, 8-Kbit, 4-Kbit, 2-Kbit and 1-Kbit (8-bit or 16-bit wide) MICROWIRE™ serial access EEPROMs
Key Features
  • Industry standard MICROWIRE™ bus
  • Single supply voltage: 2.5V to 5.5V for M93Cx6-W / 1.8V to 5.5V for M93Cx6-R
  • Dual organization: by word (x16) or byte (x8)
  • Programming instructions that work on: byte, word or entire memory
  • Self-timed programming cycle with auto-erase: 5ms
  • READY/BUSY signal during programming
  • 2MHz clock rate
  • Sequential read operation
  • Enhanced ESD/latch-up behavior
  • More than 4 million write cycles
  • More than 200-year data retention
Device Specifications
Device Number of bits Number of 8-bit bytes Number of 16-bit words
M93C86 16384 2048 1024
M93C76 8192 1024 512
M93C66 4096 512 256
M93C56 2048 256 128
M93C46 1024 128 64
Product Documentation
M93C86-WMN6TP 16-Kbit MICROWIRE serial access EEPROM 2MHz 5ms 2.5V~5.5V 0 M93C86-WMN6TP 16-Kbit MICROWIRE serial access EEPROM 2MHz 5ms 2.5V~5.5V 1 M93C86-WMN6TP 16-Kbit MICROWIRE serial access EEPROM 2MHz 5ms 2.5V~5.5V 2 M93C86-WMN6TP 16-Kbit MICROWIRE serial access EEPROM 2MHz 5ms 2.5V~5.5V 3
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
